Atlas Copco Rock Drills Boltec S Electrical Hydraulic Schematic 8999174900 EN
Size: 27.23 MB
Format: PDF
Language: English
Brand: Atlas Copco
Type of Machine: Rock Drills
Type of Manual: Hydraulic Schematic, Electrical Schematic
Model: Atlas Copco Boltec S Rock Drills
Part Number: 8999174900
Number of Pages: 129 Pages
30 USD
- Description
Description
Contents:
Air Diagram
Equipment
Control Diagram
System Layout
Trouble Shooting D101
Trouble Shooting D102
Trouble Shooting D103
Trouble Shooting D104
Trouble Shooting D105

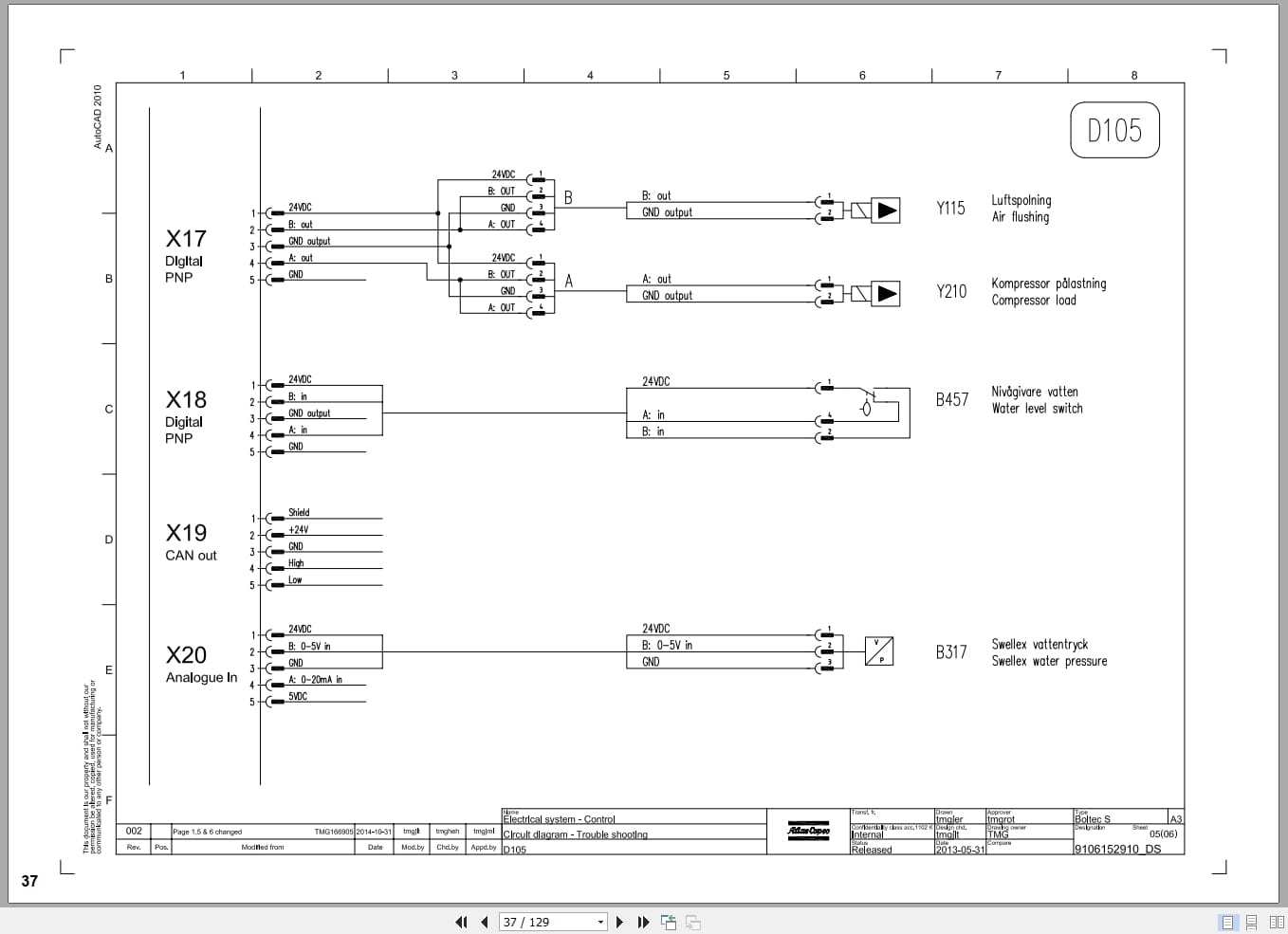

Electric Diagram
Heater Watertank
Heater Hydraulic Oil
Emergency Stop A48
Carrier Internal
Carrier External
Emergency Stop A10
Rcs95*1 Iec 400-690v Y/D
Fire Protection Diagram
Fire Suppression

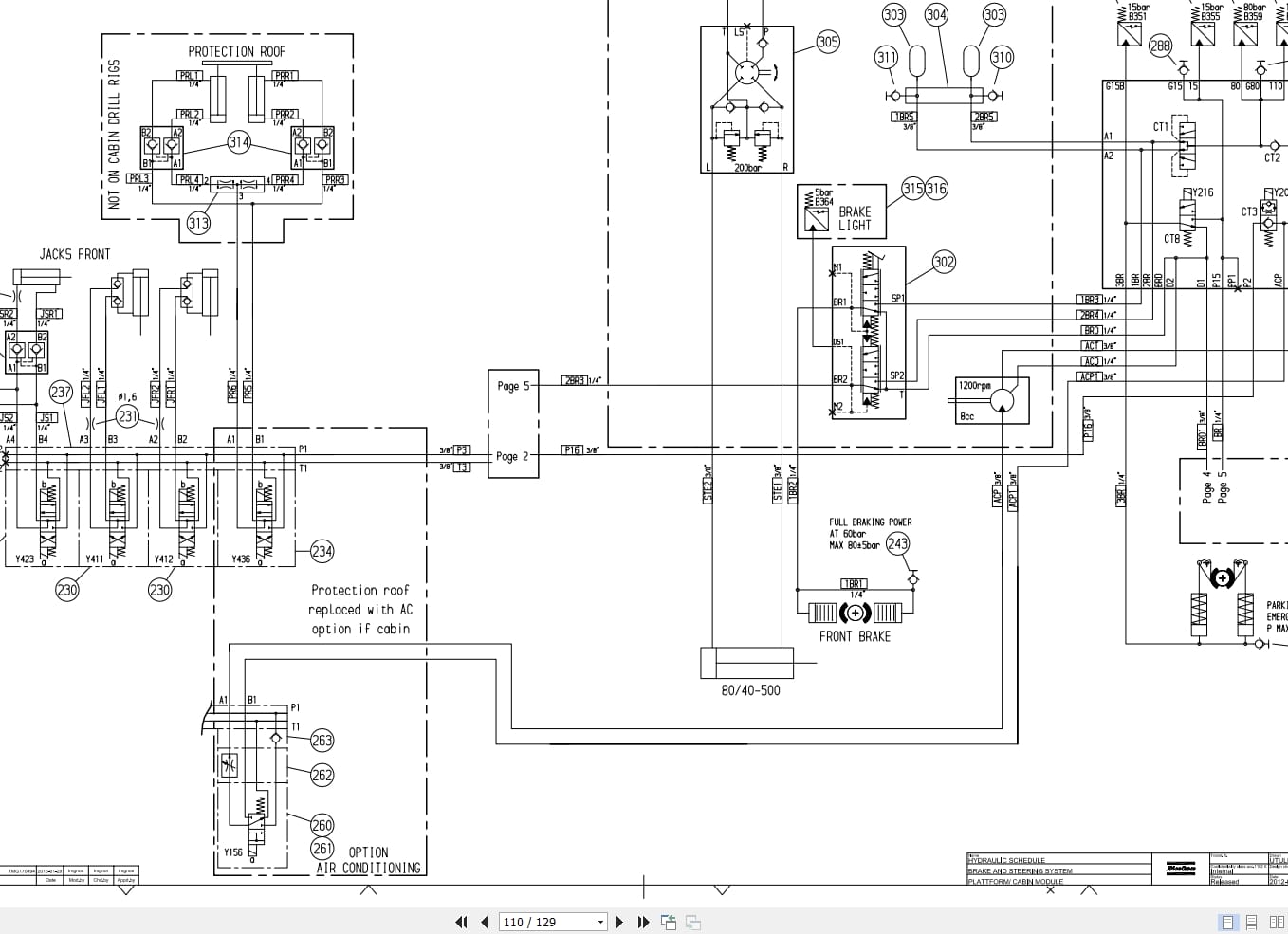

Hydraulic Diagram
Module Schematics
Overview: Dimension Drawing
Strop Instr
Dim Drawing
Water Diagram
Air/Water Diagram
