Grove Crane RT865B 86902 Parts Manual 2004

Description

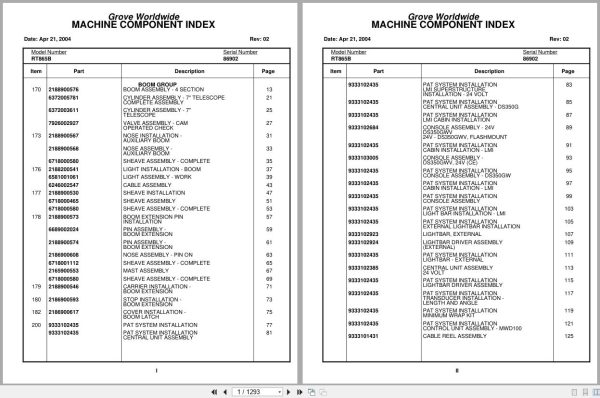

Contents:
Boom Assembly – 4 Section
Cylinder Assembly – 7″ Telescope Complete Assembly
Cylinder Assembly – 7″ Telescope
Valve Assembly – Cam Operated Check
Nose Installation – Auxiliary Boom
Nose Assembly – Auxiliary Boom
Sheave Assembly – Complete
Light Installation – Boom
Light Assembly – Work
Cable Assembly
Sheave Installation
Sheave Assembly
Boom Extension Pin Installation
Pin Assembly – Boom Extension
Nose Assembly – Pin On
Mast Assembly
Carrier Installation – Boom Extension
Stop Installation – Boom Extension
Cover Installation – Boom Latch
Pat System Installation
Pat System Installation Central Unit Assembly
Pat System Installation Lmi Superstructure
Pat System Installation Central Unit Assembly – Ds350g
Pat System Installation Lmi Cabin Installation
Console Assembly – 24v Ds350gwv
Pat System Installation Cabin Installation – Lmi
Console Assembly – Ds350gwv, 24v (Ce)
Pat System Installation Console Assembly – Ds350gw
Pat System Installation Console Assembly
Pat System Installation Light Bar Installation – Lmi
Pat System Installation External Light Bar Installation
Light Bar, External
Light Bar Driver Assembly (External)
Pat System Installation Light Bar – External

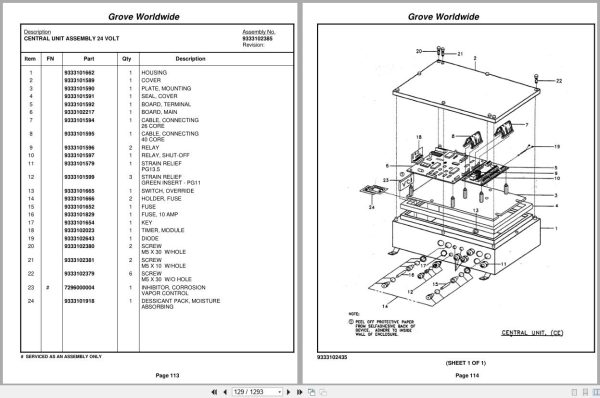

Central Unit Assembly 24 Volt
Pat System Installation Light Bar Driver Assembly
Pat System Installation Transducer Installation –
Pat System Installation Minimum Wrap Kit
Pat System Installation Control Unit Assembly – Mwd100
Cable Reel Assembly
Pat System Installation 3rd Wrap Limit Kit –
Pat System Installation 3rd Wrap Device – Special
Pat System Installation Auxiliary Boom Nose
Pat System Installation Extension Installation
Pat System Installation Tele Extension Installation
Pat System Installation Boom Extension Base Kit
Pat System Installation Pin On Snub Nose
Pat System Installation Jumper Cable Assembly
Pat System Installation Weight Assembly – A2b
Pat System Installation Decal Kit
Light Bar Installation – Lmi External
Sk931717
Indicator Installation – Boom Elevation
Angle Indicator Assembly
Valve Installation – Heater And Air Conditioner
Accumulator
Electrical Systems Installation – Superstructure
Superstructure
Plug Assembly
Sensor Installation
Cab Installation
Cab Assembly
Cab Section
Pedal Assembly – Air Throttle
Handle Installation – Lock
Motor Assembly – Modified Wiper Complete Assembly
Motor Assembly – Wiper 24 Volt
Door Assembly
Skylight Installation – Sliding
Skylight Assembly – Sliding
Column Assembly – Steering
Valve Assembly – Steering Control
Valve Assembly – Dual Brake
Valve Assembly – 6 Station Solenoid
Console Installation
Handle Installation – Control
Control Seat Installation – Single Axis
Control Seat Assembly – Single Axis
Seat Assembly
Plate Assembly
Controller Assembly – Single Axis
Harness Assembly – Seat Arm
Harness Assembly – Seat
Suspension Assembly – Seat
Covers Installation – Bottom
Flashing Lights Installation
Pedal Installation – Swing Brake
Screen Installation – Sun Open Mesh
Air Conditioning Hydraulic Oil Heater Installation
Heater Assembly
Harness Installation – Heater
Harness Assembly – Heater
Compressor Installation – Air Conditioner
Condenser Assembly – 24v
Compressor Assembly
Motor Assembly
Valve Assembly – Solenoid
Work Light Installation
Fire Extinguisher Installation
Electrical System Installation – Cab
Harness Assembly – Cab
Panel Assembly – Circuit Breaker
Harness Assembly – Circuit Breaker
Diode Assembly
Fan Installation – Cab Circulating
Fan Assembly – 24 Volt Cab Complete Assembly
Mat Installation – Floor
Acoustical Installation
Wiper/Washer Installation – Skylight
Washer Installation – Windshield
Hydraulic Lines Installation – Heater And Air Conditioner
Pedal Installation – Boom Telescope
Pedal Assembly
Hydraulic Lines Installation – Rear Steer
Hydraulic Lines Installation – Outrigger
Hydraulic Lines Installation
Valve Assembly – Relief
Valve Assembly – Residual Check
Air Lines Installation
Hydraulic Lines Installation – Telescope
Hydraulic Lines Installation – Swing
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation – Heater
Hydraulic Lines Installation – Test Panel
Valve Installation – Control – Superstructure
Valve Assembly – 3 Section
Valve Assembly – 2 Section Control
Valve Bank Assembly
Valve Assembly – Pressure Reducing Sequence
Valve Assembly – Sequence
Hydraulic Schematic – Lmi
Hydraulic Lines Installation – Cab
Hydraulic Lines Installation – Main And Auxiliary Hoist
Hydraulic Lines Installation – Steer
Sk971270
Hoist Installation – Main And Auxiliary
Hoist Assembly
Group Assembly – Right Hand
Group Assembly – Left Hand
Group Assembly – Center
Motor Assembly – Hydraulic Vane Type Complete Assembly
Brake Assembly
Valve And Plumbing Installation
Valve Assembly – Hoist Control
30g-26g Flwr
Indicator Installation – Hoist Rotation
Rotation Indicator Assembly
Mirror Installation – Hoist
Bearing Bolt Installation
Turntable And Drive Installation
Box Assembly – Swing Complete (Mod Gb-200a)
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Turntable Section
Lock Assembly – Swing
Stud Installation Not Available As Assembly
Pin Lock Installation (Turntable)
Swing Lock Installation – 360 Degree
Counterweight Installation – 13500 Lbs
Swivel Installation – Electric, Air And Hydraulic
Swivel Assembly – 12 Port Hydraulic
Swivel Assembly – 7 Port Air
Ring Assembly – Slip
Elec, Air & Hyd Swivel Assy
Swivel Assy-12 Port Hyd
Heater Valve And Filter Installation
Valve Assembly – Control
Filter Assembly – Pressure
Oil Cooler Installation
Cooler Assembly – Oil
Cover Installation – Control Valve
Cover Assembly – Valve
Door Assembly – Large
Door Assembly – Small
Lubrication Installation – Turntable Bearing
Lift Cylinder Installation
Cylinder Assembly 13.00’’ Lift
Shaft Installation – Pivot
Engine Installation – For Reference Only
Engine Assembly – With Hydraulic Heater
Converter Installation – Torque
Torque Converter Assembly
Pump Assembly – 3 Section
Pump Assembly – Two Section
Electrical System Installation – Engine
Harness Assembly – Engine
Cylinder Assembly – Throttle
Pump Assembly – Compensated
Engine Components
Heater Installation – Heater Block
Heater Modification – Engine Block
Cleaner Installation – Air
Cleaner Assembly – Air Complete Assembly
Exhaust System Installation
Radiator Installation
Hood Installation – Engine
Hood Assembly – Rear Engine
Cover Assembly
Moulding Installation – Engine Hood
Drip Pan Installation
Quick Start Installation
Sk931722
Evacuation System Installation – Engine Oil
Transmission Installation
Transmission Assembly
Transmission Assembly Flange Group
Transmission Assembly Less Power Take Off
Transmission Assembly Transmission Case And Rear
Transmission Assembly Reverse And High Shaft Group
Transmission Assembly Forward And 2nd Shaft Group
Transmission Assembly Low Speed Shaft Group
Transmission Assembly Idler Shaft Group
Transmission Assembly Output Shaft Group
Transmission Assembly High And Low Range
Transmission Assembly Solenoid Control Group
Electrical Installation – Transmission
Harness Assembly – Transmission
Filter Assembly Complete Assembly
Driveline Installation
Driveline Assembly
Cooler Installation – Oil Transmission
Axle Installation – Front
Axle Assembly – Front
Axle Assembly – Drive/Steer
Brake Chamber Assembly
Cylinder Assembly – 4″ Steer Complete Assembly
Hydraulic Lines Installation – Front Steer
Axle Installation – Rear
Axle Assembly – Rear
Cylinder Assembly – 5″ Lockout
Cylinder Assembly – 5″ Lockout Complete Assembly
Tire And Wheel Assembly
Lockout Switch Installation – Rear Axle
Valve Installation – Hydraulic
Valve Assembly – 4 Section
Valve Assembly – Inter Grated Outrigger
Valve Assembly – Check
Valve Assembly – Flow Divider Complete Assembly
Valve Assembly – Flow Divider
Stowage Installation – Outrigger Float
Float Assembly – Outrigger
Sk970009
Beam Installation – Outrigger
Sk970010
Beam Assembly – Outrigger
Cylinder Assembly – 5 1/2″ O/R Jack Complete Assembly
Cylinder Assembly – Extension
Decal Installation – Rt800b Series
Frame Assembly
Air Tank And Valve Installation
Dryer Assembly – Air (24 Volt)
Valve Assembly – Spring Brake
Valve Assembly – Modified Air
Bulkhead Assembly
Air Lines Installation – Carrier
Electrical System Installation – Carrier
Harness Assembly – Carrier
Harness Assembly – Engine Hood
Panel Assembly – Fuse And Relay – Carrier
Box Assembly – Relay
Harness Assembly – Relay Box
Hydraulic Lines Installation – Supply, Pressure And Return
Exterior Lights Installation
Light Assembly – Yellow Clearance
Light Assembly – Red Clearance
Mirror Installation
Fender Installation
Front Pintle
Hook Assembly – Pintle
Hook Installation – Rear Pintle
Hook Block Stowage And Front Deck Installation
Tray Assembly – Hook Block
Tire Inflation Kit Installation
Battery Installation
Step Installation
Sk970005
Tank Installation – Hydraulic
Reservoir Assembly – Hydraulic
Cover Assembly – 16’’ Inspection
Filter Assembly – Return
Sk970006
Deck Assembly
Sk970838
Tank And Cover Installation – Fuel
Sk970837
Tank Assembly – Fuel
Panel Assembly – Fuel Tank Decking
Cover Assembly – Side
Box Assembly – Junction
