Nichiyu Forklift RB-70 Parts Manual

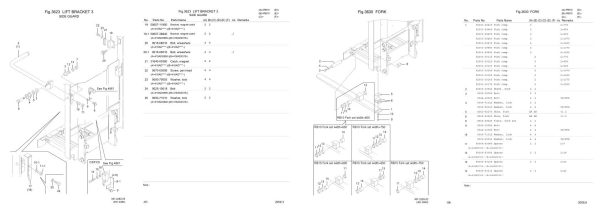

Nichiyu Forklift RB 70 Parts Manual 1

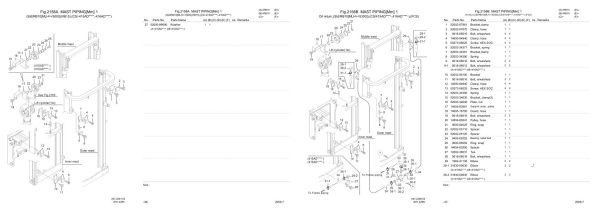

Nichiyu Forklift RB 70 Parts Manual 2
Nichiyu Forklift RB 70 Parts Manual 1
Nichiyu Forklift RB 70 Parts Manual 2
✓

Expert Support

✓

Full Speed

✓

100% Working

Nichiyu Forklift RB-70 Parts Manual

Size: 9.44 MB
Format: PDF
Language: English
Brand: Nichiyu
Type of Machine: Forklift
Type of Manual: Parts Manual
Model: RB-70
Number of Pages: 130 Pages

10 USD

Tag:
  • Description

Description

Contents:
Fig.1010 FRAME
Fig.1011 COVER 1
Fig.1012 COVER 2
Fig.1093A NAME PLATE
Fig.1093B NAME PLATE
Fig.1100 DRIVE 1
Fig.1101 DRIVE 2
Fig.1102 DRIVE 3
Fig.1110 DRIVE WHEEL
Fig.1220 LOAD WHEEL
Fig.1400 BRAKE
Fig.1500A OIL TANK
Fig.1500B OIL TANK
Fig.1510 OIL PUMP
Fig.1520 CONTROL VALVE
Fig.1550 FRAME PIPING
Fig.2053A LIFT CYLINDER[Pm]
Fig.2053B LIFT CYLINDER[Pm]
Fig.2059A MAST PIPING[Pm]
Fig.2059B MAST PIPING[Pm]
Fig.2061 OUTER MAST[Pm]
Fig.2063 INNER MAST[Pm]
Fig.2064 CHAIN WHEEL[Pm]
Fig.2070 LIFT HEIGHT SENSOR[Pm]
Fig.2152A LIFT CYLINDER(1st)[Mm]
Fig.2153A LIFT CYLINDER(2nd)[Mm]
Fig.2153B LIFT CYLINDER(2nd)[Mm]
Fig.2158A MAST PIPING[Mm] 1
Fig.2158B MAST PIPING[Mm] 1
Fig.2159 MAST PIPING[Mm] 2
Fig.2161 OUTER MAST[Mm]
Fig.2162 MIDDLE MAST[Mm]
Fig.2163 INNER MAST[Mm]
Fig.2164 CHAIN WHEEL(MAST)[Mm]
Fig.2165 CHAIN WHEEL(LIFT)[Mm]
Fig.2170 LIFT HEIGHT SENSOR[Mm]
Fig.3620A LIFT BRACKET 1
Fig.3620B LIFT BRACKET 1
Fig.3622A LIFT BRACKET 2
Fig.3622B LIFT BRACKET 2
Fig.3623 LIFT BRACKET 3
Fig.3630 FORK
Fig.3670 PALETTE LOCK 1
Fig.3671 PALETTE LOCK 2
Fig.4071 TRACTION MOTOR
Fig.4072A HYDRAULIC MOTOR
Fig.4072B HYDRAULIC MOTOR
Fig.4073A EPS MOTOR
Fig.4073B EPS MOTOR
Fig.4073C EPS MOTOR
Fig.4400 MAIN CONTROLLER 1
Fig.4401 MAIN CONTROLLER 2
Fig.4402 MAIN CONTROLLER 3
Fig.4600 CONTROL PANEL 1
Fig.4601 CONTROL PANEL 2
Fig.4602 CONTROL PANEL 3
Fig.4603 CONTROL PANEL 4
Fig.4604 CONTROL PANEL 5
Fig.4605 CONTROL PANEL 6
Fig.4800 BATTERY
Fig.4810A CHARGER(BC) 1
Fig.4810B CHARGER(BC) 1
Fig.4811A CHARGER(BC) 2
Fig.4811B CHARGER(BC) 2
Fig.4812A CHARGER(BC) 3
Fig.4812B CHARGER(BC) 3
Fig.4851 WIRE HARNESS(BODY)
Fig.4852A WIRE HARNESS(MAST)
Fig.4852B WIRE HARNESS(MAST)
Fig.4860 ELECTRIC PARTS 1
Fig.4861 ELECTRIC PARTS 2
Fig.4862 ELECTRIC PARTS 3
Fig.4881 PALETTE SENSOR
Fig.5000A ACCESSORY
Fig.5000B ACCESSORY
Fig.5000C ACCESSORY
Fig.5000D ACCESSORY
Fig.5000E ACCESSORY
Fig.5000F ACCESSORY
Fig.5000G ACCESSORY
Fig.5000H ACCESSORY
Fig.5000I ACCESSORY
Fig.5000J ACCESSORY
Fig.5000K ACCESSORY
Fig.5000L ACCESSORY
Fig.5000M ACCESSORY
Fig.5018A GUIDE ROLLER
Fig.5018B GUIDE ROLLER
Fig.5471 LIFT LIMIT
