Skyjack Articulating Booms SJ46AJ SJ51AJ Parts Manual 143920AJ 2022

Description

Contents:
Front Cover
1.0 Platfor Related Parts
1.1 Platform Railing Assembly – Side Gate
1.2 Platform Base Assembly (Ansi/Csa)
1.3 Platform Base Assembly (Ce&As)
1.4 Platform Footswitch Assembly
1.5 Platform Gate Assembly
1.6 Platform Control Console Assembly
1.7 Boom / Turret Controller Assembly (Dual Axis)
1.8 Drive / Steer Controller Assembly (Single Axis)
1.9 Riser Boom Controller Assembly (Single Axis)
1.10 Platform Terminal Strip
2.0 Boom Related Parts
2.1 Main Boom Assembly
2.2 Fly Boom Assembly
2.3 Riser Boom Assembly
2.4 Power Track Carrier Assembly
2.5 Jib Boom Assembly (46/51aj)
2.6 No Jib Boom Assembly (46a)
2.7 Rotary Actuator Hardware
2.8 Jib Lift / Platform Rotate Valve Assemblies
3.0 Cylinder Related Parts
3.1 Fly Boom Extension Cylinder Assembly
3.2 Main Boom Lift Cylinder Assembly
3.3 Riser Lift Assembly
3.4 Riser Cylinder Assembly
3.5 Master Cylinder Assembly
3.6 Slave Cylinder Assembly
3.7 Jib Cylinder Assembly
3.8 Axle Lock Cylinder Assembly
4.0 Turret Related Parts
4.1 Turret Assembly
4.2 Cowling Assembly
4.3 Counterweight Assembly
4.4 Engine Tray Assembly
4.5 Main Manifold Assembly
4.6 Brake Manifold Assembly
4.7 Rotary Manifold Assembly
4.8 Turret Swing Drive Assembly
4.9 Fuel Tank Assembly (Deutz Engine)
4.10 Fuel Tank Assembly (Gm Dual Fuel Engine)
4.11 Hydraulic Tank Assembly
4.12 High Pressure Filter Assembly
4.13 Charge Pump Filter Assembly
4.14 15 Degrees Limit Switch Assembly
4.15 Grease Line Hose Assembly
4.16 Battery Assembly
4.17 Emergency Power Unit

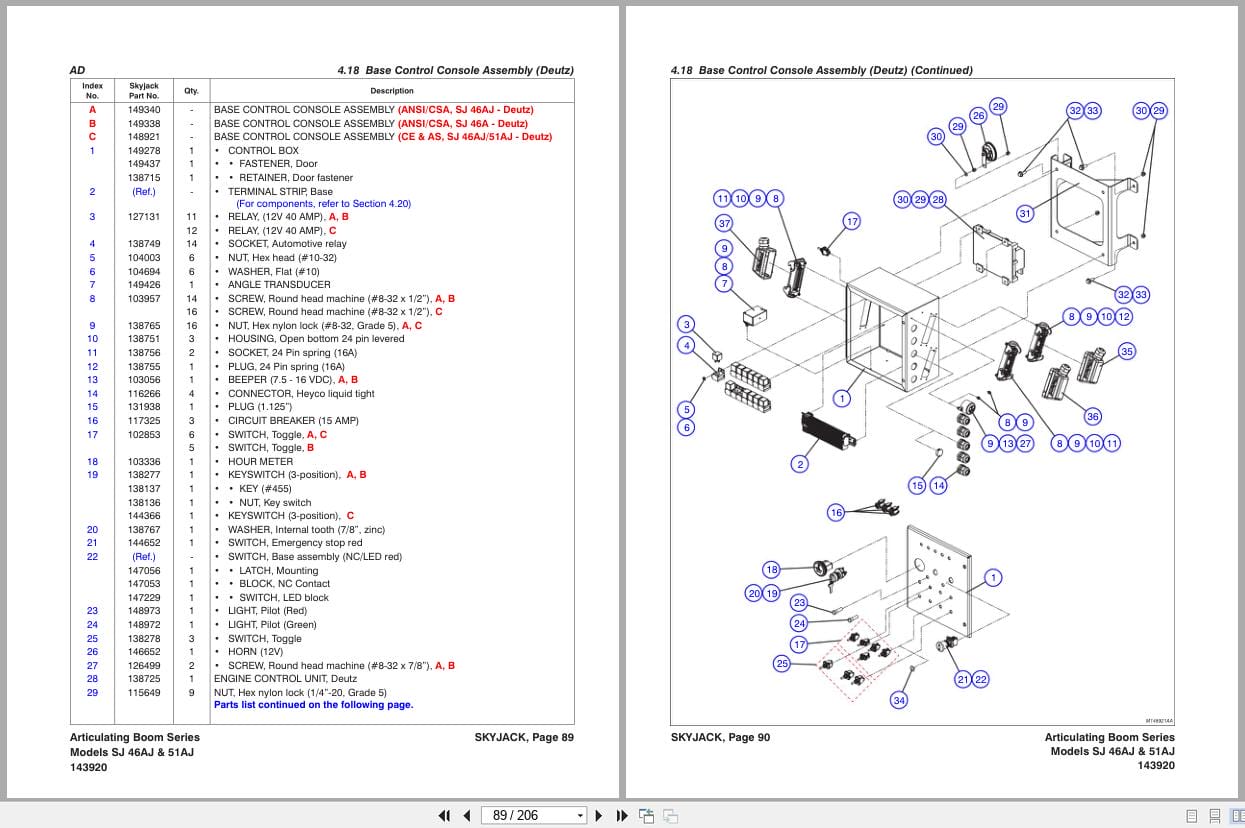

4.18 Base Control Console Assembly (Deutz)
4.19 Base Control Console Assembly (Gm)
4.19 Base Control Console Assembly (Gm)
4.20 Base Terminal Strip
5.0 Electrical Harness Related Parts
5.1 Main Electrical Harness And Fuel Level Switch Harness
5.2 Cable Harnesses
5.3 Control Cable Harnesses
5.4 Valve Harness And Limit Switches
5.5 110/220v Outlet Assembly
5.6 Ecu Harnesses
5.7 Glow Plug Harness (Deutz Diesel Engine)
5.8 Engine Interface Harness (Gm Dual Fuel Engine)
6.0 Base Related Parts
6.1 Base Assembly
6.2 Axle Assembly Hardware
6.3 Rear Axle Assembly With Gear Box
6.4 Differential Assembly – Rear Axle Assembly With Gear Box
6.5 Brakes Assembly – Rear Axle
6.6 Central Housing Assembly – Rear Axle Assembly With Gear Box
6.7 Gear Box – Rear Axle
6.8 Hydraulic Drive Motor
6.9 Front Axle Assembly
6.10 Differential Assembly – Front Axle
6.11 Central Housing Assembly – Front Axle
6.12 Steering Assembly
6.13 Trunnion Assembly – Front Axle
6.14 Axle Drive Shaft (4wd)
6.15 Propane Tank Assembly
6.16 Tires
7.0 Engine Related Parts
7.1 Engine Assembly (Deutz Diesel)
7.2 Engine Coupling Assembly
7.3 Engine Assembly (Gm Dual Fuel)
7.4 Drive And System Pump Assembly
8.0 Hose Connection Related Parts
8.1 Standard Hose Numbering System
8.2 Hydraulic Hose Connection – Boom Cylinders
8.3 Hydraulic Hose Connection – Control Compartment
8.4 Hydraulic Hose Connection – Engine Compartment
8.5 Fuel Line Hose Connection – Deutz Diesel Engine
8.6 Fuel Line Hose Connection – Gm Dual Fuel Engine
8.7 Hydraulic Hose Connection – Base And Axles
9.0 Optional Equipment
9.1 All Motion Alarm Assembly
9.2 Air Hose To Platform Option
9.3 Working Light Option – Ansi/Csa
9.4 Flashing Amber Light Option
9.5 Cold Start Option – Ansi/Csa
9.6a Artic Package Option
9.6b Artic Package Option – Artic Rotary Actuator
9.7 Diesel Scrubber Option
9.8 Generator With Oil Cooler Option (Sj46aj)
9.9 Hydraulic Hose Connection – Generator (Sj46aj)
9.10 Generator With Oil Cooler Option (Sj51aj)
9.11 Hydraulic Hose Connection – Generator (Sj51aj)
9.12 Generator Wiring
9.13 Cooler Wiring
9.14 Glazier Package Assembly
10.0 Labels
10.1 Label Kits
10.2 Labels – Boom (Platform Control Console)
10.3 Labels – Boom (Front)
10.4 Labels – Boom (Engine Side)
10.5 Labels – Boom (Control Side)
10.6 Labels – Compartments (Engine)
10.7 Labels – Compartments (Control)
10.8 Labels – Boom (Railing)
10.9 Labels – Fuel
11.0 Tables
11.1 Boom Fluids Table
11.2 Boom Grease Locations – Axle Grease Table
11.3 Boom Grease Locations – Gear Grease Table
