Skyjack Telehandler SJ643TH SJ843TH Service Manual 190128AC 2023

Description

Contents:
Telehandler Definition
Purpose of Equipment
Use of Equipment
Manuals
Operator
Service Policy and Warranty
Optional Accessories
Scope of this Manual
Operator Safety Reminders
Electrocution Hazard
Safety Precautions
Maintenance and Inspection Schedule
Owner’s Annual Inspection Record
Replacement Parts
Maintenance and Service Safety Tips
Jobsite Inspection
Hydraulic System & Component Maintenance and Repair
Maintenance Hints
About this Section
Service Bulletins
Maintenance and Inspection
Maintenance Instructions
1.1 Scheduled Maintenance Inspections

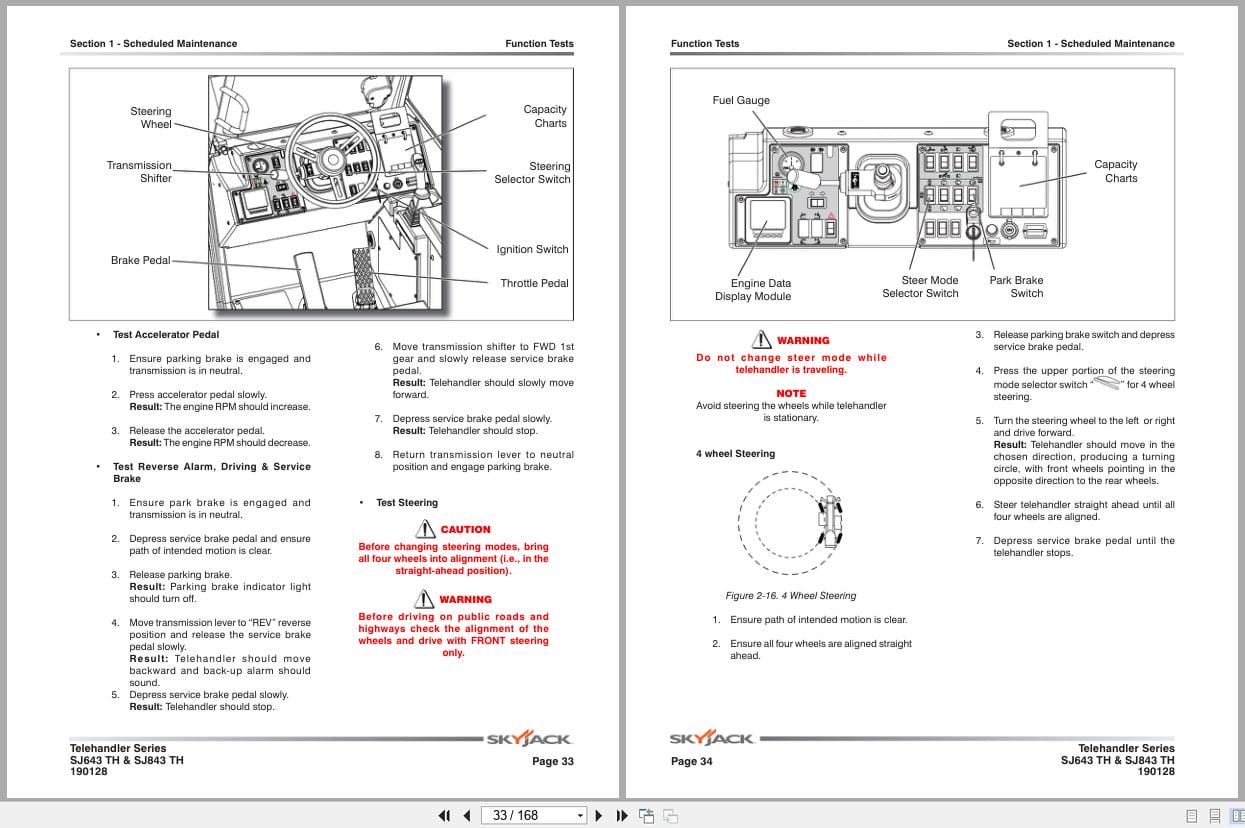

1.2 Function Tests
Table 2.1 Standard & Optional Features
Table 2.2 Specifications & Features
Table 2.3 Tire/Wheel Specifications
Table 2.4 Recommended Fluids/Lubrication
Table 2.5 Pressure Settings
Table 2.6 Standard Hose Numbering System
Table 2.7 Torque Specifications for Fasteners (US)
Table 2.8 Torque Specifications for Fasteners (Metric)
3.1 Electrical Symbol Chart
3.2 Hydraulic Symbol Chart
3.3 Electrical Schematic Parts List
3.4 Hydraulic Schematic Parts List
3.5 Hydraulic Pump and Return Filter Ports Identification
3.6 Steering Control Unit Ports Identification
3.7 Service Brake Actuator (Brake Pedal) Ports Identification
3.8 Auxiliary Block Ports Identification
3.9 Joystick Port Identifications
3.10 Optional Reserve Brake Manifold Ports Identification
3.11 Major Components Identification and Location
3.12 Main Control Valve Port Identification
3.13 Enclosed Cab Harness & Wiring Diagram
3.14 Glow Plug Harness & Wiring Diagram
3.15 Road Lights Harness & Wiring Diagram
3.16 Work Lights Harness & Wiring Diagram
3.17 Boom Lights Harness & Wiring Diagram
3.18 Beacon Light Harness & Wiring Diagram
3.19 Console Harness and Layout
3.20 Console Harness Wiring Diagram
3.21 Engine Harness
3.22 Engine Harness Wiring Diagram
3.23 Chassis Harness
3.24 Chassis Harness Wiring Diagram

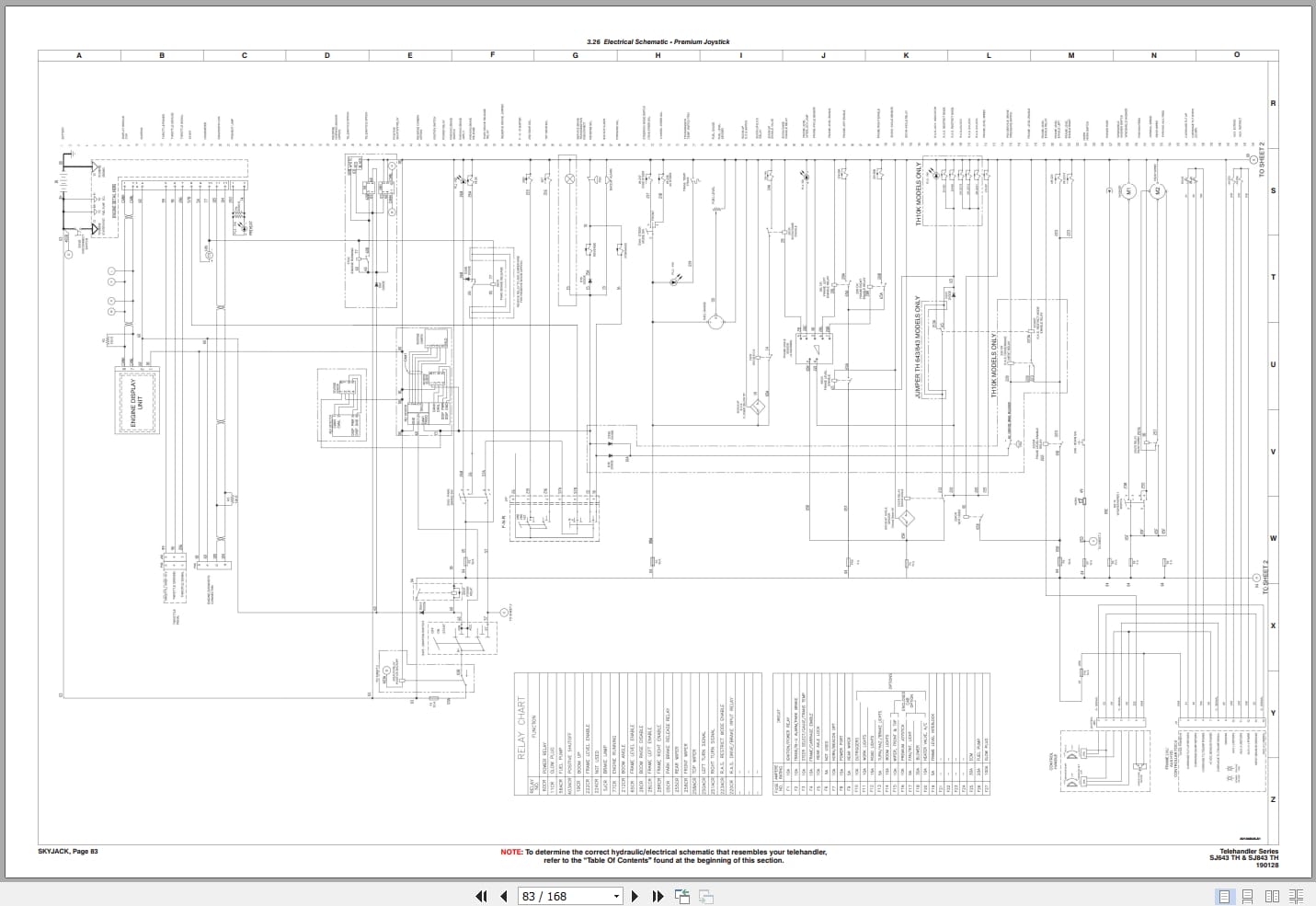

3.25 Electrical Schematic
3.26 Electrical Schematic – Premium Joystick
3.27 Hydraulic Schematic

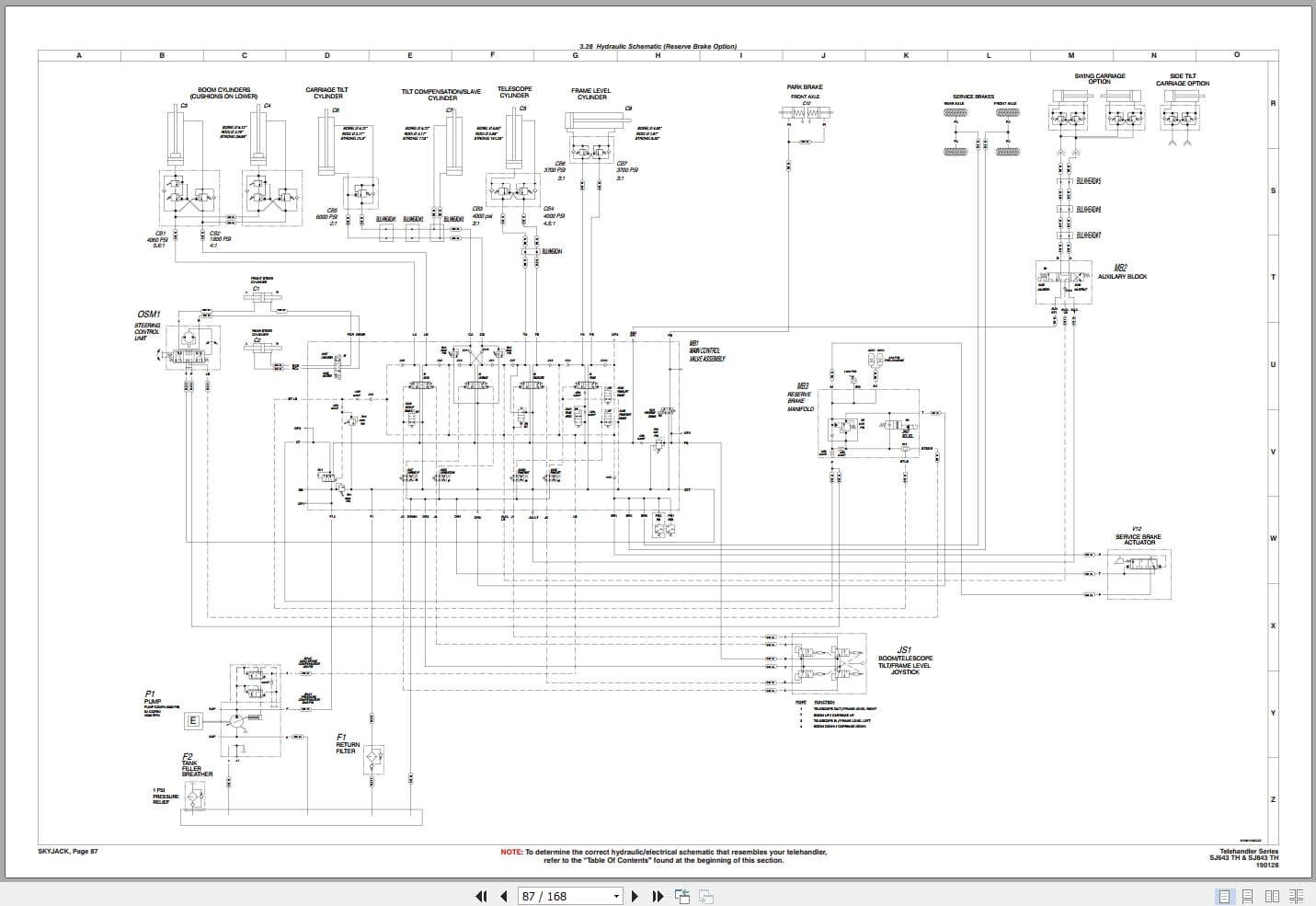

3.28 Hydraulic Schematic (Reserve Brake Option)
3.29 Hydraulic Schematic – Premium Joystick
3.30 Hydraulic Schematic (Reserve Brake Option) – Premium Joystick
Introduction
4.1-1 Engine Will Not Crank
4.1-2 Engine Cranks But Will Not Run
4.1-3 All Electrical Controls Inoperative (park brake will not release, all other dash switches and lights inoperative, joystick electrical switches inoperative, etc.)
4.1-4 Park Brake Will Not Release (transmission remains in neutral regardless of shift lever position)
4.1-5 Park Brake Will Not Release (transmission will engage)
4.1-6 Transmission Will Not Engage (park brake will release)
4.1-7 No Forward Drive.
4.1-8 No Reverse Drive
4.1-9 No 1st Speed Range
4.1-10 No 2nd Speed Range
4.1-11 No Boom Up, Front Steer Mode Only.
4.1-12 Front Steer Mode Only
4.1-13 No 4W (Round) Steer Mode
4.1-14 No Crab Steer Mode
4.1-15 No Boom Up, Frame Level Operates Normally
4.1-16 No Boom Up and No Frame Level
4.1-17 Frame Will Not Tilt Over 40° With Boom Below 40°
4.1-18 No Frame Level
4.1-19 No Frame Level With Boom Angle Below 40°, Works Above 40°
4.1-20 No Frame Level With Boom Angle Above 40°, Works Below 40°
4.1-21 No Frame Level Left
4.1-22 No Frame Level Right
4.1-23 Function Does Not Switch from Telescope In/Out To Frame Level Left/Right With Frame Level Switch SW5 Depressed or from Boom Raise To Carriage Tilt Up With Carriage Tilt Switch SW6 Depressed
4.1-24 Function Does Not Switch from Telescope In/Out To Frame Level Left/Right With Frame Level Switch SW5 Depressed
4.1-25 Function Does Not Switch from Boom Raise/Lower To Carriage Tilt Up/Down With Carriage Tilt Switch SW6 Depressed
4.2-1 All Controls inoperative
4.2-2 All Boom Functions Inoperative.
4.2-3 No Boom Raise
4.2-4 No Boom Lower
4.2-5 No Telescope Out
4.2-6 No Telescope Retract
4.2-7 No Carriage Tilt Up
4.2-8 No carriage Tilt Down
4.2-9 No Frame Level Right
4.2-10 No Frame Level Left
4.2-11 No Aux. functions
4.2-12 Hard or No Steering
4.2-13 Park Brake will not Release
4.2-14 Park Brake Will Not Engage
4.2-15 Service Brake Will Not Engage
General
Safety and Workmanship
Engine and Transmission
5.1-1 Check Engine Oil Level
5.1-2 Check Coolant Level, Radiator and Hoses
5.1-3 Check Transmission Fluid Level
5.1-4 Check Air Cleaner Restriction and Filter Elements
5.1-5 Check Hydraulic Oil Level
5.1-6 Drain Fuel/Water Separator
5.1-7 Fuel Tank
5.1-8 Check Parking Brake
5.1-9 Check Tire Pressure and Condition
5.1-10 Check Seat Belt and Mounting Hardware
5.1-11 Check Windshield Washer Fluid Level and Wiper Condition
5.2-1 Grease Axle Pivot Bearings and King Pins
5.2-2 Grease Drive Shaft U-joints and slip joints
5.2-3 Check Fork Pins
5.2-4 Grease Frame Level Pivot Bushings
5.2-5 Grease Boom Pivot and Boom Cylinders
5.2-6 Grease Bottom Front & Top Rear Slide Pads
5.3-1 Check Lug Nut Torque
5.3-2 Check Oil Level in Axle Differential Planetary wheel Ends
5.3-3 Check Oil level in Axle differentials
5.3-4 Replace Engine Oil and Filter
5.3-5 Change Engine Fuel filter and Fuel/Water Separator
5.3-6 Clean Hydraulic Tank Breather
5.3-7 Torque Axle Mounting Bolts
5.3-8 Inspect Boom Chains
5.3-9 Check Boom Slide Pad Clearances
5.3-10 Check Boom Chains Tension
5.3-11 Chain Tension Adjustment
5.4-1 Change Hydraulic Oil Filter
5.4-2 Change Hydraulic Oil and Clean Hydraulic Tank
5.4-3 Change Axle Differential Oil
5.4-4 Change Axle Planetary Oil
5.4-5 Change Engine Coolant
5.4-6 Change Transmission Oil and Filter
5.4-7 Inspect Boom Chains
5.5-1 Boom Hoses and Sheaves Replacement
5.5-1-1 Remove Hose Sheaves
5.5-1-2 Remove Boom Hoses
5.5-2-2 Inspect Boom Hydraulic Hoses
5.5-2-3 Install Hose Sheaves
5.5-2-4 Install Boom Hydraulic Hoses
5.5-3 Boom Chains Replacement
5.5-3-1 Remove Extend Chain
5.5-3-2 Install Extend Chain
5.5-3-3 Remove Retract Chain
5.5-3-4 Install Retract Chain
5.5-5 Slide Pads Replacement Procedure
5.5-5-1 Remove Slide Pads
5.5-5-2 Install Slide Pads
5.5-6 TH Boom Mount Shimming
5.5-7 Hydraulic Pressure Test Procedure
5.5-7-1 Load Sense Compensator Pressure
5.5-7-2 System Pressure (Compensator Pressure)
5.5-7-3 Steering Pressure
5.5-7-4 Service Brake Pressure
5.5-7-5 Pilot Pressure
5.5-7-6 RV1 Safety Relief Pressure
5.5-8 Hydraulic Pump Testing Procedure
5.5-9 T12000 Modulation
5.5-10 Deutz Fault Codes
5.5-11 Starter Replacement Procedure
5.5-12 Bleeding Hydraulic Circuits
5.6-1 Tilt Switch Replacement
5.6-2 Reprogramming Existing Tilt Switch
5.6-3 Test and Verify Tilt Circuit
