Name: Yale Forklift A961E MR14 MR16 Parts Manual 550273145 04-2024
SKU: 433220
Price: 50.00 USD
Availability: InStock

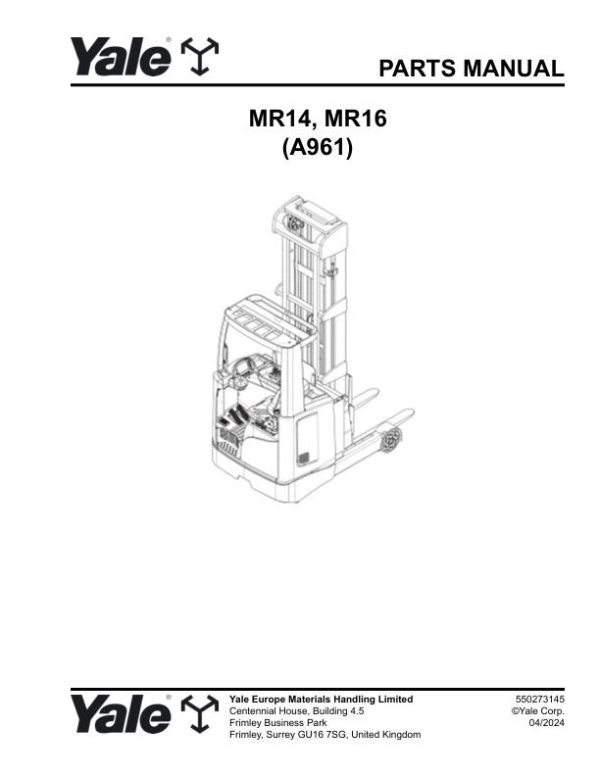

Yale Forklift A961E MR14 MR16 Parts Manual 550273145 04 2024

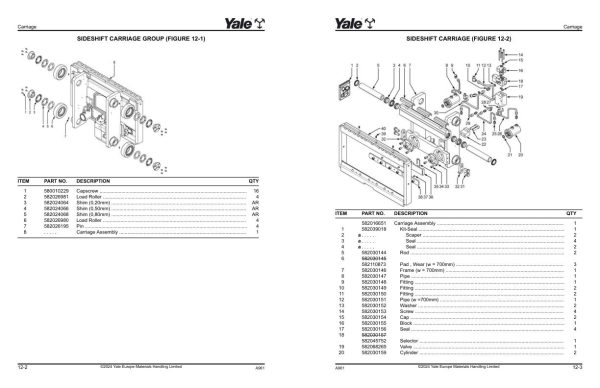

Yale Forklift A961E MR14 MR16 Parts Manual 550273145 04 2024 1

✓

Expert Support

✓

Full Speed

✓

100% Working

Yale Forklift A961E MR14 MR16 Parts Manual 550273145 04-2024

Size: 9.96 MB

Format: PDF

Language: English

Brand: Yale

Type of Machine: Forklift

Type of Manual: Parts Manual

Model: MR14, MR16 A961

Part Number: 550273145

Publication Date: 04-2024

Number of Pages: 266 Pages

50 USD

Tag: Yale Forklift

Description

Description

Contents:
Frame
FRAME COMPONENTS
STABILIZERS
BATTERY COMPARTMENT WITH VERTICAL EXTRACTION
BATTERY COMPARTMENT WITH LATERAL EXTRACTION OPTION
BATTERY SENSOR
OVERHEAD GUARD
PANORAMIC MIRROR OPTION
FRAME LABELS
WARRANTY LABEL
SUPPORT CLIPBOARD OPTION
OVERHEAD GUARD HIGH VISIBILITY – OPTION
MULTIPURPOSE BAR OPTION
PROTECTION LEXAN SCREEN OPTION
PROTECTION METAL GRID OPTION
Operator Compartment
SEAT
DASHBOARD AND PANELS
FLOORPLATE AND MOTOR COVER
DISPLAY WIRE HARNESS
ARMREST WITH MINI LEVERS MULTIFUNCTION
ARMREST WITH JOYSTICK OPTION
JOYSTICK CONTROL OPTION
ARMREST WIRE HARNESS
OPERATOR COMPARTMENT LABELS
BASIC DISPLAY
PREMIUM DISPLAY OPTION
ELECTRICAL SYSTEM
RELAY AND FUSES
FAN
WORK LIGHT – FRONT SIDE
FLASHING BEACON OPTION
BACK-UP ALARM OPTION
CONTROL MODULE WITH SOFTWARE UPLOADED
UTILITY PANEL WIRE HARNESS
MAIN WIRE HARNESS
POWER CABLES
BATTERY CONNECTOR
DC/DC CONVERTERS OPTION
FRONT AND REAR PEDESTRIAN AWARENESS LIGHT OPTION
REAR WORK LIGHTS FORKS SIDE – OPTION
CONTACTOR 48V
CONTROL PANEL 350A/450A
CONTROL PANEL 350A/350A – 350A/450A
SIDE PEDESTRIAN AWARENESS LIGHTS OPTION
DRIVE UNIT
DRIVE UNIT LABEL
DRIVE UNIT
KIT-GEAR AND PINION OPTION
GEARBOX
TRACTION MOTOR
STEERING SYSTEM
STEERING COLUMN
STEERING UNIT
STEERING MOTOR
BRAKE/ACCELERATOR SYSTEM
MOTOR BRAKE
MOTOR BRAKE
PEDALS
Load Wheel
LOAD WHEEL
LOAD WHEELS GROUP
HYDRAULIC SYSTEM
LIFTING UNIT
LIFTING MOTOR
LIFTING PUMP
HYDRAULIC TANK
HYDRAULIC HOSES
FILTER
LIFTING MOTOR 9.9KW R1.4 – R1.6 EU MODELS STANDARD LIFT SPEED ONLY
HYDRAULIC HOSES
MAST TROLLEY
MAST TROLLEY WIRE HARNESS
MAST TROLLEY LABELS
HOSES CHAIN GUIDE
CONTROL VALVE
HYDRAULIC CONTROL VALVE AND CYLINDER
CONTROL VALVE
POTENTIOMETER
HOSES CHAIN GUIDE
MAST TROLLEY
Mast-Three Stage Full Free-Lift
MAST LABELS
OUTER MAST
INTERMEDIATE MAST
INNER MAST
MAIN LIFT CYLINDERS
MAIN LIFT CHAINS
FREE LIFT CYLINDER AND CHAIN
HEIGHT INDICATOR OPTION
HEIGHT INDICATOR WIRE HARNESS OPTION
MAST BEARING MARKING
FREE LIFT DAMPENING MAST WITHOUT OPTIONS
MAST HYDRAULIC SYSTEM
WEIGHTING DEVICE LOAD CELL OPTION
MAST ELECTRICAL SYSTEM
MULTIPURPOSE BAR OPTION
CYLINDERS
TILTING CYLINDER ON SIDESHIFT CARRIAGE
MAST TROLLEY CYLINDER
FREE LIFT CYLINDER
MAIN LIFT CYLINDER
Carriage
SIDESHIFT CARRIAGE GROUP
SIDESHIFT CARRIAGE
SIDESHIFT CARRIAGE WITH ADDITIONAL HYDRAULIC FUNCTION
SIDESHIFT AUTO CENTERING OPTION
FORKS AND LOAD BACKREST
WITHOUT LOAD BACKREST
JUNCTION BOX CONTROL CARD OPTION
LOAD BACKREST
FORKS
WIRELESS MANAGEMENT SYSTEM
BUZZER ASSEMBLY OPTION
ID CARD READER OPTION
ID CARD READER LABEL OPTION
TELEMETRY WIRE HARNESS OPTION
TELEMETRY OPTION
TELEMETRY LABEL OPTION
ACCESSORIES
WRENCH FOR HYDRAULIC FITTING OPTION
HYDRAULIC FITTING PLUGS OPTION
HYDRAULIC FITTING KITS OPTION
CYLINDER SLEEVE TOOL FOR GLAND WITH SEALS – OPTION
CHAIN OPENER TOOL OPTION
NUMERICAL INDEX
USER SUPPORT INFORMATION
