Name: ZF Gear-shifting 8 EP 320 to 8 EP 470 A Repair Instructions
SKU: 445198
Price: 10.00 USD
Availability: InStock

ZF Gear shifting 8 EP 320 to 8 EP 470 A Repair Instructions 1

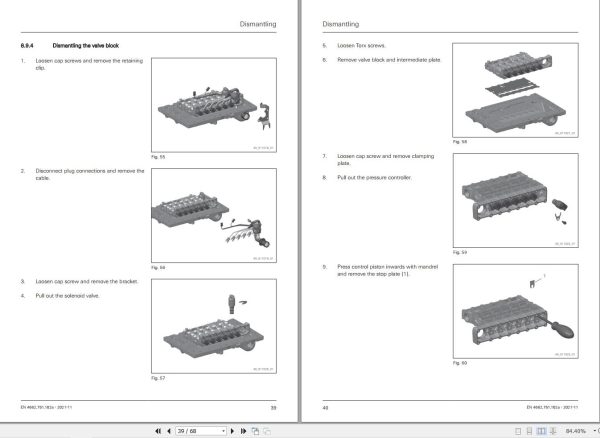

ZF Gear shifting 8 EP 320 to 8 EP 470 A Repair Instructions 2

✓

Expert Support

✓

Full Speed

✓

100% Working

ZF Gear-shifting 8 EP 320 to 8 EP 470 A Repair Instructions

Size: 7.98 MB

Format: PDF

Language: English

Brand: ZF

Type of Machine: Gear-shifting

Type of Manual: Repair Instructions

Model: ZF 8Â EPÂ 320, 8Â EPÂ 320Â A, 8Â EPÂ 370, 8Â EPÂ 370Â A, 8Â EPÂ 420, 8Â EPÂ 420Â A, 8Â EPÂ 470, 8Â EPÂ 470Â A

Number of Pages: 68 Pages

10 USD

Tag: ZF Gear-shifting Manual

Description

Description

Contents:
1 Preface
1.1 Document overview
2 Safety
2.1 Signal words and symbols
2.2 General safety instructions
2.3 Product-specific safety instructions
3 Notes on Repairs and Assembly
3.1 General Notes
3.2 Cleaning the ZF product
3.3 Dismantling the ZF product
3.4 Assembling the ZF product
3.5 Cleaning parts
3.6 Reusing parts
3.7 Replacing parts
3.8 Reworking parts
4 Technical Data
4.1 Oil
4.2 Type plate
6 Tightening Torques
7 Workshop Equipment
7.1Â Special tools
7.2 Standard tools and fixtures
7.3Â Operating supplies and auxiliary materials
8 Dismantling
8.1 Mounting transmission on assembly truck
8.2 Draining oil
8.3 Removing the axle drive LKV
8.4 Removing the oil level indicator
8.5 Removing the breather
8.6 Removing the temperature sensors
8.7 Removing the pressure control valve
8.8 Removing the speed sensor (n4 output)
8.9 Removing and dismantling shift system
8.10 Removing the covers on the power take off
8.11 Removing the emergency steering pump
8.12 Removing output flanges
9 Assembly
9.1 Installing output flanges
9.2 Installing the covers on the power take off
9.3 Mounting the emergency steering pump
9.4 Assembling and installing shift system
9.5 Mounting the speed sensor (n4 output)
9.6 Installing the pressure control valve
9.7 Installing the temperature sensors
9.8 Mounting the breather
9.9 Installing the oil level indicator
9.10 Mounting the axle drive LKV.
9.11 Adding oil
10 Annex
10.1 Overview of revisions
ZF Friedrichshafen AG, www.zf.com
