Name: AGCO Allis Disk Harrow 2100 2200H.D. 2300 2600 3000 Parts Catalog 79001626
SKU: 441145
Availability: InStock

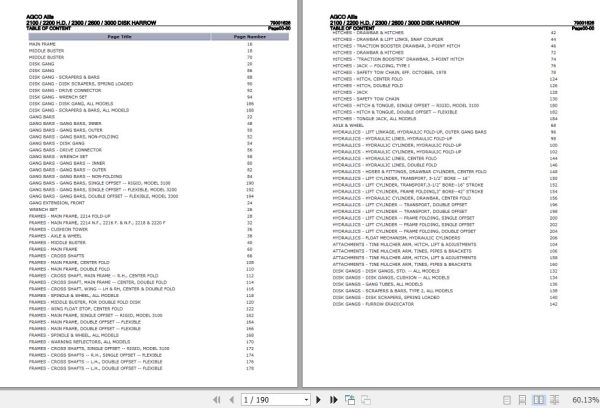

AGCO Allis Disk Harrow 2100 2200H.D. 2300 2600 3000 Parts Catalog 79001626 1

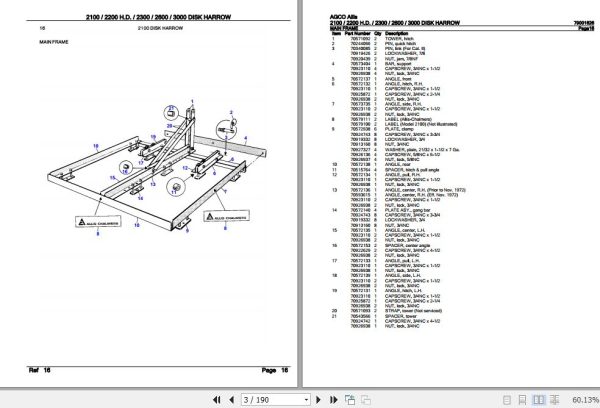

AGCO Allis Disk Harrow 2100 2200H.D. 2300 2600 3000 Parts Catalog 79001626 2

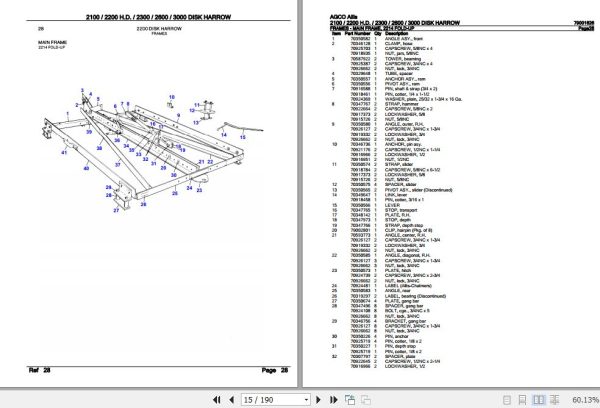

AGCO Allis Disk Harrow 2100 2200H.D. 2300 2600 3000 Parts Catalog 79001626 3

✓

Expert Support

✓

Full Speed

✓

100% Working

AGCO Allis Disk Harrow 2100 2200H.D. 2300 2600 3000 Parts Catalog 79001626

Size: 6.65 MB

Format: PDF

Language: English

Brand: AGCO Allis

Type of Machine: Tillage, Disk Harrow

Type of Manual: Parts Catalog

Model:

AGCO Allis 2100 Disk Harrow

AGCO Allis 2200 H.D. Disk Harrow

AGCO Allis 2300 Disk Harrow

AGCO Allis 2600 Disk Harrow

AGCO Allis 3000 Disk Harrow

Part Number: 79001626

Number of Pages: 190 Pages

10 USD

Tag: AGCO Allis Manual

Description

Description

Contents:
Main Frame
Middle Buster
Disk Gang
Gang Bars
Gang Extension, Front
Wrench Set
Frames – Main Frame, 2214 Fold-Up
Frames – Main Frame, 2214 N.F., 2216 F. & N.F., 2218 & 2220 F
Frames – Cushion Tower
Frames – Axle & Wheel
Frames – Middle Buster
Hitches – Drawbar & Hitches
Hitches – Drawbar & Lift Links, Snap Coupler
Hitches – Traction Booster Drawbar, 3-Point Hitch
Gang Bars – Gang Bars, Inner
Gang Bars – Gang Bars, Outer
Gang Bars – Gang Bars, Non-Folding
Gang Bars – Disk Gang
Gang Bars – Drive Connector
Gang Bars – Wrench Set
Frames – Main Frame
Frames – Cross Shafts
Axle & Wheel
Hitches – Traction Booster Drawbar, 3-Point Hitch
Hitches – Jack — Folding, Type I
Hitches – Safety Tow Chain, Eff. October, 1978
Gang Bars – Gang Bars — Inner
Gang Bars – Gang Bars — Outer
Gang Bars – Gang Bars — Non-Folding
Disk Gang – Scrapers & Bars
Disk Gang – Disk Scrapers, Spring Loaded
Disk Gang – Drive Connector
Disk Gang – Wrench Set
Hydraulics – Lift Linkage, Hydraulic Fold-Up, Outer Gang Bars
Hydraulics – Hydraulic Lines, Hydraulic Fold-Up
Hydraulics – Hydraulic Cylinder, Hydraulic Fold-Up
Attachments – Tine Mulcher Arm, Hitch, Lift & Adjustments
Attachments – Tine Mulcher Arm, Tines, Pipes & Brackets
Frames – Main Frame, Center Fold
Frames – Main Frame, Double Fold
Frames – Cross Shaft, Main Frame — R.H., Center Fold
Frames – Cross Shaft, Main Frame — Center, Double Fold
Frames – Cross Shaft, Wing — Lh & Rh, Center & Double Fold
Frames – Spindle & Wheel, All Models
Frames – Middle Buster, For Double Fold Disk
Frames – Wing Float Stop, Center Fold
Hitches – Hitch, Center Fold
Hitches – Hitch, Double Fold
Hitches – Jack
Hitches – Safety Tow Chain
Disk Gangs – Disk Gangs, Std. — All Models
Disk Gangs – Disk Gangs, Cushion — All Models
Disk Gangs – Gang Tubes, All Models
Disk Gangs – Scrapers & Bars, Type 2, All Models
Disk Gangs – Disk Scrapers, Spring Loaded
Disk Gangs – Furrow Eradicator
Hydraulics – Hydraulic Lines, Center Fold
Hydraulics – Hydraulic Lines, Double Fold
Hydraulics – Hoses & Fittings, Drawbar Cylinder, Center Fold
Hydraulics – Lift Cylinder, Transport, 3-1 2” Bore — 16”
Hydraulics – Lift Cylinder, Transport,3-1 2 Bore–16 Stroke
Hydraulics – Lift Cylinder, Frame Folding,3 Bore–42 Stroke
Hydraulics – Hydraulic Cylinder, Drawbar, Center Fold
Frames – Main Frame, Single Offset — Rigid, Model 3100
Frames – Main Frame, Double Offset — Flexible
Frames – Warning Reflectors, All Models
Frames – Cross Shafts, Single Offset — Rigid, Model 3100
Frames – Cross Shafts — R.H., Single Offset — Flexible
Frames – Cross Shafts — L.H., Double Offset — Flexible
Hitches – Hitch & Tongue, Single Offset — Rigid, Model 3100
Hitches – Hitch & Tongue, Double Offset — Flexible
Hitches – Tongue Jack, All Models
Disk Gang – Disk Gang, All Models
Disk Gang – Scrapers & Bars, All Models
Gang Bars – Gang Bars, Single Offset — Rigid, Model 3100
Gang Bars – Gang Bars, Single Offset — Flexible, Model 3200
Gang Bars – Gang Bars, Double Offset — Flexible, Model 3300
Hydraulics – Lift Cylinder — Transport, Double Offset
Hydraulics – Lift Cylinder — Frame Folding, Single Offset
Hydraulics – Lift Cylinder — Frame Folding, Double Offset
Hydraulics – Float Mechanism, Hydraulic Cylinders
