Name: AGCO Allis Field Cultivator 1000 1200 1250 1300 1350 Parts Catalog 79005792
SKU: 441148
Price: 10.00 USD
Availability: InStock

AGCO Allis Field Cultivator 1000 1200 1250 1300 1350 Parts Catalog 79005792 1

AGCO Allis Field Cultivator 1000 1200 1250 1300 1350 Parts Catalog 79005792 2

AGCO Allis Field Cultivator 1000 1200 1250 1300 1350 Parts Catalog 79005792 3

✓

Expert Support

✓

Full Speed

✓

100% Working

AGCO Allis Field Cultivator 1000 1200 1250 1300 1350 Parts Catalog 79005792

Size: 6.75 MB

Format: PDF

Language: English

Brand: AGCO Allis

Type of Machine: Tillage, Field Cultivator

Type of Manual: Parts Catalog

Model: 1000, 1200, 1250, 1300, 1350

Part Number: 79005792

Number of Pages: 182 Pages

10$ USD

Tag: AGCO Allis Manual

Description

Description

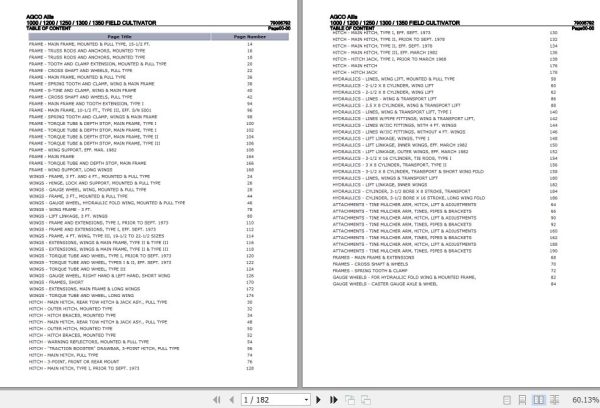

Contents:
Frame – Main Frame, Mounted & Pull Type, 15-1 2 Ft.
Frame – Truss Rods And Anchors, Mounted Type
Frame – Tooth And Clamp Extension, Mounted & Pull Type
Frame – Cross Shaft And Wheels, Pull Type
Wings – Frame, 3 Ft. And 4 Ft., Mounted & Pull Type
Wings – Hinge, Lock And Support, Mounted & Pull Type
Wings – Gauge Wheel, Wing, Mounted & Pull Type

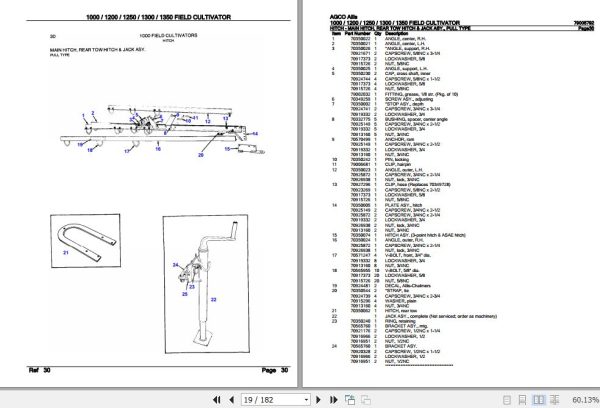

Hitch – Main Hitch, Rear Tow Hitch & Jack Asy., Pull Type
Hitch – Outer Hitch, Mounted Type
Hitch – Hitch Braces, Mounted Type
Frame – Main Frame, Mounted & Pull Type
Frame – Spring Tooth And Clamp, Wing & Main Frame
Frame – S-Tine And Clamp, Wing & Main Frame
Wings – Frame, 3 Ft., Mounted & Pull Type
Wings – Gauge Wheel, Hydraulic Fold Wing, Mounted & Pull Type
Hitch – Warning Reflectors, Mounted & Pull Type
Hitch – Traction Booster Drawbar, 3-Point Hitch, Pull Type
Hydraulics – Lines, Wing Lift, Mounted & Pull Type
Hydraulics – 2-1 2 X 8 Cylinder, Wing Lift
Attachments – Tine Mulcher Arm, Hitch, Lift & Adjustments
Attachments – Tine Mulcher Arm, Tines, Pipes & Brackets
Frames – Main Frame & Extensions
Frames – Cross Shaft & Wheels
Frames – Spring Tooth & Clamp
Hitch – Main Hitch, Pull Type
Hitch – 3-Point, Front Or Rear Mount
Wings – Wing Frame – 3 Ft.
Wings – Lift Linkage, 3 Ft. Wings
Gauge Wheels – For Hydraulic Fold Wing & Mounted Frame,
Gauge Wheels – Caster Gauge Axle & Wheel
Hydraulics – Lines – Wing & Transport Lift
Hydraulics – 2.5 X 8 Cylinder, Wing & Transport Lift
Frame – Main Frame And Tooth Extension, Type I
Frame – Main Frame, 10-1 2 Ft., Type Iii, Eff. S N 5001
Frame – Spring Tooth And Clamp, Wings & Main Frame
Frame – Torque Tube & Depth Stop, Main Frame, Type I
Frame – Torque Tube & Depth Stop, Main Frame, Type Ii
Frame – Torque Tube & Depth Stop, Main Frame, Type Iii
Frame – Wing Support, Eff. Mar. 1982
Wings – Frame And Extensions, Type I, Prior To Sept. 1973
Wings – Frame And Extensions, Type I, Eff. Sept. 1973
Wings – Frame, 4 Ft. Wing, Type Iii, 19-1 2 To 22-1 2 Sizes
Wings – Extensions, Wings & Main Frame, Type Ii & Type Iii
Wings – Torque Tube And Wheel, Type I, Prior To Sept. 1973
Wings – Torque Tube And Wheel, Types I & Ii, Eff. Sept. 1973
Wings – Torque Tube And Wheel, Type Iii
Wings – Gauge Wheel, Right Hand & Left Hand, Short Wing
Hitch – Main Hitch, Type I, Prior To Sept. 1973
Hitch – Main Hitch, Type I, Eff. Sept. 1973
Hitch – Main Hitch, Type Ii, Prior To Sept. 1978
Hitch – Main Hitch, Type Ii, Eff. Sept. 1978

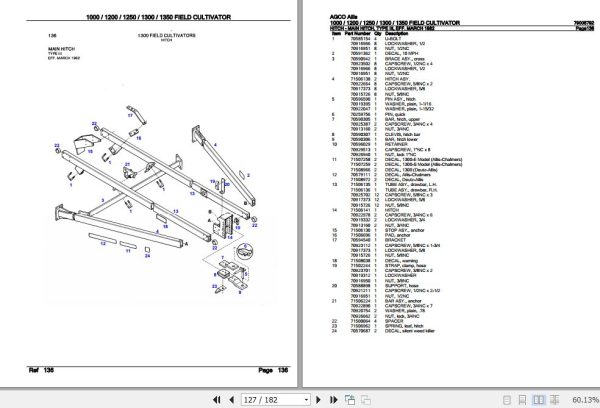

Hitch – Main Hitch, Type Iii, Eff. March 1982
Hitch – Hitch Jack, Type I, Prior To March 1968
Hydraulics – Lines, Wing & Transport Lift, Type I
Hydraulics – Lines W Pipe Fittings, Wing & Transport Lift,
Hydraulics – Lines W Jic Fittings, With 4 Ft. Wings
Hydraulics – Lines W Jic Fittings, Without 4 Ft. Wings
Hydraulics – Lift Linkage, Wings, Type 1
Hydraulics – Lift Linkage, Inner Wings, Eff. March 1982
Hydraulics – Lift Linkage, Outer Wings, Eff. March 1982
Hydraulics – 3-1 2 X 16 Cylinder, Tie Rods, Type I
Hydraulics – 3 X 8 Cylinder, Transport, Type Ii
Hydraulics – 3-1 2 X 8 Cylinder, Transport & Short Wing Fold
Frame – Main Frame
Frame – Torque Tube And Depth Stop, Main Frame
Frame – Wing Support, Long Wings
Wings – Frames, Short
Wings – Extensions, Main Frame & Long Wings
Wings – Torque Tube And Wheel, Long Wing
Hitch – Main Hitch
Hitch – Hitch Jack
Hydraulics – Lines, Wings & Transport Lift
Hydraulics – Lift Linkage, Inner Wings
Hydraulics – Cylinder, 3-1 2 Bore X 8 Stroke, Transport
Hydraulics – Cylinder, 3-1 2 Bore X 16 Stroke, Long Wing Fold
