Name: Antonio Carraro SX9900 to SRX7800 Diagnostic Workshop Manual 47307273 2024
SKU: 531336
Price: 20.00 USD
Availability: InStock

Antonio Carraro SX9900 to SRX7800 Diagnostic Workshop Manual 47307273 2024 (1)

Antonio Carraro SX9900 to SRX7800 Diagnostic Workshop Manual 47307273 2024 (2)

Antonio Carraro SX9900 to SRX7800 Diagnostic Workshop Manual 47307273 2024 (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

Antonio Carraro SX9900 to SRX7800 Diagnostic Workshop Manual 47307273 2024

Size: 31.78 MB

Format: PDF

Language: English

Brand: Antonio Carraro

Type of Machine: Tractor

Type of Manual: Diagnostic Workshop Manual, Electric Circuit

Model: Antonio Carraro Ergit 100 Series

01A465 – SX 9900

02A465 – SRX 9900

02A365 – SRX 7800

02A965 – SRX 7800

Part Number: 47307273

Publication Date: 2024

Number of Pages: 103 Pages

20$ USD

Tag: Antonio Carraro Manual

Description

Description

Contents:
01. Safety Regulations
01.1 Symbols Used
01.2 General Precautions
01.3 Preliminary Maintenance Operations
01.4 Reference Operators
01.5 Personal Protective Equipment
19. Diagnostics
19.1 Information
19.2 Diagnostics
19.3 Jcluster Error Codes (Dtc)
19.4 Reset Service
19.5 Teaching Mode

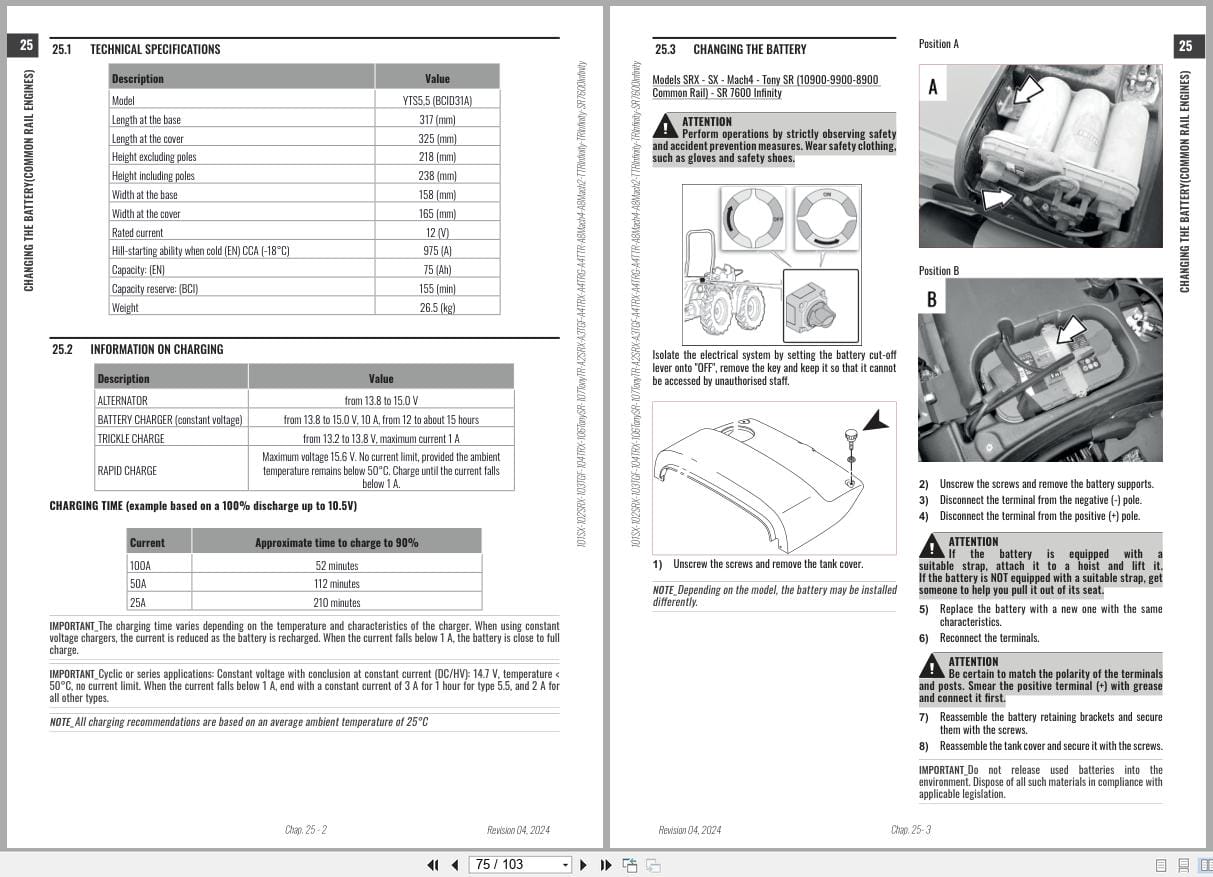

25. Changing The Battery
(Common Rail Engines)
25.1 Technical Specifications
25.2 Information On Charging
25.3 Changing The Battery
90. Assemblies – Schematics
90.1 Wiring Diagrams
01.1 Symbols Used
01.2 General Precautions
01.3 Preliminary Maintenance Operations
01.4 Reference Operators
01.5 Personal Protective Equipment
19.1 Information
19.1.1 Jcluster Multi-Function Instrument
19.2 Diagnostics
19.2.1 Warning Messages On The Jcluster Multifunction Display
19.2.2 Table 8.2: Problems At Engine Start-Up Phase
19.2.3 Table 8.4: Problems In The Power Take-Off And Differential Units
19.2.4 Table 8.5: Power Lift Unit Problems
19.2.5 Table 8.6: Clutch, Brake And Steering Units Problems
19.2.6 Table 8.8: Cab Unit Problems
19.2.7 Table 8.7: Electrical System Problems
19.3 Jcluster Error Codes (Dtc)
19.4 Reset Service
19.4.1 Multi-Function Instrument Software Identification
19.4.2 Service Reset Procedure Type A
19.4.3 Service Reset Procedure Type B
19.5 Teaching Mode
19.5.1 Description
19.5.2 Software Identification
19.5.3 Teaching Mode Procedure Type A
19.5.4 Teaching Mode Procedure Type B
25.1 Technical Specifications
25.2 Information On Charging
25.3 Changing The Battery
Models Srx – Sx – Mach4 – Tony Sr (10900-9900-8900 Common Rail) – Sr 7600 Infinity
90.1 Wiring Diagrams
90.1.1 Front Line (7800-9900)
90.1.2 Engine Line (9900)
90.1.3 Engine Line (7800)
90.1.4 Dashboard Line (7800-9900)
90.1.5 Rear Line (7800-9900)

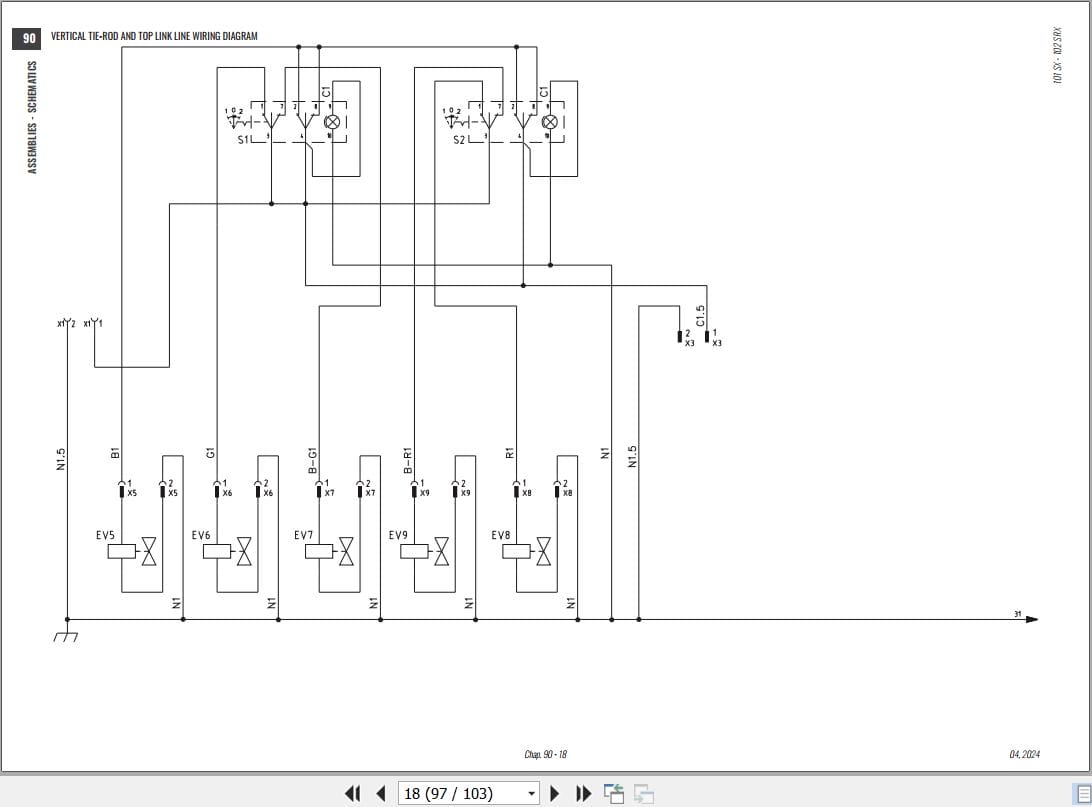

90.1.6 Vertical Tie-Rod And Top Link Line
90.1.7 “Proportional Joystick” Controls Line
90.1.8 “Proportional Joystick” Connection Line
90.1.9 Cab Line
