Name: Antonio Carraro Tractor 106 Tony SR9800 Technical Support Manual 47310115 EN
SKU: 577716
Availability: InStock

Antonio Carraro Tractor 106 Tony SR9800 Technical Support Manual 47310115 EN (1)

Antonio Carraro Tractor 106 Tony SR9800 Technical Support Manual 47310115 EN (2)

Antonio Carraro Tractor 106 Tony SR9800 Technical Support Manual 47310115 EN (3)

Antonio Carraro Tractor 106 Tony SR9800 Technical Support Manual 47310115 EN (4)

Antonio Carraro Tractor 106 Tony SR9800 Technical Support Manual 47310115 EN (5)

Antonio Carraro Tractor 106 Tony SR9800 Technical Support Manual 47310115 EN (6)

✓

Expert Support

✓

Full Speed

✓

100% Working

Antonio Carraro Tractor 106 Tony SR9800 Technical Support Manual 47310115 EN

Size: 111.18 MB

Format: PDF

Language: English

Brand: Antonio Carraro

Type of Machine: Tractor

Type of Manual: Technical Support Manual

Model: Antonio Carraro 106 Tony SR9800 Tractor

Part Number: 47310115

Publication Date: 2019

Number of Pages: 334 Pages

20 USD

Tags: Antonio Carraro Technical Support Manual, Antonio Carraro Tractor Manual, Tony SR9800

Description

Description

Contents:
01. SAFETY REGULATIONS
02. TECHNICAL INFORMATION, REFUELLING, LUBRICATION
03. TECHNICAL INFORMATION SHEETS
04. MECHANICAL Engine
7800 – 9800
05. CLUTCH
06. AXLES
07. FRONT TRANSMISSION
08. CENTRAL TRANSMISSION
09. REAR TRANSMISSION
Chapter in preparation
10. BRAKES
11. STEERING SYSTEM
12. HYDRAULIC SYSTEM
13. AIR CAB
19. DIAGNOSTICS
23. PLATFORM
24. ASSEMBLIES – SCHEMATICS
01.1 SYMBOLS USED
01.2 GENERAL PRECAUTIONS
01.3 PRIOR TO MAINTENANCE
01.4 REFERENCE OPERATORS
01.5 PERSONAL PROTECTIVE EQUIPMENT
02.1 Introduction to the manual
02.2 Rules of reference
02.3 Conversion tables

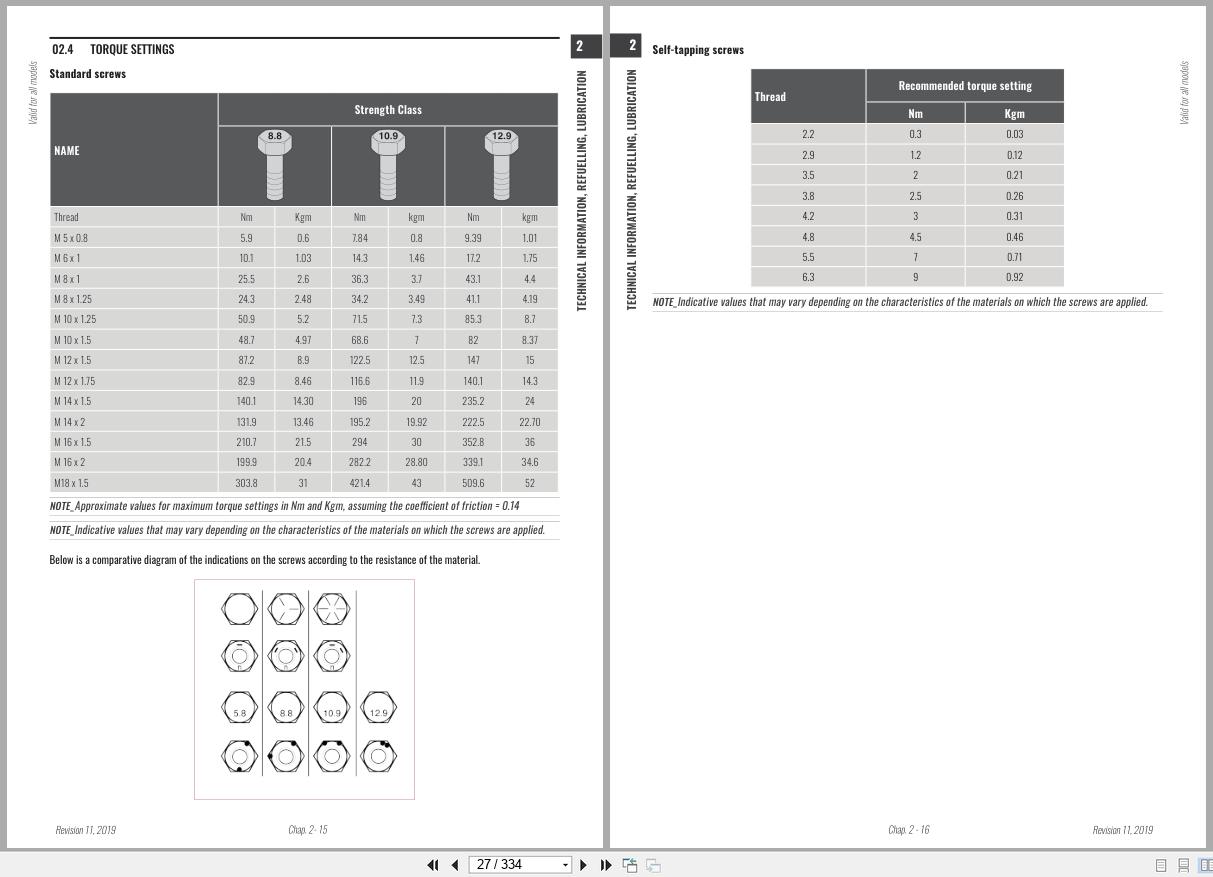

02.4 Torque settings
02.5 Lubricant table
02.6 table of sealants
02.7 Table of degreasers
02.8 Refuelling
02.9 Locations of lubrication points
03.1 Identification of manufacturer and machine (2003/37/EC)
03.2 Identification of manufacturer and machine (EU 1322/2014)
03.3 General description of the machine
03.4 General technical data
04.1 Troubleshooting
04.2 Radiator removal and reconnection
04.3 ENGINE REMOVAL AND RECONNECTION
06.1 FRONT AXLE

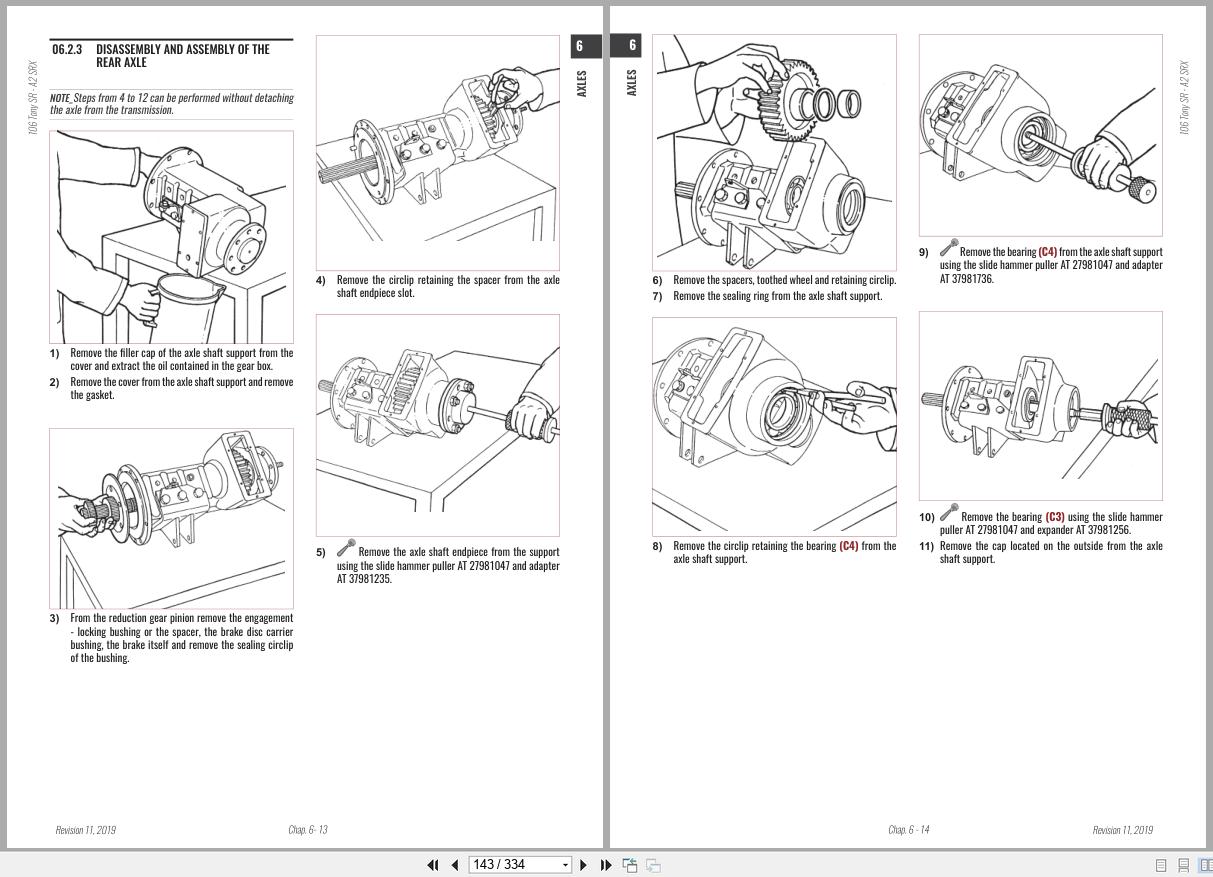

06.2 REAR AXLE

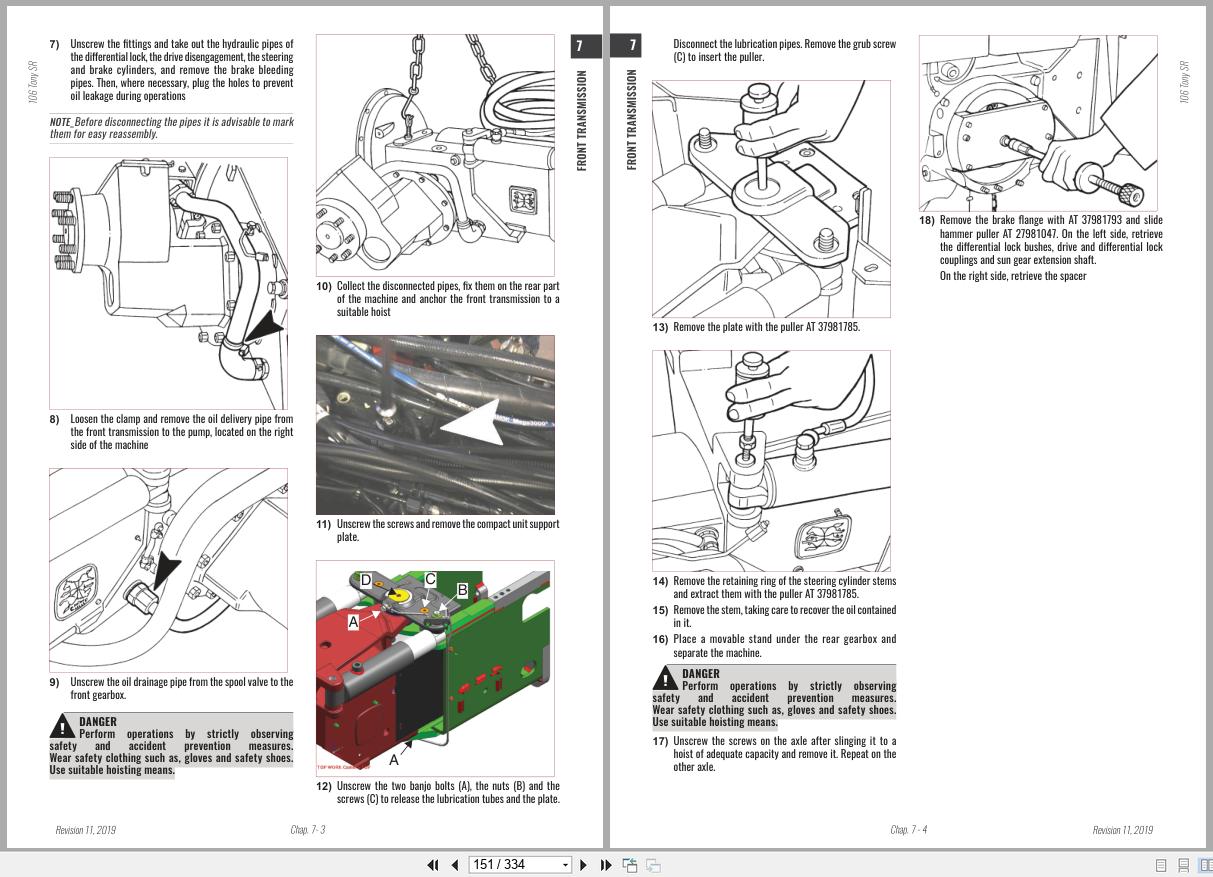

07.1 REMOVING AND RECONNECTING THE FRONT TRANSMISSION
07.2 FRONT DIFFERENTIAL
08.1 Removal of solenoid valves, actuator unit, pressure relief valves
08.2 Removing and reconnecting the hydrostatic unit
10.1 INTRODUCTION
10.2 procedures
11.1 INTRODUCTION
11.2 PROCEDURES
12.1 General Introduction

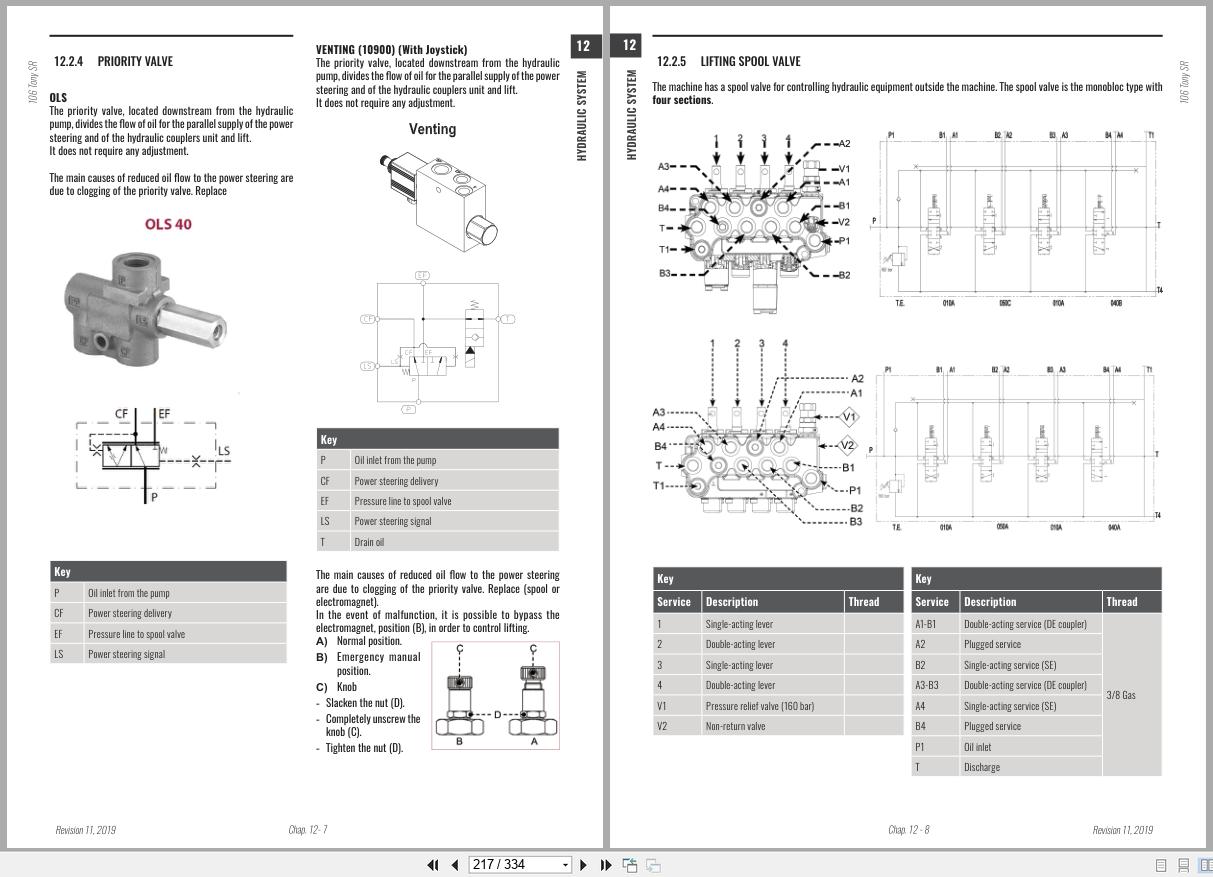

12.2 hydraulic system for lifting and hydraulic couplers

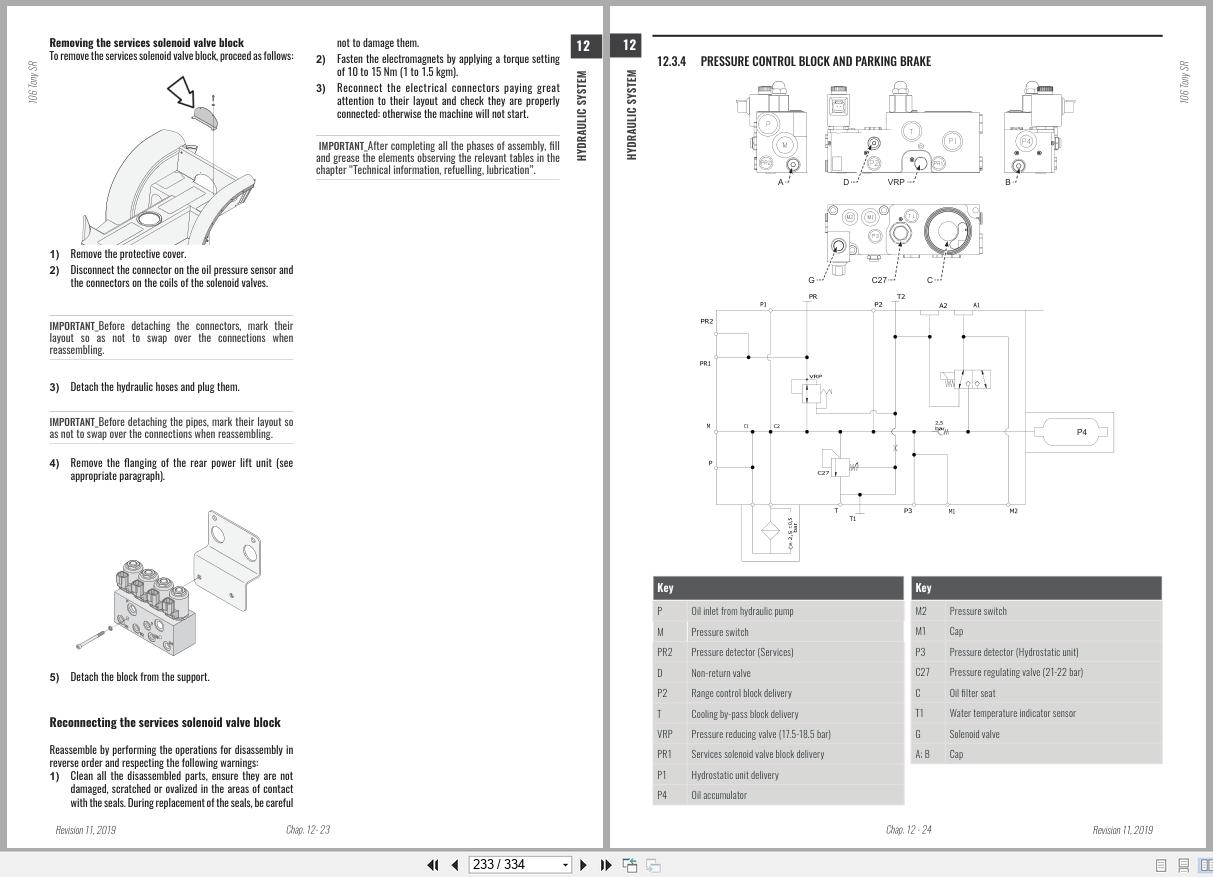

12.3 Hydrostatic unit and services hydraulic circuit
13.1 HVAC SYSTEM
13.2 SYSTEM MAINTENANCE
13.3 STRUCTURE
19.1 Information
19.2 Diagnostics
19.3 Error codes (DTC)
19.4 Actions of the TCU control unit in emergency mode
19.5 Resetting Service interval
19.6 Neutral Check Needed
19.7 Teaching Mode
23.1 PLATFORM
90.1 ASSEMBLIES
90.2 FUNCTIONAL DIAGRAMS
90.3 WIRING DIAGRAMS
