Name: Antonio Carraro Tractor Series 100 TRX-TRG TRX7800 to TRG10400 Technical Support Handbook 47310094 EN
SKU: 577963
Price: 20.00 USD
Availability: InStock

Antonio Carraro Tractor Series 100 TRX TRG TRX7800 to TRG10400 Technical Support Handbook 47310094 EN (1)

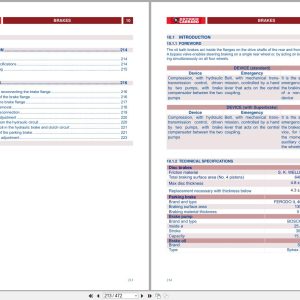

Antonio Carraro Tractor Series 100 TRX TRG TRX7800 to TRG10400 Technical Support Handbook 47310094 EN (2)

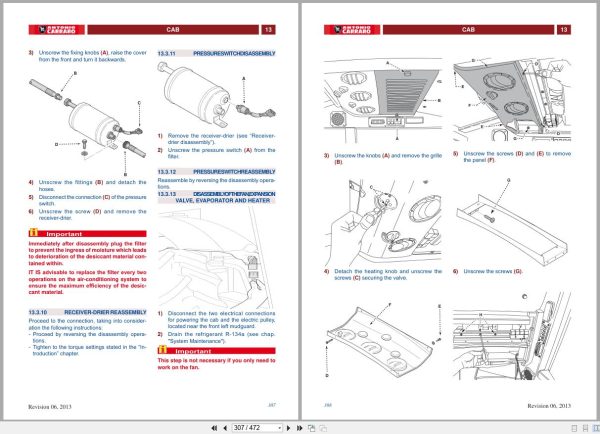

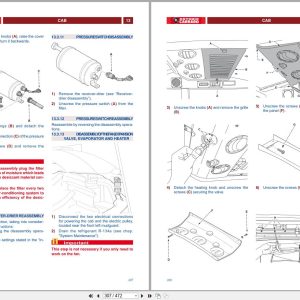

Antonio Carraro Tractor Series 100 TRX TRG TRX7800 to TRG10400 Technical Support Handbook 47310094 EN (3)

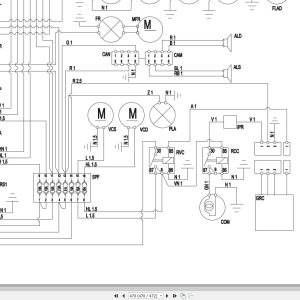

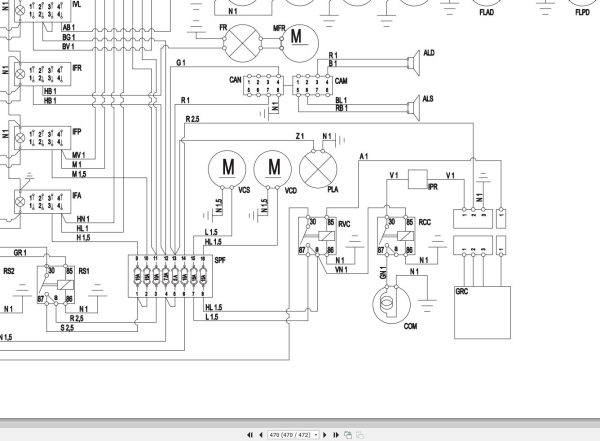

Antonio Carraro Tractor Series 100 TRX TRG TRX7800 to TRG10400 Technical Support Handbook 47310094 EN (4)

✓

Expert Support

✓

Full Speed

✓

100% Working

Antonio Carraro Tractor Series 100 TRX-TRG TRX7800 to TRG10400 Technical Support Handbook 47310094 EN

Size: 63.27 MB

Format: PDF

Language: English

Brand: Antonio Carraro

Type of Machine: Tractor

Type of Manual: Technical Support Handbook, Electrical Schematic

Model: Antonio Carraro Series 100 TRX-TRG Tractor

TRX7800, TRX9800, TRX8400, TRX10400, TRG9800, TRG10400

Part Number: 47310094

Publication Date: 2013

Number of Pages: 472 Pages

20 USD

Tags: Antonio Carraro Technical Support Handbook, Antonio Carraro Tractor Manual, Series 100 TRX7800, TRG10400

Description

Description

Contents:
1 Introduction
2 Safety Regulations
3 Technical Information Sheets
4 Engine
5 Clutch
6 Axles
7 Front Transmission
8 Central Transmission
9 Rear Transmission
10 Brakes
11 Steering System
12 Hydraulic System
13 Cab
14 Electrical System
15 Joystick
16 Tools
17 Assemblies – Schematics
11 Introduction To The Manual
21 General Precautions
31 Machine Identification
41 General Information
51 Introduction
61 Front Axle
71 Removing And Reconnecting The Front Transmission
81 Disassembly And Assembly Of The Drive Shaft
91 Removing And Reconnecting The Rear Transmission
101 Introduction
102 Procedures
111 Introduction
121 General Introduction
131 Hvac System
141 Introduction
151 On-Off Joystick
161 Engine Equipment
171 Assemblies
