Name: Antonio Carraro Tractor Series 22 24 25 Technical Assistance Manual 47310020 IT
SKU: 578074
Price: 20.00 USD
Availability: InStock

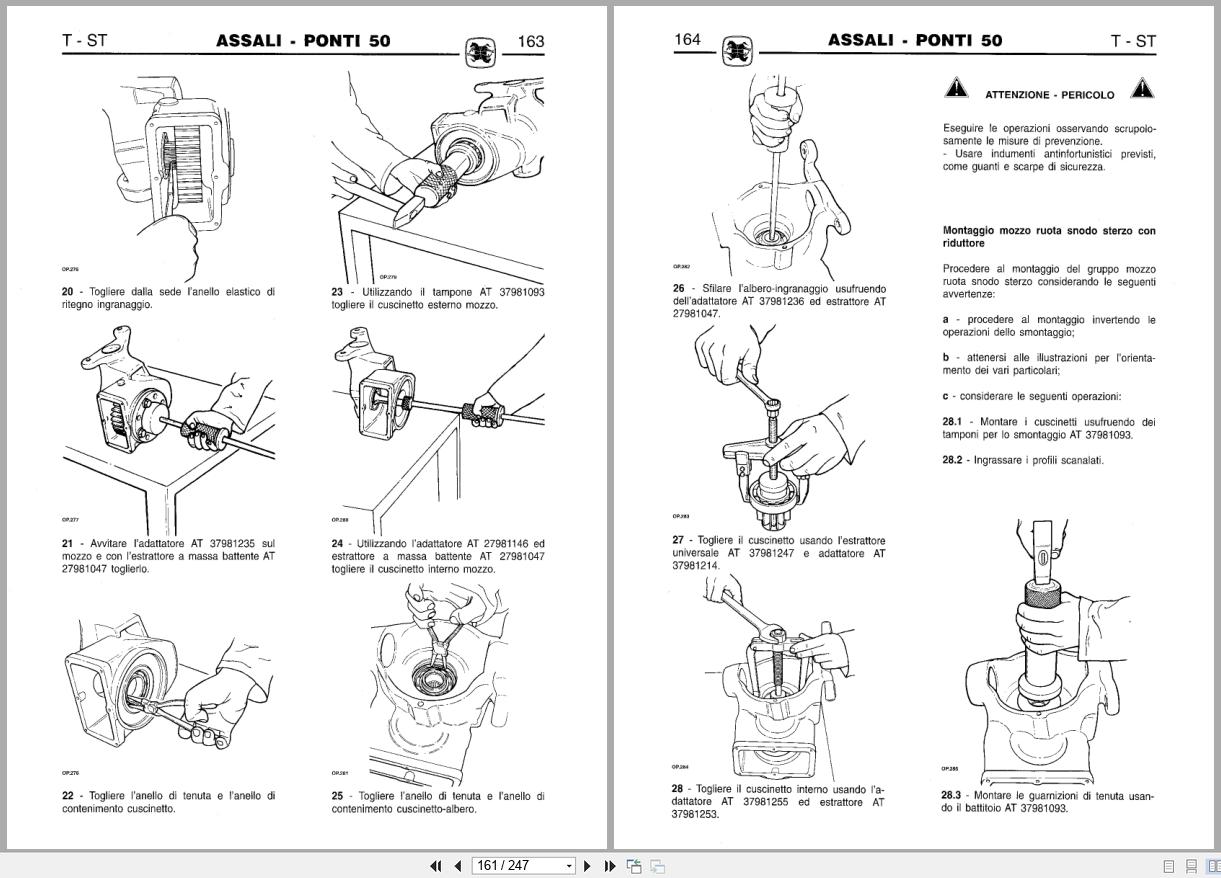

Antonio Carraro Tractor Series 22 24 25 Technical Assistance Manual 47310020 IT (1)

Antonio Carraro Tractor Series 22 24 25 Technical Assistance Manual 47310020 IT (2)

Antonio Carraro Tractor Series 22 24 25 Technical Assistance Manual 47310020 IT (3)

Antonio Carraro Tractor Series 22 24 25 Technical Assistance Manual 47310020 IT (4)

✓

Expert Support

✓

Full Speed

✓

100% Working

Antonio Carraro Tractor Series 22 24 25 Technical Assistance Manual 47310020 IT

Size: 16.08 MB

Format: PDF

Language: Italian

Brand: Antonio Carraro

Type of Machine: Tractor

Type of Manual: Technical Assistance Manual, Electrical Schematic

Model: Antonio Carraro

Series 22 TIGRONE, TIGRONE Comtrac, TIGRONE Tritrac,

TIGRONE Tritrac Frutteto, TIGRONE Tritrac 4×4, TIGRETRAC,

SUPERTIGRE, SUPERTIGRE Tritrac, SUPERTIGRE Vigneto,

SUPERTIGRE Tritrac Vigneto, SUPERTIGRE 4×4,

SUPERTIGRE Tritrac 4×4, SUPERTIGRE Vigneto 4×4,

SUPERTIGRE Tritrac Vigneto 4×4

Series 24 TIGRECAR, SUPERCAR

Series 25 CARGO

Part Number: 47310020

Number of Pages: 247 Pages

20 USD

Tags: 24, 25, Antonio Carraro Technical Assistance Manual, Antonio Carraro Tractor Manual, Series 22

Description

Description

Contents:
General Information – Data
Engine Technical Characteristics
Tightening Torques
Sealing Fixers
Lubricants
Clutch
Technical Characteristics
Diagnosis Of Problems
Clutch Removal-Reattachment
Clutch Control
Clutch Pedal Travel Adjustment
Removing And Reattaching The Hydraulic Clutch Control
Bleeding Air From The Clutch Hydraulic Circuit
Clutch Equipment
Front Drive
Tigrone And Tigrecar Front Transmission Removal And Reassembly
Removing And Reattaching The Supertigre Front Transmission
Disconnecting And Reconnecting The Front Transmission Of The Cargo
Front Transmission Disassembly And Assembly
Front Transmission Equipment
Differential Group
Calculating The Thickness Of The Pinion Bearing Support Ring
Pinion Bearing Preload
Adjusting The Play Between The Crown And Pinion
Differential Box Bearing Preload
Differential Disassembly And Assembly
Check Planetary Axial Play
Differential Group Equipment
Central Transmission
Tigrone Central Transmission Removal And Reassembly
Removing And Reattaching The Supertigre Central Transmission
Disassembly And Assembly Of The Double Universal Joint
Tigrecar Central Transmission Removal And Reassembly
Central Transmission Equipment
Rear Transmission
Tigrone-Supertigre Rear Transmission Removal And Reassembly
Tigretrac Rear Transmission Removal And Refitting
Rear Cargo Transmission Removal And Refitting
Gearbox Disassembly And Assembly
Pto Group Disassembly-Assembly (Standard)
Pto Group Disassembly-Assembly (Postponed)
Disassembly-Assembly Of The Upper Pto Clutch Reducer-Reverser Group
Disassembly-Assembly Of The Lower Reducer-Inverter Group
Disassembly And Assembly Of The 12 And 3:4 Gearbox Group
Pto Clutch Adjustment
Differential Group
Rear Transmission Equipment
Axle Bridges
Tigrone Front Axle Removal And Reassembly
Removing And Reattaching The Front Axle In Vigneto
Cargo Front Axle Removal And Refitting
Disassembly And Assembly Of The Front Steering Axle
Disassembly And Assembly Of The Supertigre 4×4 Front Axle
Disassembly-Assembly Of The Supertigre Sr Front Axle
Tigrone Rear Axle Removal And Reassembly
Rear Axle Removal And Refitting Vigneto
Rear Axle Disassembly And Assembly Normal
Disassembly-Assembly Of The Sr Rear Axle
Bridge Axle Equipment
Brakes
Technical Characteristics
Diagnosis Of Problems
Removing And Refitting Brakes
Brake Adjustment
Hand Brake Control Travel Adjustment
– Removing And Reattaching The 24 Series Brake Pump
Removing And Reattaching Front Brake Cylinders Series 24
Removing And Reattaching Rear Brake Cylinders Series 24
Removing And Reattaching The Front Brakes On The 25 Cargo Series
Removing And Reattaching Rear Brake Cylinders Series 25 Cargo
Brake Pump Removal And Reassembly Series 25 Cargo
Bleeding Air From The Brake Hydraulic Circuit
Freni Tigretrac
Brake Equipment
Steering
Technical Characteristics
Diagnosis Of Problems
Disconnecting And Reconnecting The Hydrostatic Steering Distributor
Power Steering Pressure Relief Valve Check Tigrone Steering Operator Cylinder Overhaul
Supertigre Steering Cylinder Overhaul
Checking The Convergence Of The Steering Wheels
Steering Equipment
Plumbing Systems
Technical Characteristics
Diagnosis Of Problems
Lift Detachment And Reattachment At Controlled Effort Position
Normal Lift Disconnection And Reconnection
Check The Hydraulic System Pressure Relief Valve
Lift Cylinder Detachment-Reattachment
Disassembly-Assembly Of Lifting Cylinder
Tigretrac Lifting
Check Accumulated Pressure
Plumbing Equipment
Electrical Systems
Technical Characteristics
Fuse Valves
Adjusting The Tachometer On The Electronic Tachograph
Electrical Diagrams
Auxiliary Groups
Front Power Take-Off Disconnection And Reconnection
Disassembly-Assembly Of The Front Pto Unit
Pto Drive Pressure Control
Auxiliary Group Equipment
