Name: Antonio Carraro Tractor Series ERGIT ES Technical Support Handbook EN
SKU: 578267
Availability: InStock

Antonio Carraro Tractor Series ERGIT ES Technical Support Handbook EN (1)

Antonio Carraro Tractor Series ERGIT ES Technical Support Handbook EN (2)

Antonio Carraro Tractor Series ERGIT ES Technical Support Handbook EN (3)

Antonio Carraro Tractor Series ERGIT ES Technical Support Handbook EN (4)

✓

Expert Support

✓

Full Speed

✓

100% Working

Antonio Carraro Tractor Series ERGIT ES Technical Support Handbook EN

Size: 8.12 MB

Format: PDF

Language: English

Brand: Antonio Carraro

Type of Machine: Tractor

Type of Manual: Technical Support Handbook, Electrical Schematic, Hydraulic Schematic

Model: Antonio Carraro Series ERGIT ES TC6400, TC5400, TN6400, TN5400

Number of Pages: 202 Pages

20 USD

Tags: Antonio Carraro Technical Support Handbook, Antonio Carraro Tractor Manual, Series ERGIT ES

Description

Description

Contents:
ENERAL REMARKS
Introduction to the handbook
Reference regulations
General precautions
Precautions and warnings
TECHNICAL DATA
I.D. data
Description
Before carrying out maintenance operations
Tightening torques – Conversion tables
Lubricants and fixing agents
ENGINE
Technical engine data
Procedures

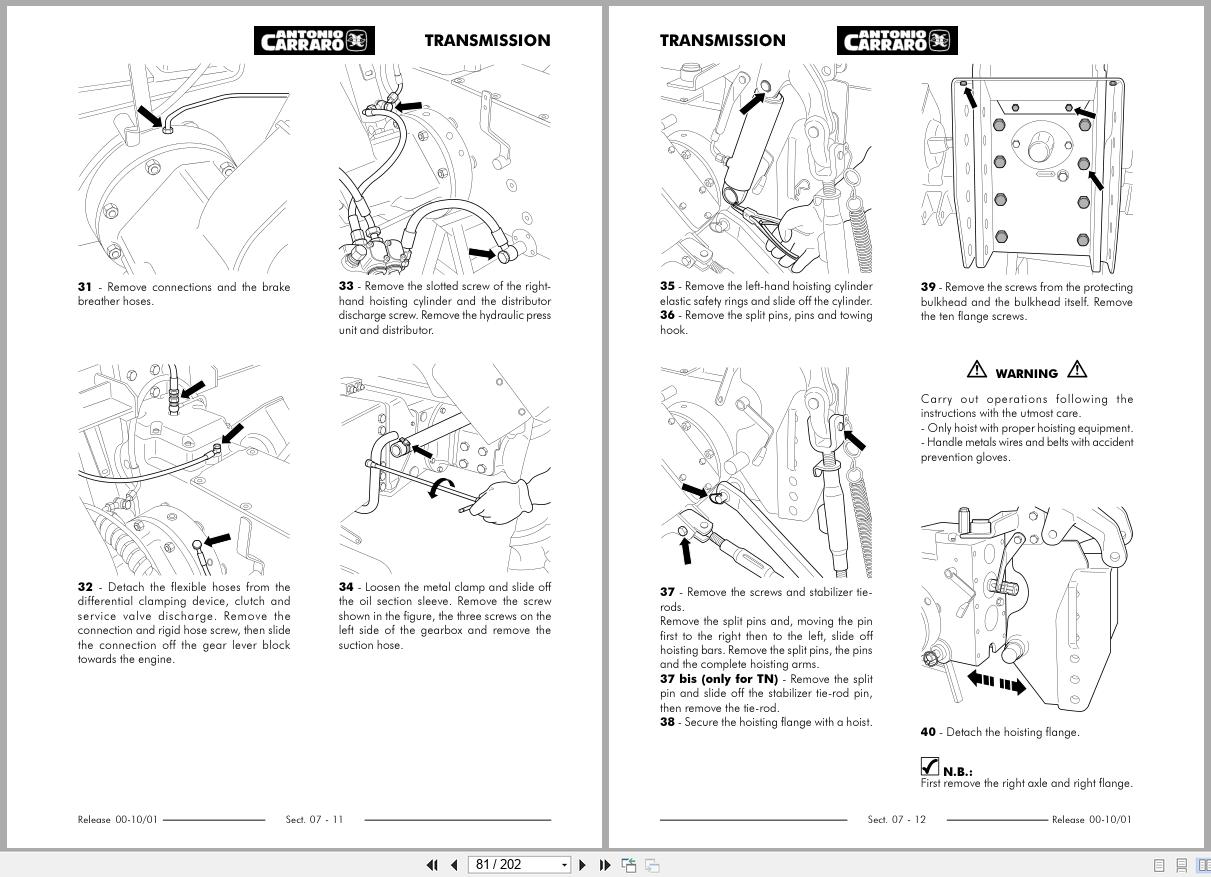

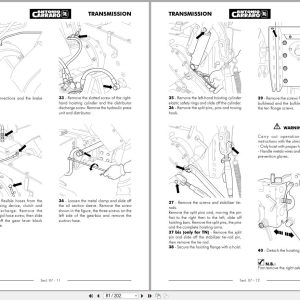

TRANSMISSION
CLUTCH
Technical clutch data
Troubleshooting
Detaching the clutch
– Clutch control
Clutch control for front transmission
-Refit
FRONT AXLE
Detaching the mobile cap
– Stripping down the mobile cap
– Assembly
– Refit
Detaching the fixed cap
– Stripping down the fixed cap
– Assembly
-Refit
FRONT TRANSMISSION
Technical data
Detaching the front transmission
– Stripping down the front case
– Assembly
– Zeroing the tapered pinion
– Setting the pre-loading of the pinion bearing
Front differential
– Setting the play between the pinion and crown wheel
– Differential box bearing pre-loading
-Refit
CENTRAL TRANSMISSION
Detaching the central transmission
– Stripping down the central transmission
– Assembly
– Refit
REAR TRANSMISSION
Technical data
Detaching the rear transmission
Stripping down the power takeoff (PTO)
– Servicing the PTO clutch
Stripping down the upper unit
– Servicing the normal/reduced gear unit
– Servicing the primary shaft
Stripping down the lower unit
– Servicing the secondary shaft
Assembling the lower unit
– Zeroing the tapered pinion
– Setting the play of the lower unit
– Setting pre-loading
Assembly of the upper unit
– Setting the play of the upper unit
Assembling the power takeoff (PTO)
Rear differential
– Setting the play between the pinion and crown wheel
– Pre-loading the differential box bearings
– Refitting the rear transmission
REAR AXLE
Detaching the rear axle
– Stripping down the rear axle
– Assembly
– Refit
STEERING PLANT
Technical data
Troubleshooting
Measuring the working pressure
Detaching the guidance system
– Refit
Steering cylinder control
– Assembly
BRAKE PLANT
Technical data
Troubleshooting
Detaching the brake flange
– Stripping down the brake flange
– Assembly
– Refit
Detaching brake pumps
– Servicing brake pumps
– Assembly
– Refit
Bleeding air from the brake circuit
Stripping down the parking brake
– Assembly
ELECTRIC PLANT
Technical data

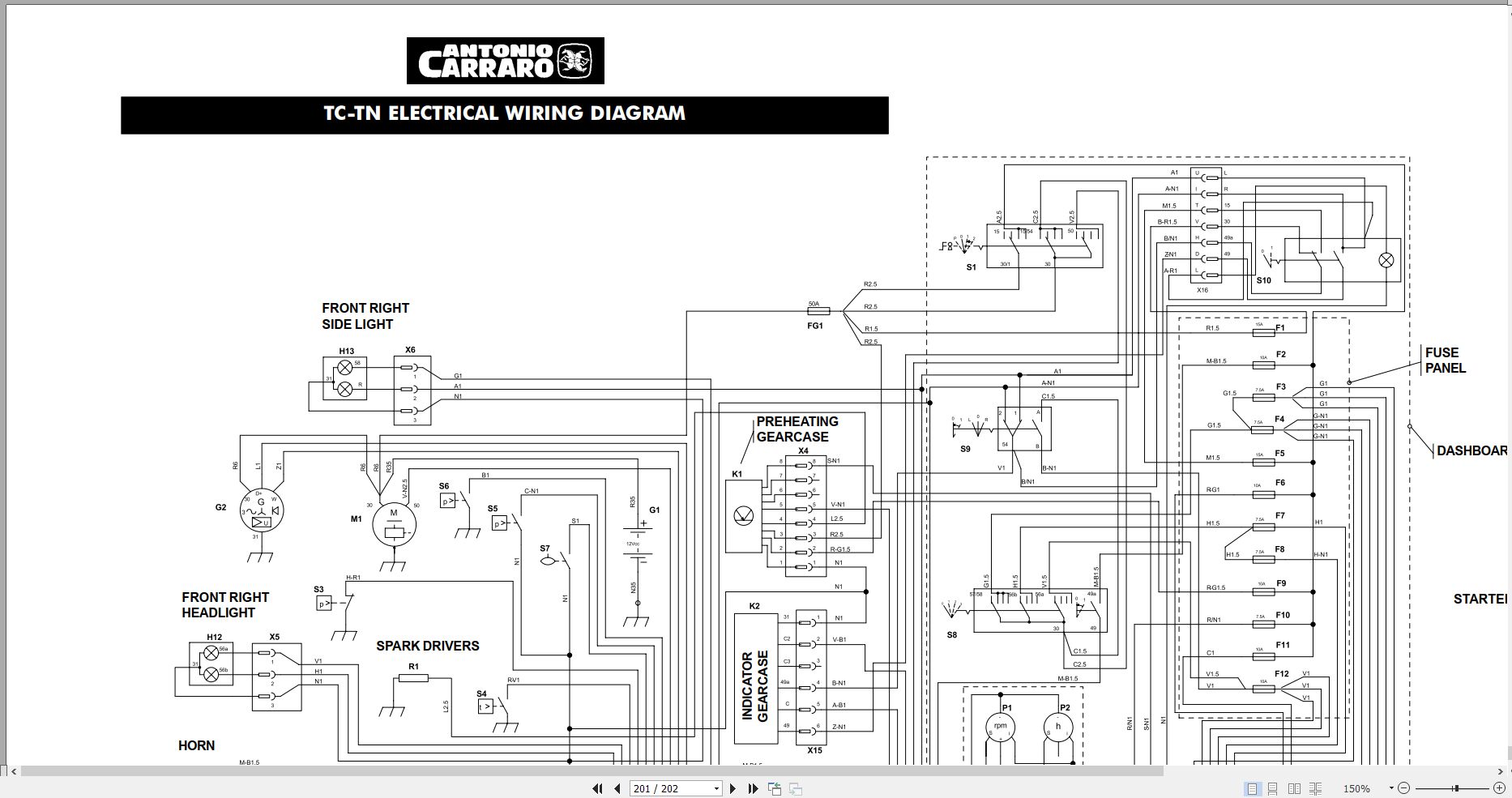

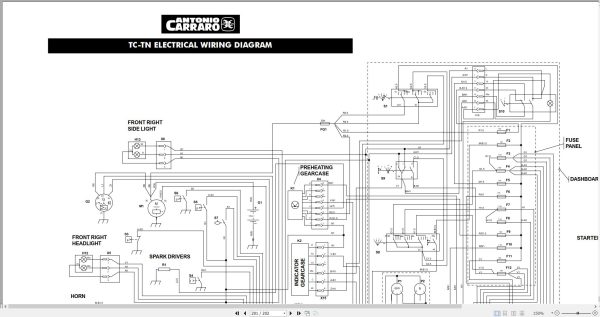

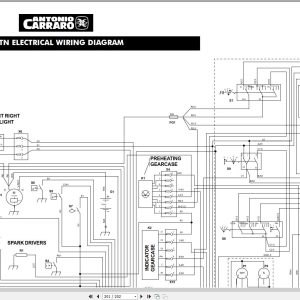

Electric plant diagram
Setting the recounter, clock and speedometer
HYDRAULIC PLANT
Technical data
Troubleshooting
Hydraulic plant drawing
Controlling working pressure
– Controlling feed pressure
– Controlling output pressure
Service valve
Oil filter
Hoisting – hydraulic pickups
Detaching the power and position control
– Refit

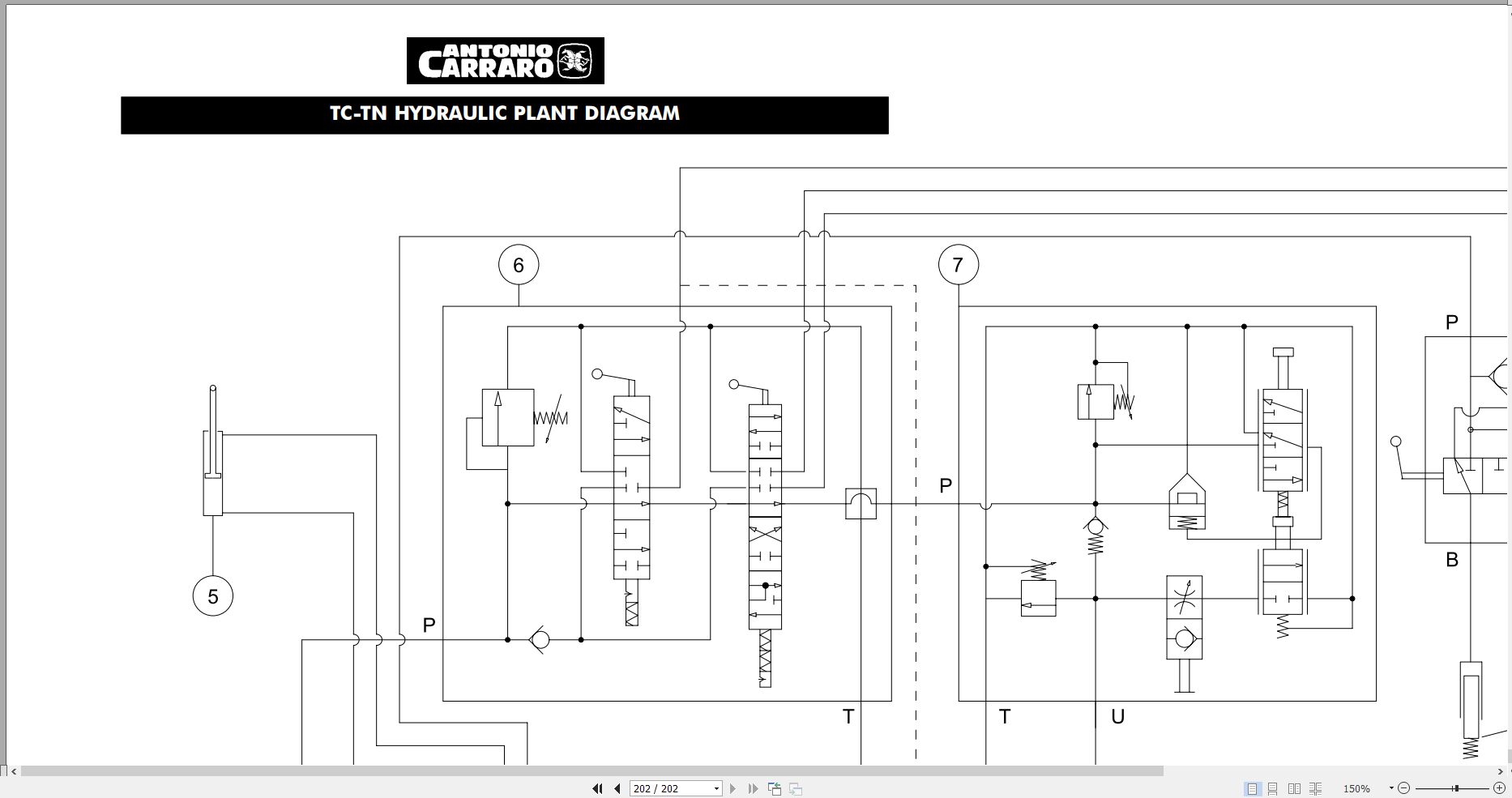

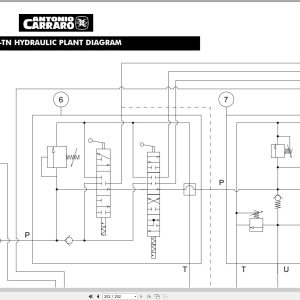

Model TC and TN hoisting diagram
SETTINGS
Differential clamping
Traction release
Clutch pedal setting
Parking brake setting
Setting the power and position control for hoisting
Toe-in setting and control
TOOLS
ASSEMBLIES
