Name: Antonio Carraro Tractor Tony 8700V Engine Transmission Workshop Manual 47308193_01 EN
SKU: 578511
Price: 20.00 USD
Availability: InStock

Antonio Carraro Tractor Tony 8700V Engine Transmission Workshop Manual 47308193 01 EN (1)

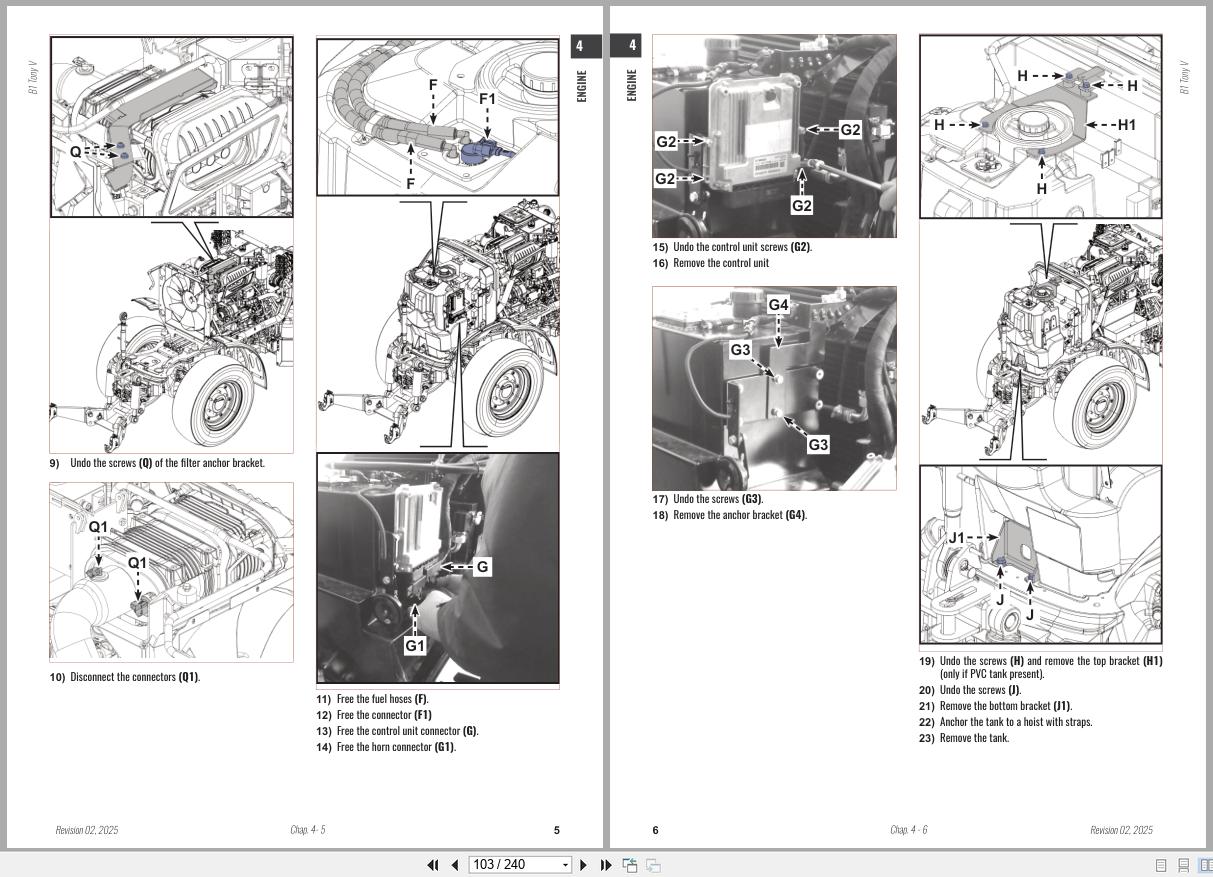

Antonio Carraro Tractor Tony 8700V Engine Transmission Workshop Manual 47308193 01 EN (2)

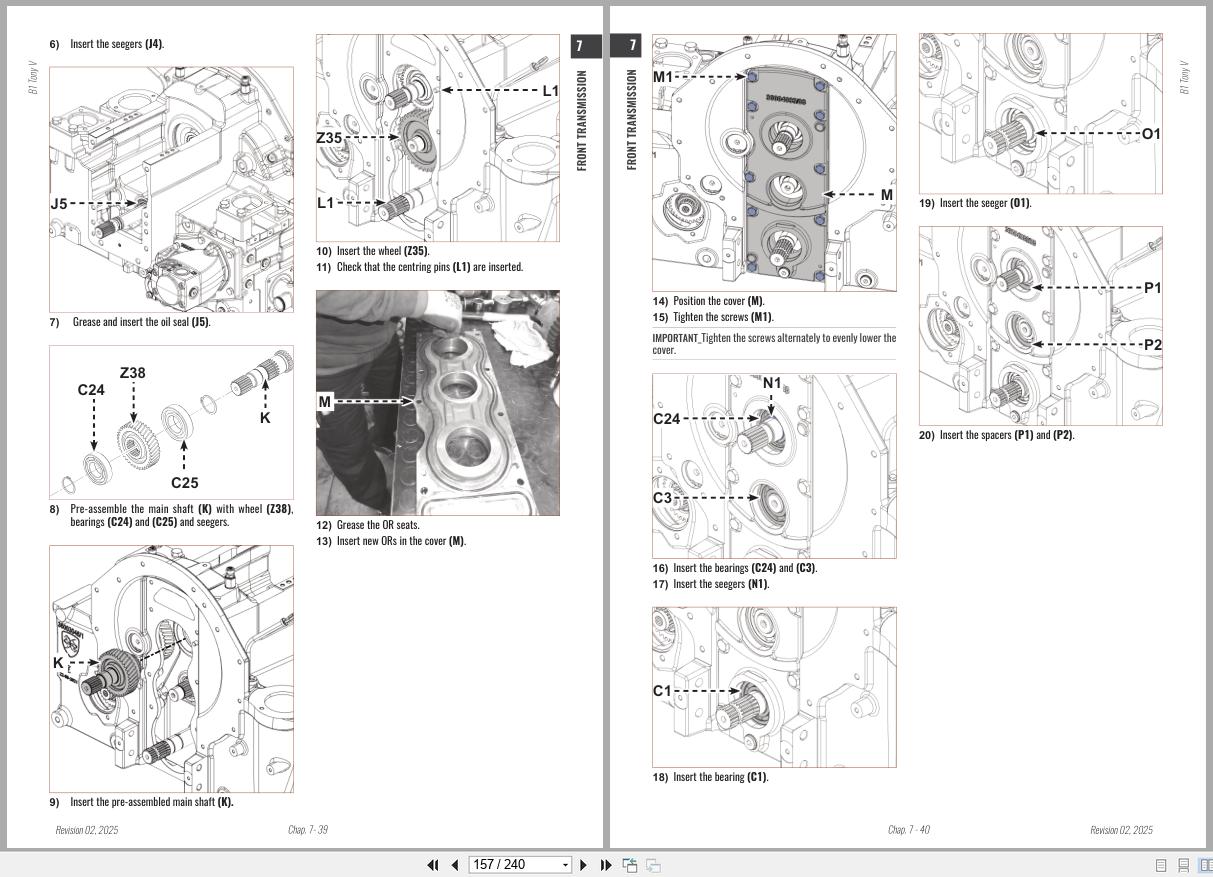

Antonio Carraro Tractor Tony 8700V Engine Transmission Workshop Manual 47308193 01 EN (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

Antonio Carraro Tractor Tony 8700V Engine Transmission Workshop Manual 47308193_01 EN

Size: 118.94 MB

Format: PDF

Language: English

Brand: Antonio Carraro

Type of Machine: Tractor

Type of Manual: Engine Transmission Workshop Manual

Model: Antonio Carraro Series Tony B1B570 – Tony 8700V

Part Number: 47308193_01

Publication Date: 2024

Number of Pages: 240 Pages

20 USD

Tags: Antonio Carraro Engine Transmission Workshop Manual, Antonio Carraro Tractor Manual, Tony 8700V

Description

Description

Contents:
01. SAFETY REGULATIONS
02. TECHNICAL INFORMATION, REFUELLING, LUBRICATION
04. Engine
05. CLUTCH
07. FRONT TRANSMISSION
08. CENTRAL TRANSMISSION
09. REAR TRANSMISSION
90. TRANSMISSION ASSEMBLIES
01.1 SYMBOLS USED
01.2 GENERAL PRECAUTIONS
01.3 PRELIMINARY MAINTENANCE OPERATIONS
01.4 REFERENCE OPERATORS
01.5 PERSONAL PROTECTIVE EQUIPMENT
02.1 Introduction to the manual
02.2 Rules of reference
02.3 Conversion tables
02.4 General warnings for replacement of components
02.5 Torque settings
02.6 Table of lubricants
02.7 table of sealants
02.8 Table of degreasers
02.9 Filling
02.10 Location of greasing points
04.1 DIAGNOSI DEGLI INCONVENIENTI
04.2 Stacco E RIATTACCO serbatoio carburante – radiatore acqua
04.3 Stacco e riattacco motore – Giunto parastrappi
04.4 Sostituzione DPF
07.1 Disconnecting and refitting the 4RM clutch
07.2 Disassembly and refitting the 4RM clutch
07.3 REMOVING AND RECONNECTING THE FRONT TRANSMISSION
07.4 DISASSEMBLY AND ASSEMBLY OF FRONT TRANSMISSION
08.1 Disassembly of solenoid valves, actuator unit, pressure relief valves
08.2 Disconnecting and reconnecting the hydrostatic unit
09.1 DISASSEMBLY OF THE REAR TRANSMISSION
90.1 TRANSMISSION ASSEMBLIES
