Antonio Carraro Tractor TR5 800 Infinity Diagnostic Workshop Manual 47307263 2024

Antonio Carraro Tractor TR5 800 Infinity Diagnostic Workshop Manual 47307263 2024 (1)
Antonio Carraro Tractor TR5 800 Infinity Diagnostic Workshop Manual 47307263 2024 (2)
Antonio Carraro Tractor TR5 800 Infinity Diagnostic Workshop Manual 47307263 2024 (3)
Antonio Carraro Tractor TR5 800 Infinity Diagnostic Workshop Manual 47307263 2024 (1)
Antonio Carraro Tractor TR5 800 Infinity Diagnostic Workshop Manual 47307263 2024 (2)
Antonio Carraro Tractor TR5 800 Infinity Diagnostic Workshop Manual 47307263 2024 (3)
✓

Expert Support

✓

Full Speed

✓

100% Working

Antonio Carraro Tractor TR5 800 Infinity Diagnostic Workshop Manual 47307263 2024

Size: 54.05 MB
Format: PDF
Language: English
Brand: Antonio Carraro
Type of Machine: Tractor
Type of Manual: Diagnostic Workshop Manual, Wiring Diagrams
Model: Antonio Carraro 57 Series 57A660 – TR 5800 Infinity Tractor
Part Number: 47307263
Publication Date: 2024
Number of Pages: 169 Pages

20$ USD

Tag:
  • Description

Description

Contents:
01. Safety Regulations
01.1 Symbols Used
01.2 General Precautions
01.3 Preliminary Maintenance Operations
01.4 Reference Operators
01.5 Personal Protective Equipment

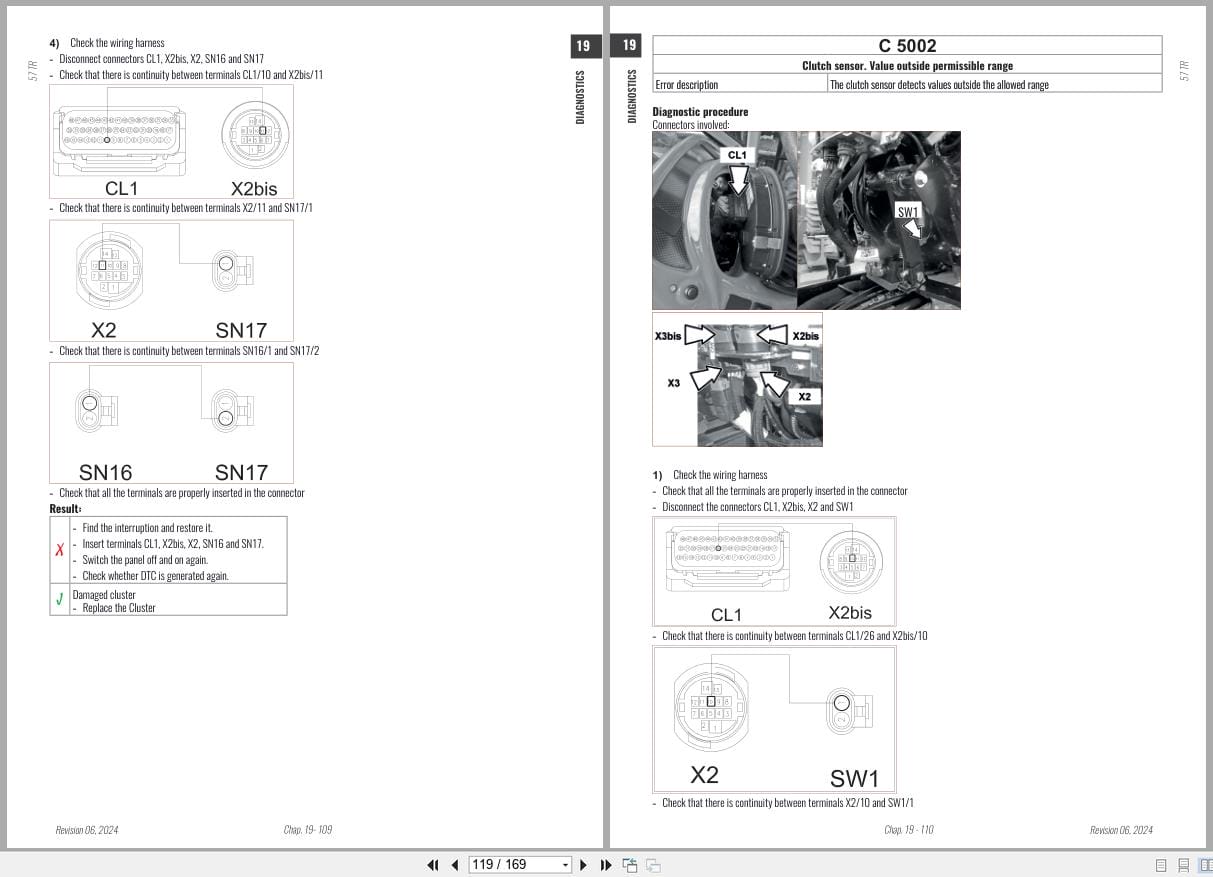

19. Diagnostics
19.1 Information
19.2 Diagnostics
19.3 Midac Error Codes (Dtc)
19.4 Cluster Error Codes (Dtc)
19.5 Reset Service
19.6 Teaching Mode
90. Assembly Diagrams
90.1 Transmission Assemblies
90.3 Wiring Diagrams
01.1 Symbols Used
01.2 General Precautions
01.3 Preliminary Maintenance Operations
01.4 Reference Operators
01.5 Personal Protective Equipment
19.1 Information
19.1.1 Midac – Transmission Control Unit
19.1.2 Cluster Multi-Function Instrument
19.1.3 Fuses And Relays
19.1.4 Access To Connector For Diagnostics
19.2 Diagnostics
19.2.1 Warning Messages On The Cluster Multifunction Display
19.2.2 Leds
19.2.3 Problems At Engine Start-Up Phase
19.2.4 Problems In The Power Take-Off And Differential Units
19.2.5 Power Lift Unit Problems
19.2.6 Clutch, Brake And Steering Units Problems
19.2.7 Electrical System Problems
19.2.8 Cab Unit Problems (If Present)
19.3 Midac Error Codes (Dtc)
19.4 Cluster Error Codes (Dtc)
19.5 Reset Service
19.6 Teaching Mode
19.6.1 Description
19.6.2 Procedure

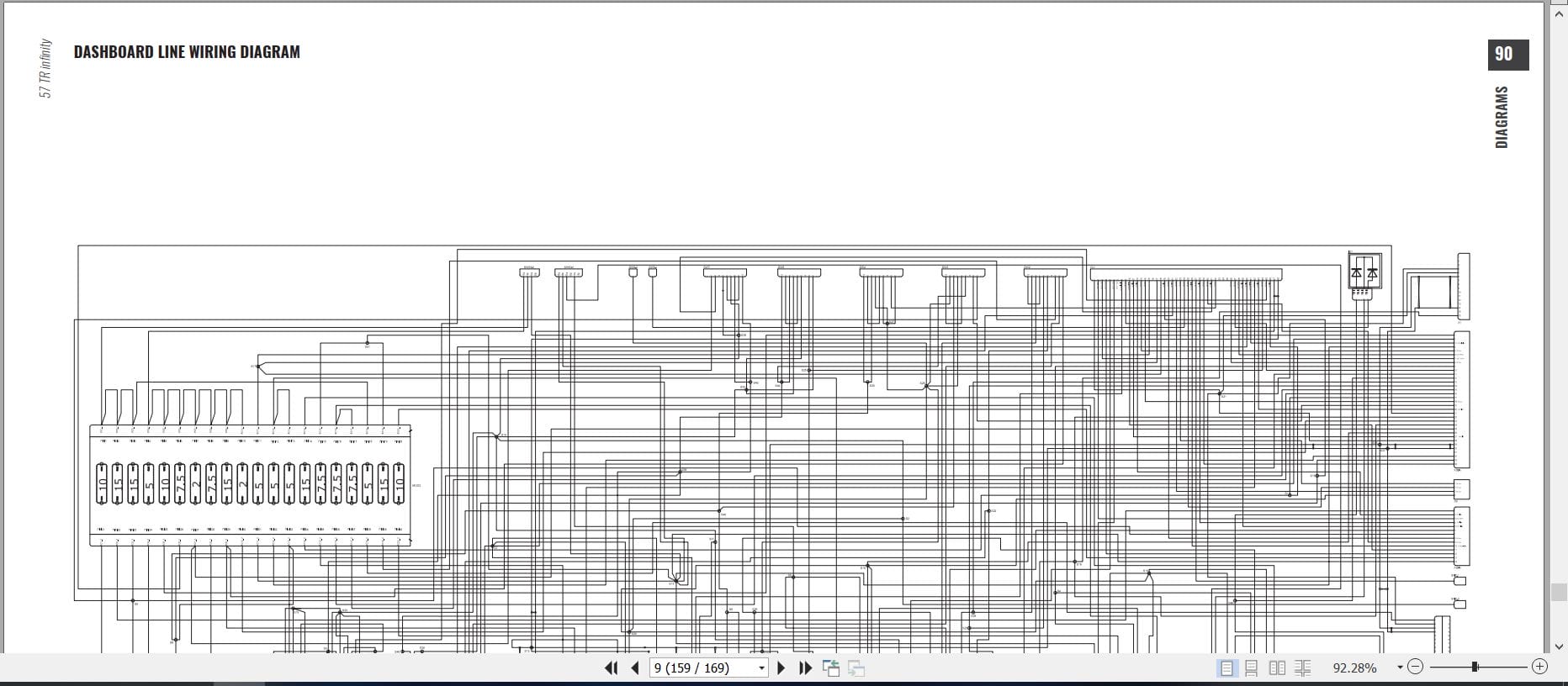

90.1 Wiring Diagrams
90.1.1 Functional Diagram
90.1.2 Engine Line Wiring Diagram
90.1.3 Dashboard Line Wiring Diagram
90.1.4 Machine Line Wiring Diagram
90.1.5 Basic Solenoid Valves Harness Wiring Diagram
90.1.6 Optional Solenoid Valves Harness Wiring Diagram
90.1.7 Joystick Extension Wiring Diagram
