Antonio Carraro Tractor TTR 7800 Diagnostic Workshop Manual 47307033-01 2024

Size: 44.43 MB

Format: PDF

Language: English

Brand: Antonio Carraro

Type of Machine: Tractor

Type of Manual: Diagnostic Workshop Manual, Wiring Diagrams

Model: Antonio Carraro Ergit 100 Series

04A366 – TTR 7800

04A966 – TTR 7800

Part Number: 47307033-01

Publication Date: 2024

Number of Pages: 111 Pages

20$ USD

Tag: Antonio Carraro Manual

Description

Description

Contents:
01. Safety Regulations
01.1 Symbols Used
01.2 General Precautions
01.3 Preliminary Maintenance Operations
01.4 Reference Operators
01.5 Personal Protective Equipment

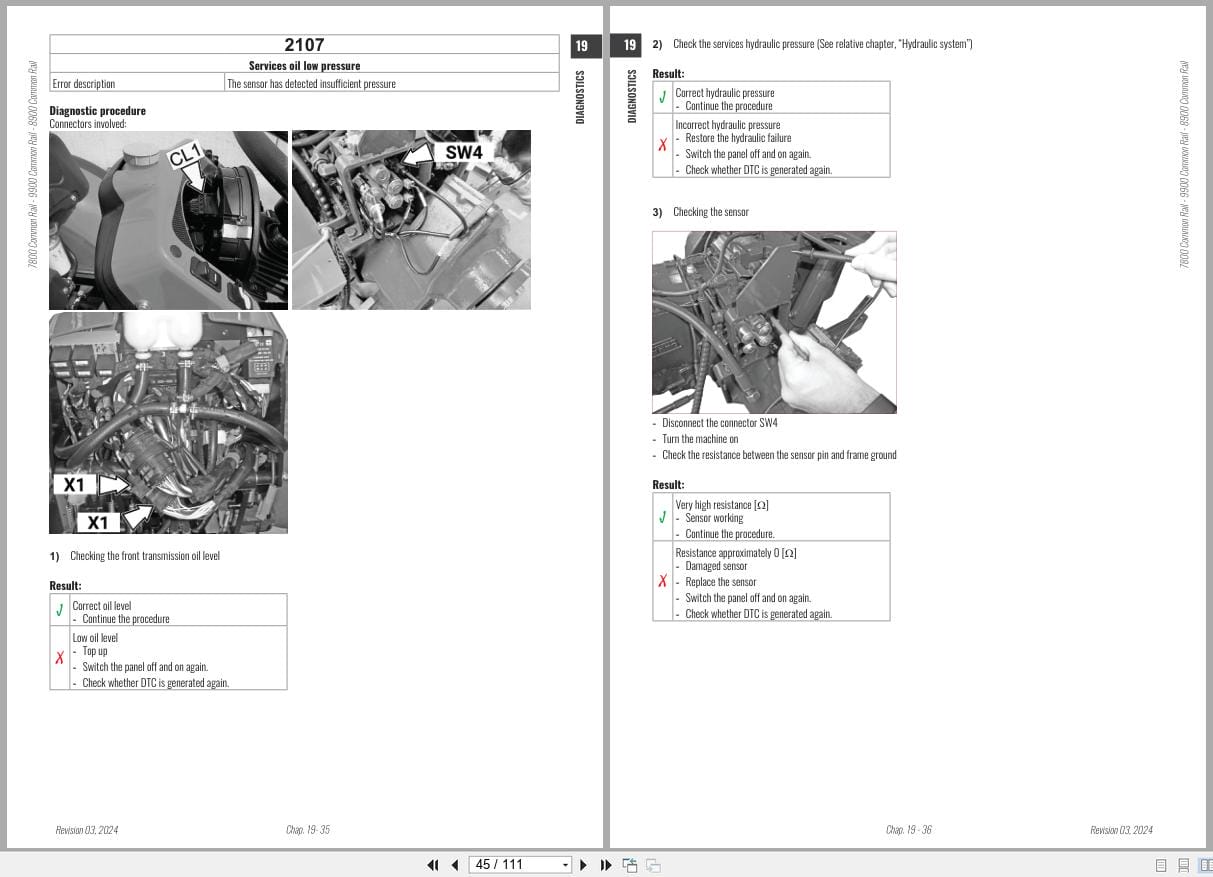

19. Diagnostics
19.1 Information
19.2 Diagnostics
19.3 Jcluster Error Codes (Dtc)
19.4 Reset Service
19.5 Teaching Mode
25. Changing The Battery
(Common Rail Engines)
25.1 Technical Specifications
25.2 Information On Charging
25.3 Changing The Battery

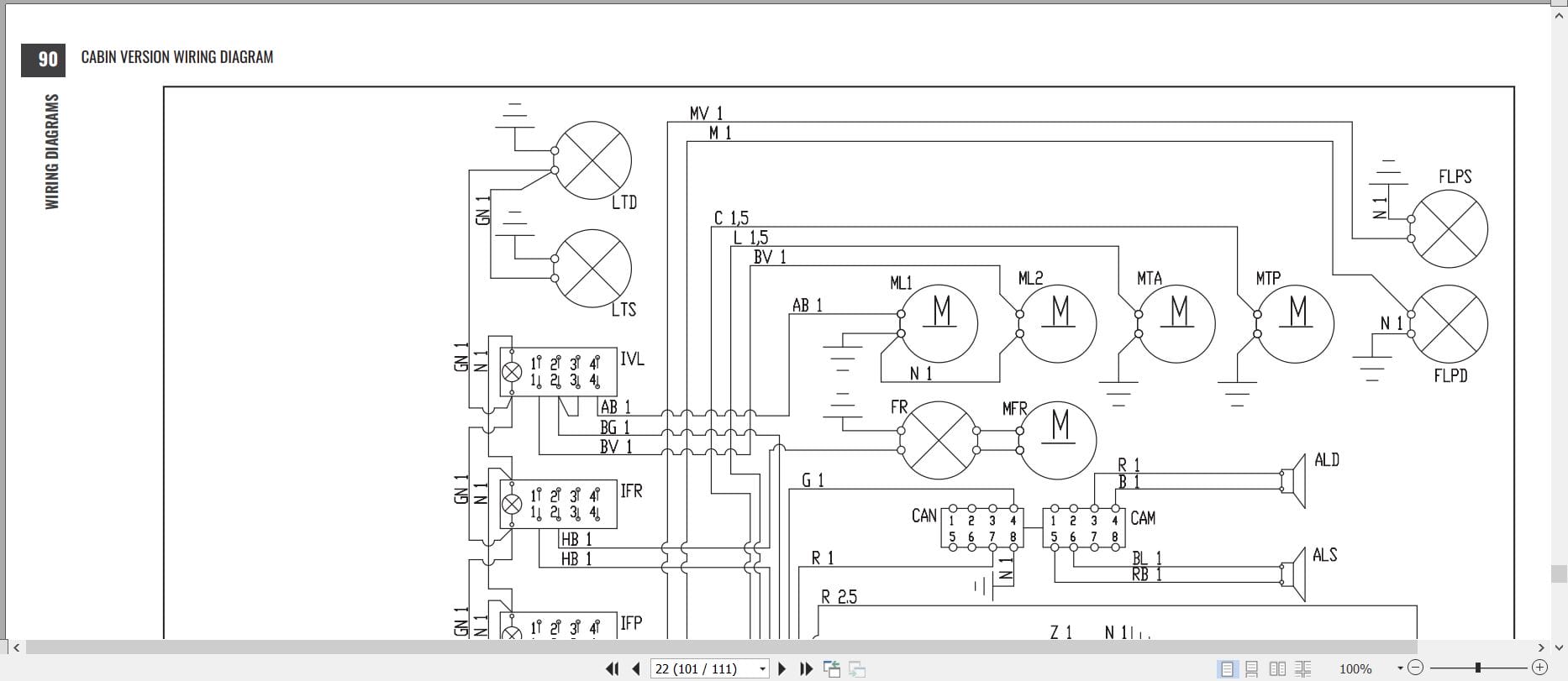

90. Wiring Diagrams
90.1 Wiring Diagrams
01.1 Symbols Used
01.2 General Precautions
01.3 Preliminary Maintenance Operations
01.4 Reference Operators
01.5 Personal Protective Equipment
19.1 Information
19.1.1 Jcluster Multi-Function Instrument
19.2 Diagnostics
19.2.1 Warning Messages On The Jcluster Multifunction Display
19.2.2 Table 8.2: Problems At Engine Start-Up Phase
19.2.3 Table 8.4: Problems In The Power Take-Off And Differential Units
19.2.4 Table 8.5: Power Lift Unit Problems
19.2.5 Table 8.6: Clutch, Brake And Steering Units Problems
19.2.6 Table 8.8: Cab Unit Problems
19.2.7 Table 8.7: Electrical System Problems
19.3 Jcluster Error Codes (Dtc)
19.4 Reset Service
19.4.1 Multi-Function Instrument Software Identification
19.4.2 Service Reset Procedure Type A
19.4.3 Service Reset Procedure Type B
19.5 Teaching Mode
19.5.1 Description
19.5.2 Software Identification
19.5.3 Teaching Mode Procedure Type A
19.5.4 Teaching Mode Procedure Type B
25.1 Technical Specifications
25.2 Information On Charging
25.3 Changing The Battery
Models Srx – Sx – Mach4 – Tony Sr (10900-9900-8900 Common Rail) – Sr 7600 Infinity
90.1 Wiring Diagrams
90.1.1 Functional Diagram
90.1.2 Engine Line Wiring Diagram
90.1.3 Front Line Wiring Diagram
90.1.4 Dashboard Line Wiring Diagram
90.1.5 Rear Line Wiring Diagram
90.1.6 Joystick Wiring Diagram
90.1.7 “Cabin” Version Wiring Diagram
90.1.8 Frame Version Wiring Diagram
90.1.9 “Superbrake” Line
90.1.10 E-Drive Wiring Diagram
90.1.11 A.C.S. Wiring Diagram “Automatic Clean System”
