Atlas Copco Boomer S1D Hydraulic Electrical Schematic 8999228500 EN

Size: 24.36 MB

Format: PDF

Language: English

Brand: Atlas Copco

Type of Machine: Boomer

Type of Manual: Electrical Schematic, Hydraulic Schematic, Pneumatic Diagram

Model: Atlas Copco S1D Boomer

Part Number: 8999228500

Number of Pages: 90 Pages

30 USD

Tags: ATLAS, Atlas Copco Boomer Manual, Atlas Copco Hydraulic Electrical Schematic, S1D

Description

Description

Contents:

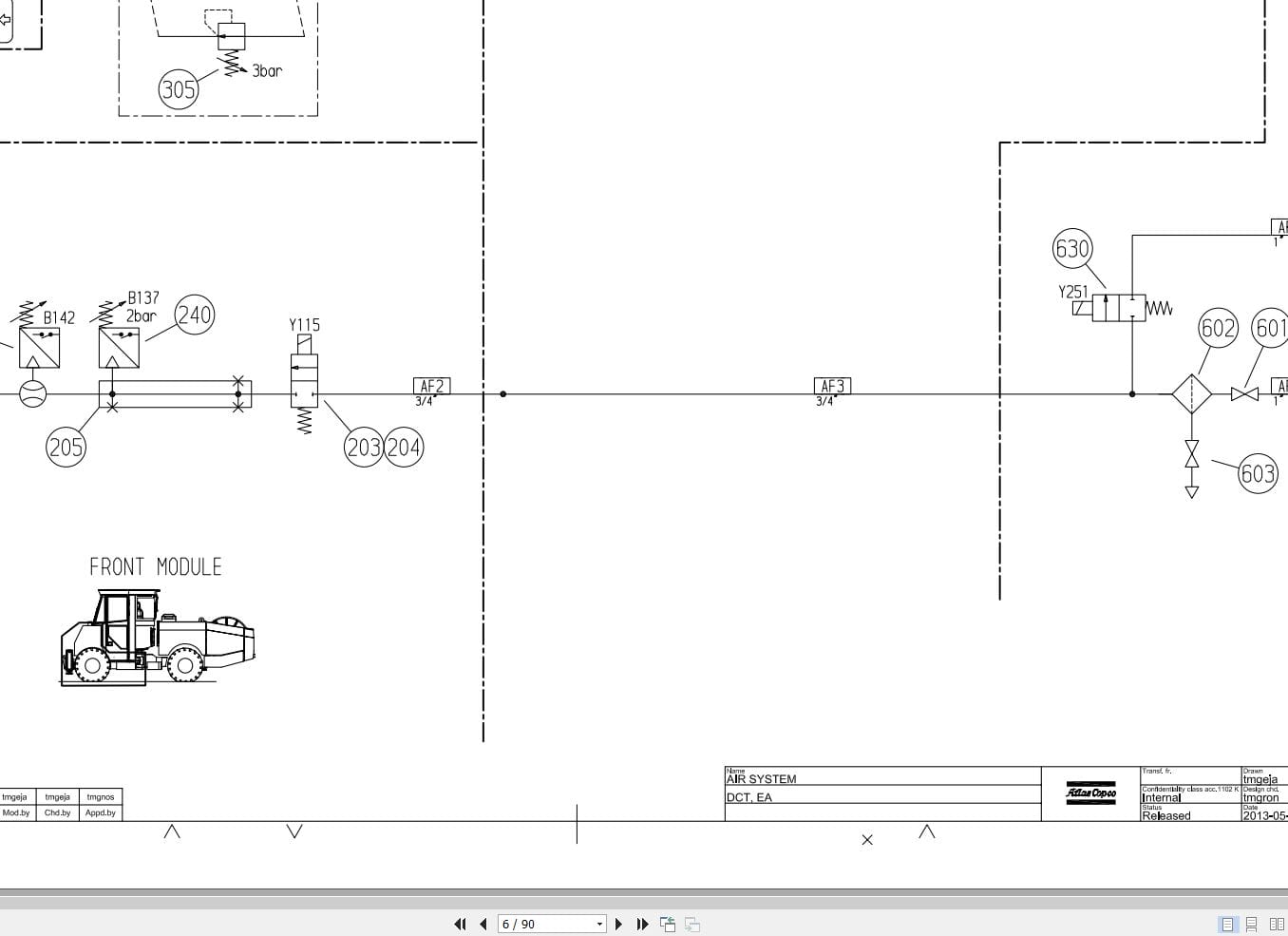

Pneumatic Diagram
Air Schedule /
Control Diagram
Troubl.Shooting / Drill Stop

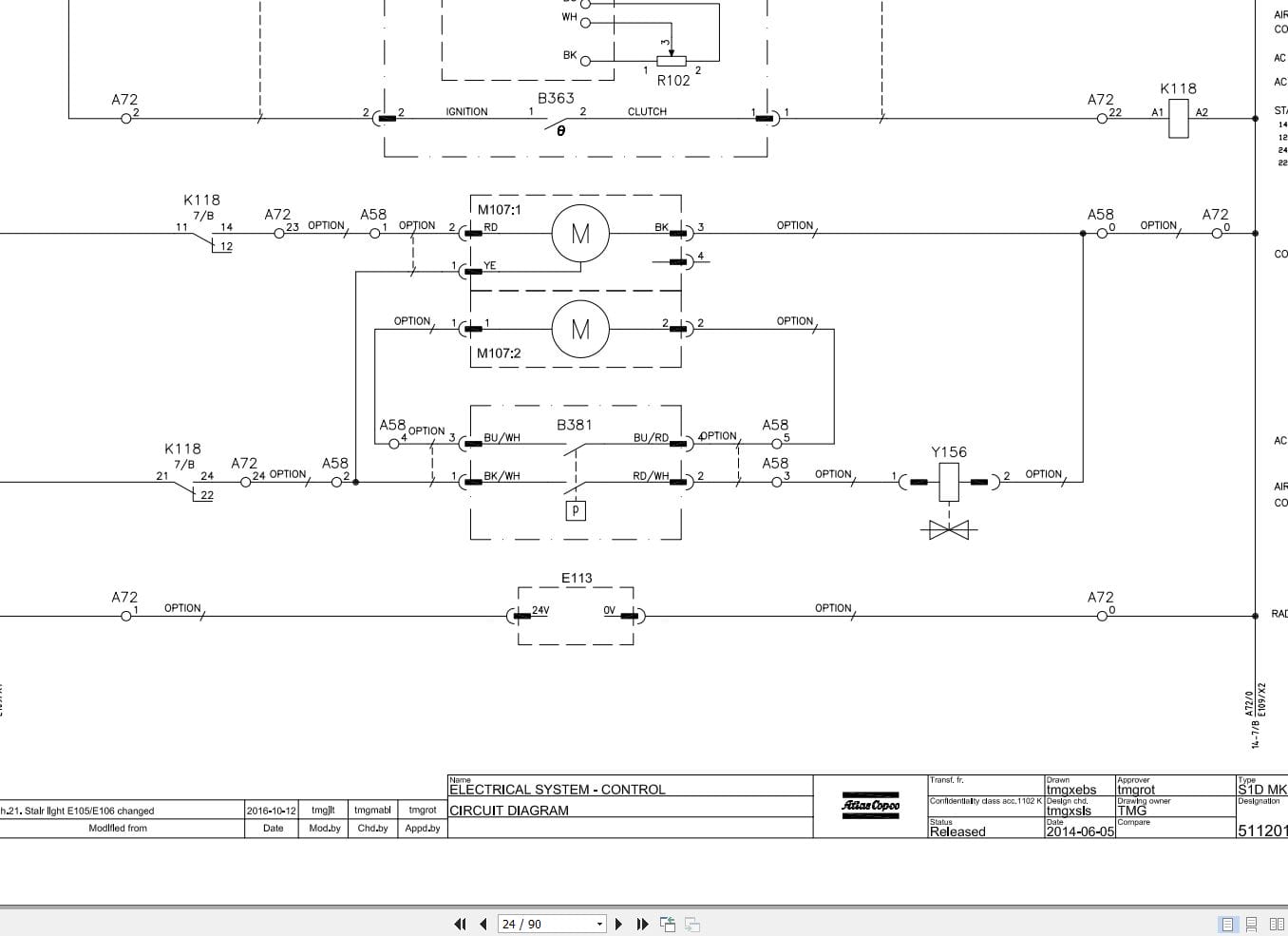

Electrical Diagram
Circuit Diagram / 24v
Connection Diag / 24v
Connection Diag / A10
Circuit Diagram / A10
Circuit Diagram / Emergency Stop A48
Connection Diag / Emergency Stop A10
Circuit Diagram / Dct Unit
Circuit Diagram / Drillpanel A20
Connection Diag / Hyd Oil Heater
Fire Protection Diagram
Scheme / Ansul Fire Suppression System

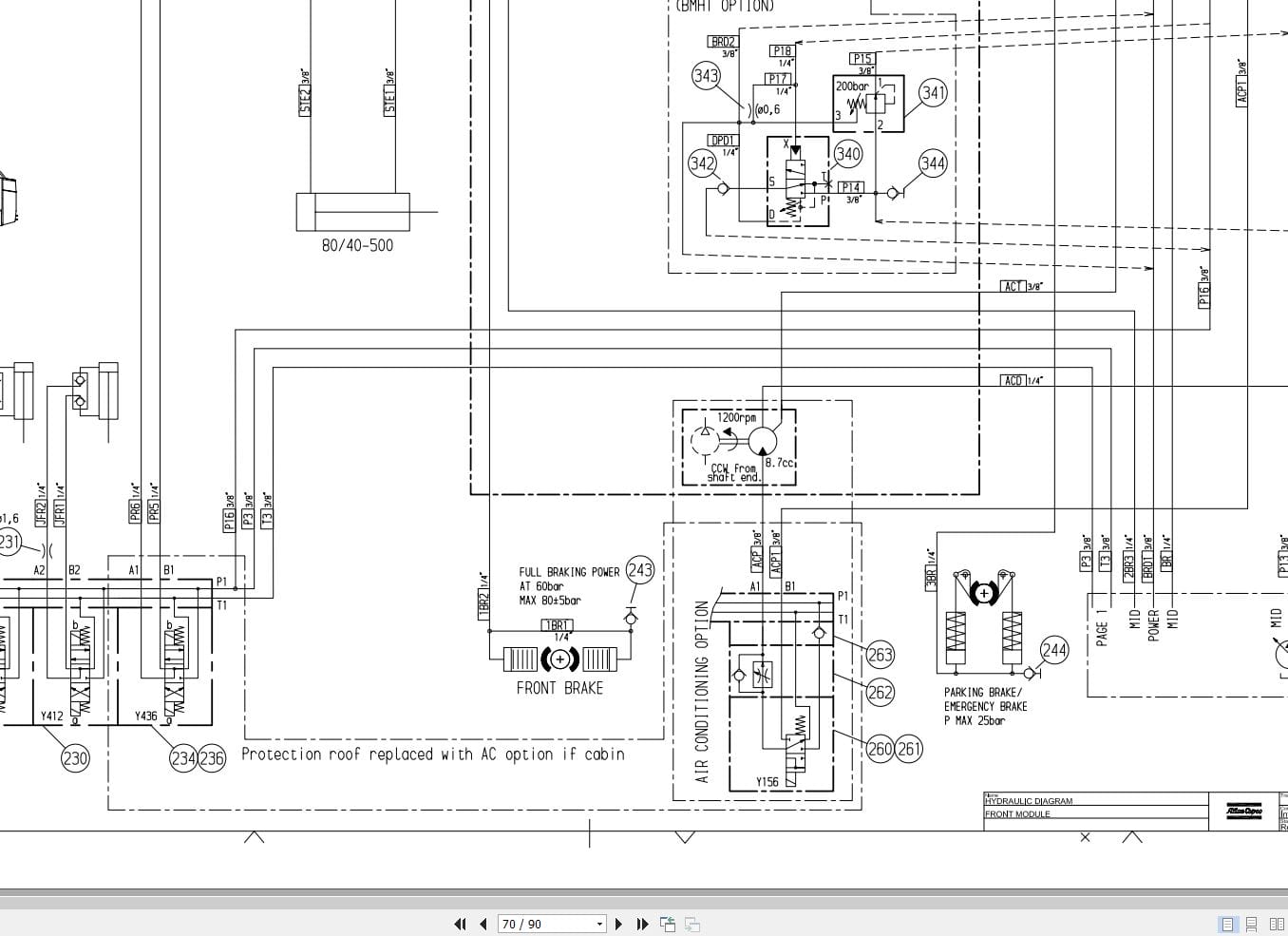

Hydraulic Diagram
Hydr. Schedule / Boom Module
Hydr. Schedule / Front Module
Hydr. Schedule / Cabin & Canopy
Hydr. Schedule / Bmht Pos.Pressure
Hydr. Diagram / Power Module
Hydr. Diagram / Middle Module
Hydr. Schedule / Rear Module
Mechanical – Overview
Dim. Drawing / Dim. Drawing
Dim. Drawing / Dim. Drawing
Coverage Area / Coverage Area
Dim. Drawing / Risk Area , Work
Dim. Drawing / Risk Area , Transport
Strop Instr. / Strop Instr.
