Name: Atlas Copco Rock Torque Axle 457 Service Manual RU
SKU: 549958
Price: 30.00 USD
Availability: InStock

Atlas Copco Rock Torque Axle 457 Service Manual RU (1)

Atlas Copco Rock Torque Axle 457 Service Manual RU (2)

Atlas Copco Rock Torque Axle 457 Service Manual RU (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

Atlas Copco Rock Torque Axle 457 Service Manual RU

Size: 4.25 MB

Format: PDF

Language: Russian

Brand: Atlas Copco

Type of Machine: Rock Torque Axle

Type of Manual: Service Manual

Model: Atlas Copco 457 Rock Torque Axle

Publication Date: 1993

Number of Pages: 57 Pages

30 USD

Tags: 457, ATLAS, Atlas Copco Rock Torque Axle Manual, Atlas Copco Service Manual

Description

Description

Contents:

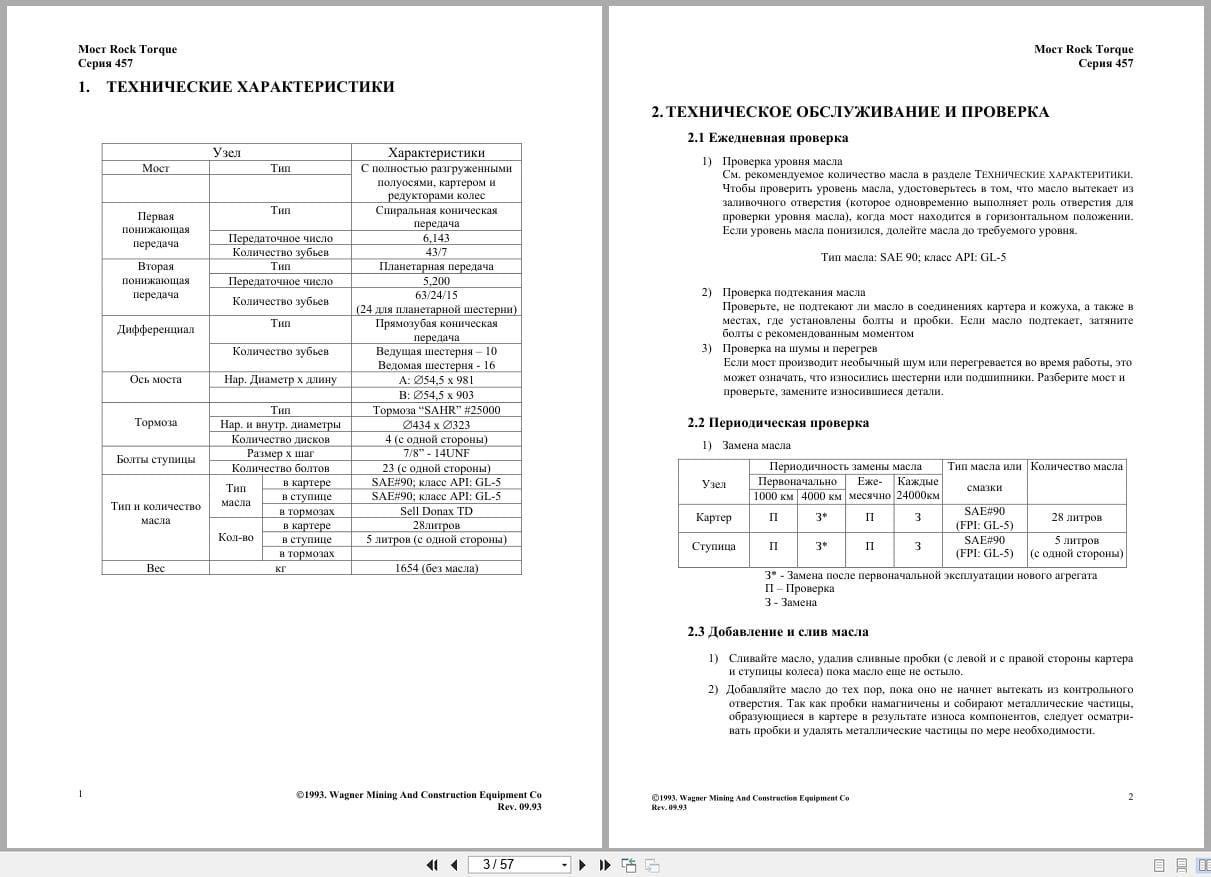

1. Technical Specifications
2. Maintenance And Inspection
3. Assembly Drawing
4. List Of Parts
5. Recommended Tightening Torques For Threaded Connections
6. Tool
7. Lubrication, Care And Maintenance Materials
8. Measuring Tools
9. Troubleshooting
10. Disassembly..

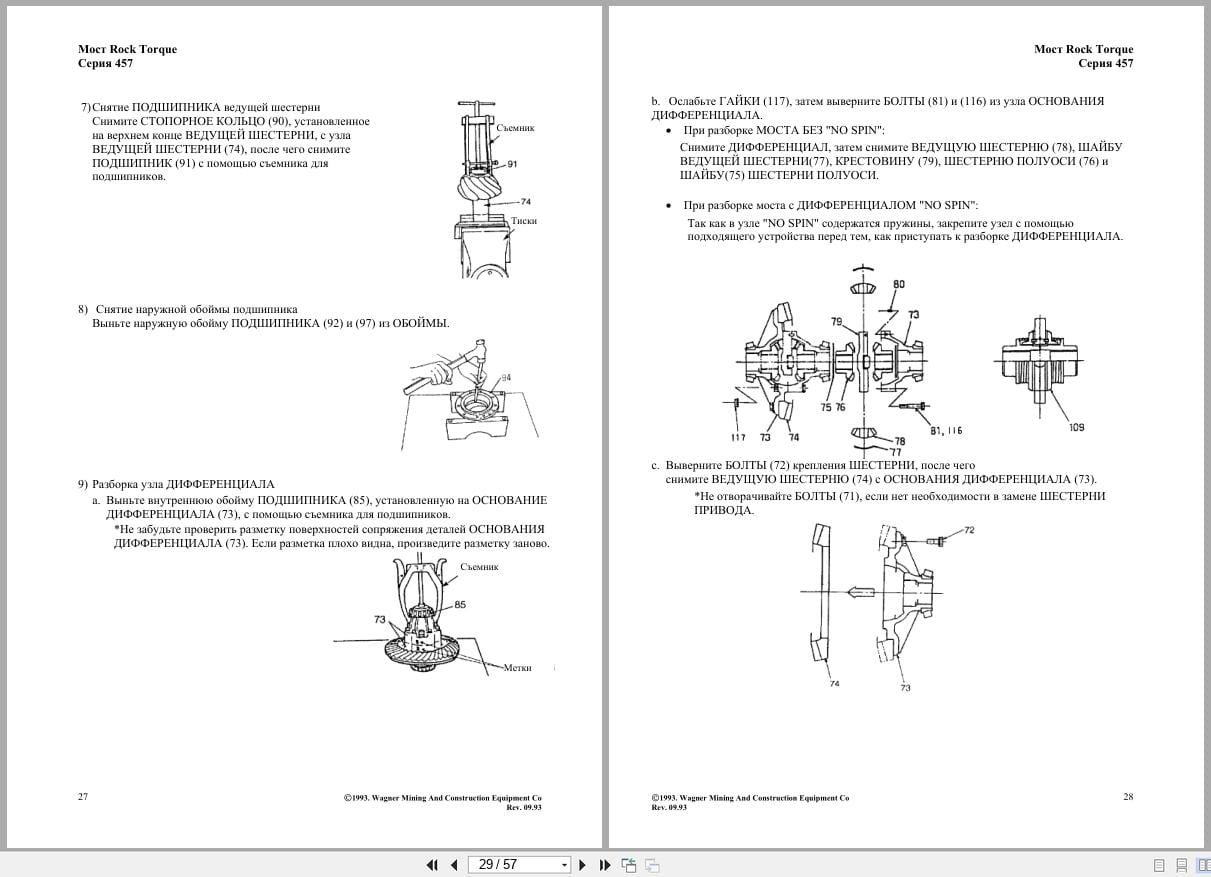

10.2 Dismantling The Bridge
10.3 Disassembling The Wheel Hub
10.4 Disassembling The â€œSahrâ€ Brakes
10.5 Disassembling The Planetary Gear
10.6 Disassembling The Ring Gear Assembly
10.7 Disassembling The Differential
11. Maintenance
12. Assembly
12.1 Assembly Of The Drive Pinion Unit
12.2 Assembly Of The Differential
12.3 Installation In The Differential Housing
12.4 Adjusting The Preload Of The Support Bearings
12.5 Measuring The Runout Of The Differential Drive Pinion
12.6 Installing The Drive Pinion Assembly
12.7 Checking And Adjusting The Engagement Of The Teeth Of The Drive Pinion
12.8 Installing The Differential Housing Assembly
12.9 Assembling The Ring Gear Unit.
12.10 Assembly Of The Planetary Gear Unit
12.11 Assembly Of â€œSahrâ€ Brakes
12.12 Assembly Of The Axle Case Unit
12.13 Assembly Of The Wheel Hub
12.14 Installation Of The Wheel Hub
12.15 Adjusting The Tension Of The Wheel Hub Bearing
12.16 Final Assembly Of The Planetary Gear
12.17 Brake Parts
11. Lubrication
