Name: Baroness 5-Unit Rotary Mower LM2700 Parts Catalog
SKU: 562956
Availability: InStock

Baroness 5 Unit Rotary Mower LM2700 Parts Catalog (1)

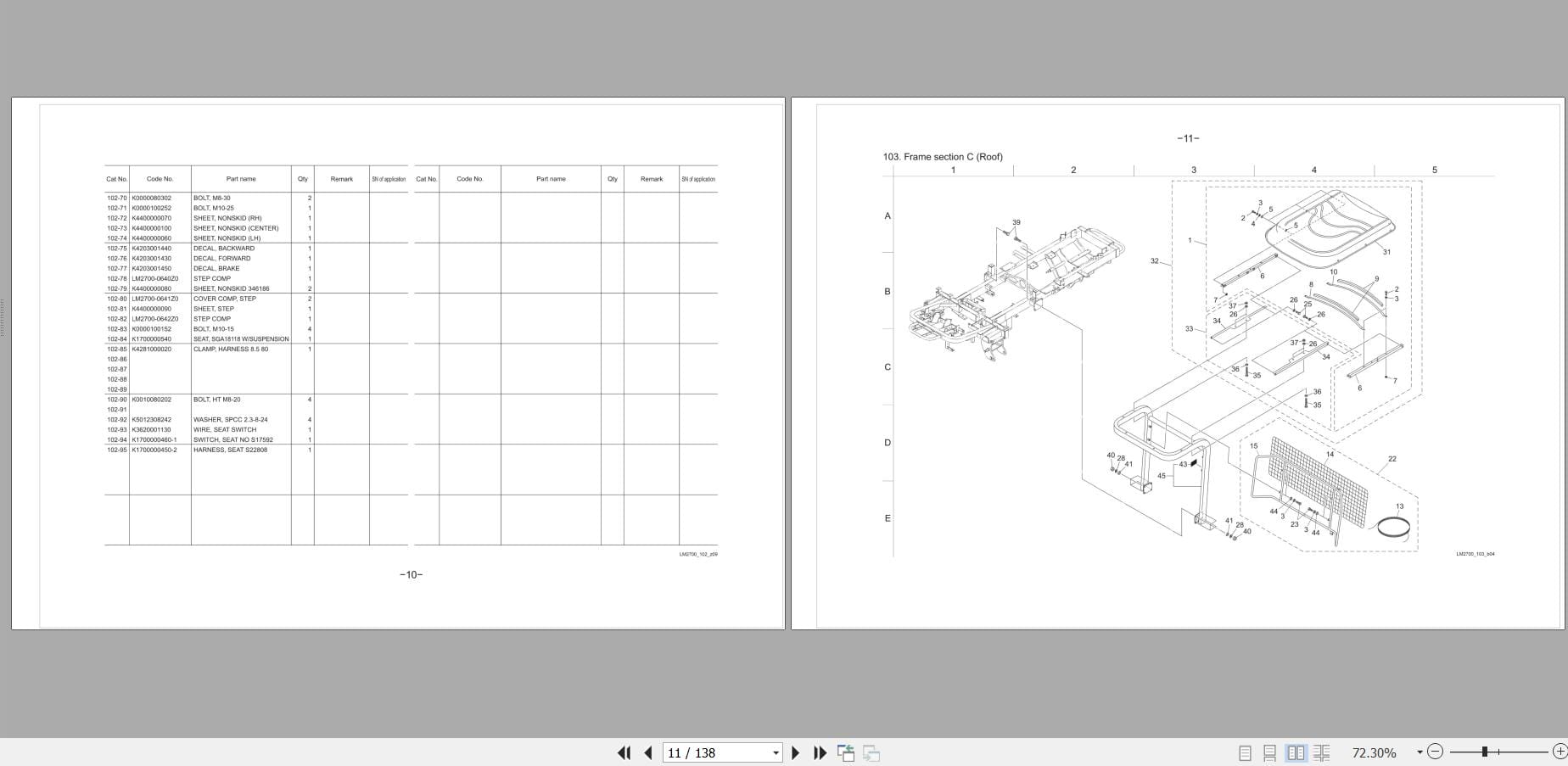

Baroness 5 Unit Rotary Mower LM2700 Parts Catalog (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Baroness 5-Unit Rotary Mower LM2700 Parts Catalog

Size: 109 MB

Format: PDF

Language: English

Brand: Baroness

Type of Machine: 5-Unit Rotary Mower

Type Of Manual: Parts Catalog

Model: Baroness LM2700 5-Unit Rotary Mower

Serial Number: 11228 And Up

Number Of Page: 128 Pages

10 USD

Tags: Baroness Parts Catalog, Baroness Rotary Mower Manual, LM2700

Description

Description

Contents:
Frame Section A For 26inch
Frame Section B For 22inch
Frame Section C (Roof)
Cover Section
Front Wheel Section
Rear Wheel Section
Pedal Section A (Brake) ,
Pedal Section B (Traveling)
Engine Section A
Engine Section B
Engine Section C For 26inch
Engine Section C For 22inch
Engine Section E (Engine)
Hydraulic Section A
Hydraulic Section B (Front Wheel Motor)
Hydraulic Section C (Rear Wheel Motor)
Hydraulic Section D (Oil Cooler)
Hydraulic Section E (Reel Motor / #1 ,4,5)
Hydraulic Section F (Reel Motor / #2,3)
Hydraulic Section G (Mower Cylimder)
Hydraulic Section H (Steering)
Lift Arm Section A (#1 ,4,5) For 26inch
Lift Arm Section B (#1 ,4,5) For 22inch
Lift Arm Section C (#2,3) For 26inch
Lift Arm Section D (#2,3) For 22inch
Accessories
Grass Catcher Section A For 26inch
Grass Catcher Section B For 22inch
Light Section
Mower Unit Section A For 26inch
Mower Unit Section B For 22inch
Mower Unit Section C (Reel Cutter) For 26inch
Mower Unit Section D (Reel Cutter) For 22inch
Mower Unit Section E For 26inch
Mower Unit Section F For 22inch
Front Roller Section A For 26inch
Front Roller Section B For 22inch
Rear Roller Section A For 26inch
Rear Roller Section B For 22inch
Groomer Section A (#1 ,3,5)
Groomer Section B (#1 ,3,5)
Groomer Section C (#1 ,3,5)
Groomer Section D (#2,4)
Groomer Section E (#2,4)
Groomer Section F (#2,4)
CR Brush Section A (B Type / #1 ,3,5 / Accompanied By Groomer)
CR Brush Section B (B Type / #1 ,3,5 / Accompanied By Groomer)
CR Brush Section C (A Type / #1 ,3,5)
CR Brush Section D (A Type / #1 ,3,5)
CR Brush Section E (B Type / #2,4 / Accompanied By Groomer)
CR Brush Section F (B Type / #2,4 / Accompanied By Groomer)
CR Brush Section G (A Type / #2,4)
CR Brush Section H (A Type / #2,4)
CR Brush Section E (B Type / Drive ASSY / Accompanied By Groomer)
CR Brush Section J (B Type / Drive ASSY / Accompanied By Groomer)
Front Scraper Section A
Rear Scraper Section A (Bar Type)
Rear Scraper Section A (Wire Type)
