Name: Bauer Grab System Instruction Manual
SKU: 478513
Availability: InStock

✓

Expert Support

✓

Full Speed

✓

100% Working

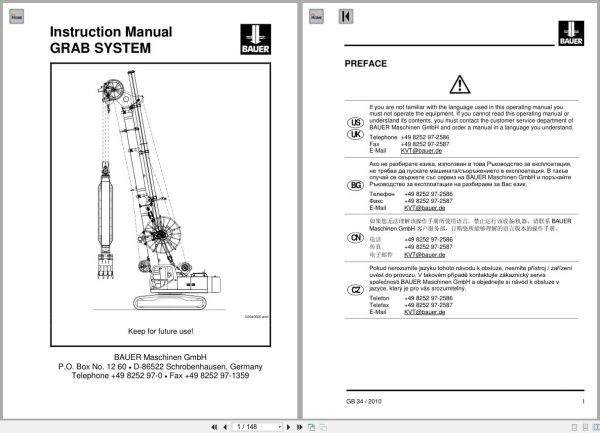

Bauer Grab System Instruction Manual

Size: 6.79 MB

Format: PDF

Language: English

Brand: Bauer

Type of Manual: Instruction Manual

Model: Bauer Grab System GB 034

Serial number: 05830119

Number of Pages: 148 Pages

10 USD

Tag: Bauer Heavy Equipment Manual

Description

Description

Contents:
1 Description
1.1 Intended And Authorized Use
1.2 Components
2 Safety
2.1 General Safety Requirements
2.2 Equipment Safety
2.3 Major Hazards
2.4 Safety Devices
2.5 Stability
2.6 Risk Of Rope Breaking When Adjusting Boom
2.7 Permissible Wind Speed
3 Technical Data
3.1 Dimensions
3.2 Equipment Data
3.3 Grab Operating Range
3.4 Rope Specifications
3.5 Noise Emission
3.6 Temperature Conditions
3.7 Exposure To Vibrations
4 Controls And Indicators
4.1 Operator’s Cab
4.2 Control Panel
4.3 Control Panel 2
4.4 Monitor Unit
5 Operation
5.1 Travelling And Steering
5.2 Upper Carriage Swing
5.3 Adjusting The Operating Radius

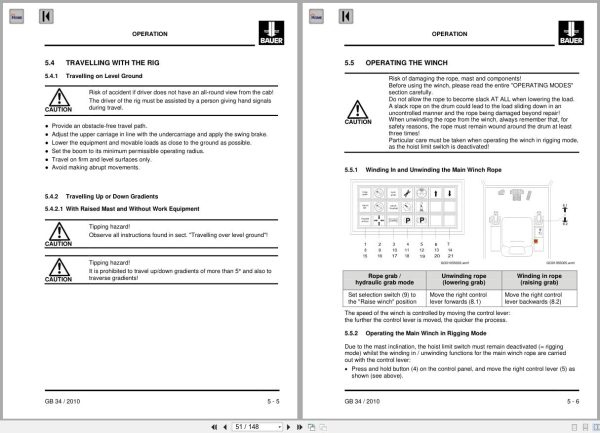

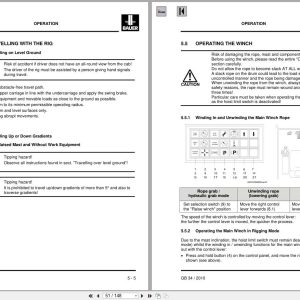

5.4 Travelling With The Rig
5.5 Operating The Winch
5.6 Operating Modes
5.7 Operating The Automatic Rope Tensioning Facility
5.8 Operating Special Grab Functions
6 Start-Up / Shut-Down
6.1 Start-Up
6.2 Shut-Down
7 Rigging / De-Rigging
7.1 Guidelines For Rigging And De-Rigging
7.2 Wax Removal
7.3 Extending The Crawlers
7.4 Mounting The Counterweight
7.5 Assembling The Boom
7.6 Assembly Instructions: Spring Accumulators
7.7 Assembling The Mdsg System
7.8 Installing The Cable Drum
7.9 Hydraulic Connections
7.10 Installing The Main Rope
7.11 Installing The Rope Swivel
7.12 Installing The Grab
7.13 Raising The Boom
7.14 Disassembling The Equipment
7.15 Lowering The Boom
7.16 Removing The Counterweight
7.17 Retracting The Crawlers
8 Transport
8.1 Safety Guidelines For Transport
8.2 Measures To Take For Transport
8.3 Driving On / Off A Low Loader
8.4 Lifting Points
8.5 Tying Down
8.6 Transport Data
9 Maintenance
9.1 Safety Guidelines For Maintenance
9.2 Maintenance Intervals
9.3 Maintenance Plan
9.4 Maintenance During Longer Periods Of Standstill
9.5 Lubrication Plan
9.6 Hydraulic System
9.7 Winches
9.8 Wire Rope Accessories
9.9 Mdsg Lubrication Plan
9.10 Crawler Track Assemblies
9.11 Bolted Connections
10 Lubricants / Tables
10.1 Lubricants
10.2 Operating Fluids
10.3 Bolt Torque Values
10.4 Conversion Table
