Name: Bell Articulated Dump Truck B16B 6X2 Parts Manual 870150
SKU: 452695
Availability: InStock

Bell Articulated Dump Truck B16B 6X2 Parts Manual 870150 1

Bell Articulated Dump Truck B16B 6X2 Parts Manual 870150 2

Bell Articulated Dump Truck B16B 6X2 Parts Manual 870150 3

✓

Expert Support

✓

Full Speed

✓

100% Working

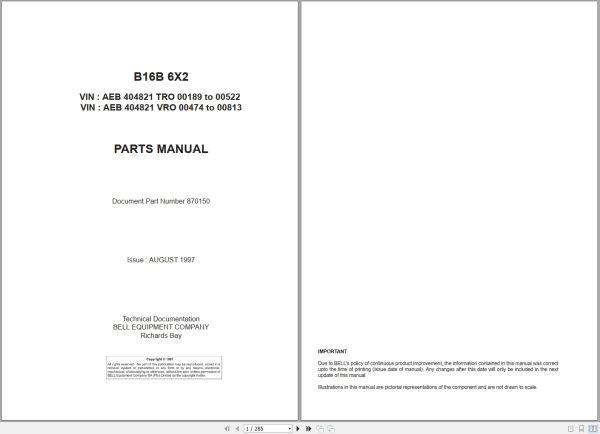

Bell Articulated Dump Truck B16B 6X2 Parts Manual 870150

Size: 5.90 MB

Format: PDF

Language: English

Brand: Bell

Type of Machine: Articulated Dump Truck

Type of Manual: Parts Manual, ELectrical Schematic

Model: Bell B16B 6X2 Articulated Dump Truck

VIN: AEB 404821 TRO 00189 to 00522 ; AEB 404821 VRO 00474 to 00813

Part Number: 870150

Publication Date: 1997

Number of Pages: 285 Pages

10 USD

Tag: BELL Heavy Equipment Manual

Description

Description

Contents:
Section 1 General Information
Bulletins
List Of Abbreviations
Ordering Of Parts
Machine Dimension
Serial Number Plates
Service Kits
Section 2 Engine
Engine And Miscellaneous Parts
Engine Coupling (Kuzel K030)
Air Cleaner System (Ade 366t)
Air Cleaner (12 Inch)
Pre Cleaner (127 Mm Outlet)
Exhaust System
Fuel System (Ade 366ti)
Throttle Assembly (Upto 09.12.95)
Throttle Assembly (From 10.12.95)
Stop Cable Assembly
Cooling System
Baffle Rubbers (Cooling System)

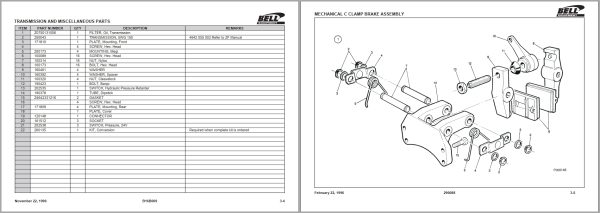

Section 3 Power Train
Transmission And Miscellaneous Parts
Mechanical C Clamp Brake Assembly
Oil Cooler Assembly
Propshaft Layout
Propshaft Assembly
Propshaft Assembly
Front Axle And Miscellaneous Parts
Axle Assembly (Dual – 1350 Crs)
Front Axle Assembly (2.84×4.82)
Differential Assembly (2,84:1)
Brake System
Brake Caliper
Brake Assembly (Drum)
Wheel Assembly (14.00×20)
Wheel Assembly (15.00×20)
Section 4a Hydraulic System
Hydraulic System Front
Hydraulic System Rear
Hydraulic Tank
Hydraulic Filter/ Breather Assembly
Control Valve (One Bank)
Priority Valve
Steering Valve (From 02.09.94)
Steering Valve
Hydraulic Pump
Hydraulic Filter Assembly
Hydraulic Filter Assembly
Tip Cylinder
Steering Cylinder
Special Tools
Section 4b Pneumatic System
Pneumatic System Front (Upto 31.08.95)
Pneumatic System Front (From 01.10.96)
Pneumatic System Rear
Retarder System
Air Spring Assembly
Push Button Valve
Park Brake Spring Actuator
Brake Actuator Assembly(Spring- Type 2430)
Relay Emergency Valve
Park Brake Valve
Pressure Protection Valve
Quick Release Valve
Check Valve
Levelling Valve
Unloader Valve With Integral Air Drier Assembly
Brake Valve
Control Valve
Brake Valve Adaptor
Unloader Valve

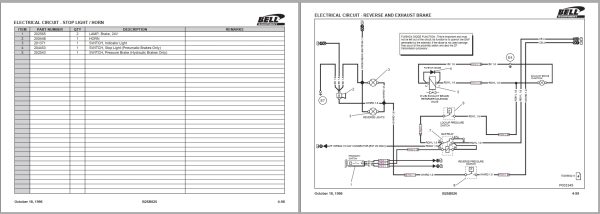

Section 4c Electrical System
Electrical Circuit – Starting/Charging
Electrical Circuit – Lighting
Electrical Circuit – Stop Light/ Horn
Electrical Circuit – Reverse And Exhaust Brake
Electrical Circuit – Gauges And Warning Lights
Electrical Circuit – Indicator / Hazard
Electrical Circuit – Blower And Wiper
Electrical Circuit – Aircon And Wiper
Est 17 Transmission (Cab)
Est 17 Transmission (Exterior)
Est 25 Transmission (Cab)
Est 25 Transmission (Exterior)
Connectors 1 & 2
Connectors 3,4,5 & 6
Connectors 7,8,9 & 10
Electronic Speedo And Other Accessories
Instrument Panel Assembly
Cold Start Instrument Panel
Distribution Box
Battery,Clamps And Cables
Windscreen Wiper Assembly
Headlight (Upto 05 Sept 93)
Indicator
Horn Assembly
Special Tools
Section 5 Frame And Body
Cab And Cowlings
Bonnet Latch
Cab Exterior Fittings (Up To Tba)
Cab Exterior Fittings (From Tba)
Cab Exterior Fittings (From Tba)
Cab Interior Fittings
Door Handle Assembly
Seat Assembly (From Oct 1993)
Steering Column Assembly (Upto 01/07/96)
Steering Column Assembly(From 01/07/96)
Blower Assembly
Air Conditioner Assembly(Reddot)
Air Conditioner Assembly(Reddot)
Air Conditioner Assembly(Sanden)
Front Frame
Rear Frame
Articulation And Oscillation Assembly
Steering Cylinder Mountings
Tip Cylinder Mountings
Bin Prop / Support Extension Assembly
Reverse Warning Buzzer Mounting Assembly
Bin (9mÂ³)
Decals Left Hand Side
Decals Right Hand Side
Special Tools
