Name: Bomag BC 672-1172 Tier 4i Function.213 Wiring Diagram 2013 EN DE
SKU: 300975
Price: 30.00 USD
Availability: InStock

-40%

Bomag BC 672 1172 Tier 4i Function.213 Wiring Diagram 2013 EN DE

Bomag BC 672 1172 Tier 4i Function.213 Wiring Diagram 2013 EN DE 1

✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag BC 672-1172 Tier 4i Function.213 Wiring Diagram 2013 EN DE

This is PDF file,check detail below, you will get it after pay. Any problem you can contact admin for more information.

30 USD

Tag: Bomag Heavy Equipment Manual

Description

Description

Bomag BC 672-1172 Tier 4i Function.213 Wiring Diagram 2013 EN DE
Size: 3.96 MB
Format: PDF
Interface: English, German
Brand: Bomag
Type of Manual: Wiring Diagram
Machine: Bomag BC 672-1172 Tier 4i Machinery
Publicaton: 2013
Function.213
Number Of Page: 54 Pages

Index:

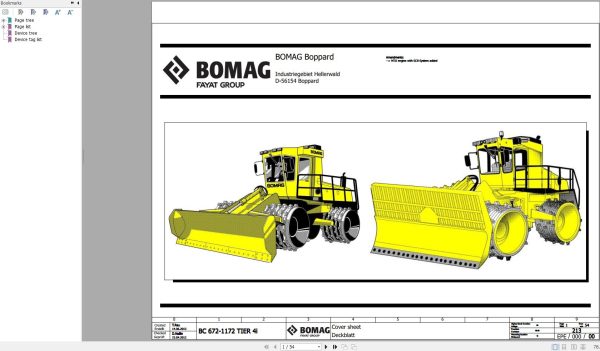

Cover sheet
Table of Contents
Structure identifier overview
Ignition switch, Battery, Pre-glowing, Generator, Start
fuses machine
Supply controller
Fuses cabin
Engine controller MR

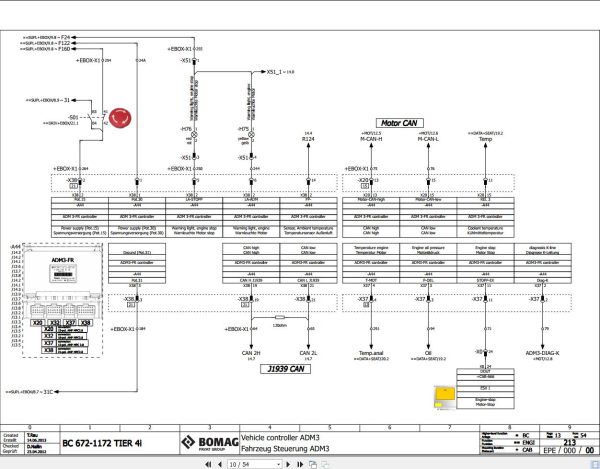

Vehide controller ADM3
SCR-controller
Reversalblowei WIF-sensor fuel filtei Heating dryer SCR
communication CAN1 / CAN2
Indicators BAUSER 1
Indicators BAUSER 2
Accelerator pedal, brake, override system
Selection of travel direction and speed ranges
Wheel motors
Central lubrication system and tachograph
Bomag telematics
Steering
Blade and Shovel funktions
Air conditioning unit
Sockets, warning horn, windscreen wipers and washers
Camera, radio, mirror and rear window heating, rotary beacon
Independent vehicle heater and fresh air blower
Working lights
Overview
Illustration Xl
CAN-Bus Overview
Device tag list
Terminal strip overview Xl
Plug overview
Pin overview A44
Pin overvlew A48
Pin overview A66
Pin overview A66
Pin overview A70
Pin overview A140
