Name: Bomag BC 873 RB-5, BC 973 RB-5, BC 1173 RB-5 Function.662 Hydraulic Schematic 2019 EN DE
SKU: 301052
Availability: InStock

-33%

Bomag BC 873 RB 5 BC 973 RB 5 BC 1173 RB 5 Function.662 Hydraulic Schematic 2019 EN DE

Bomag BC 873 RB 5 BC 973 RB 5 BC 1173 RB 5 Function.662 Hydraulic Schematic 2019 EN DE 1

✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag BC 873 RB-5, BC 973 RB-5, BC 1173 RB-5 Function.662 Hydraulic Schematic 2019 EN DE

This is PDF file,check detail below, you will get it after pay. Any problem you can contact admin for more information.

Original price was: 30.Current price is: 20. USD

Tag: Bomag Heavy Equipment Manual

Description

Description

Bomag BC 873 RB-5, BC 973 RB-5, BC 1173 RB-5 Function.662 Hydraulic Schematic 2019 EN DE
Size: 839 KB
Format: PDF
Interface: English, German
Brand: Bomag
Type of Manual: Hydraulic Schematic
Machine: Bomag BC 873 RB-5, BC 973 RB-5, BC 1173 RB-5 Machinery
Publicaton: 2019
Function.662
Number Of Page: 16 Pages

Index:

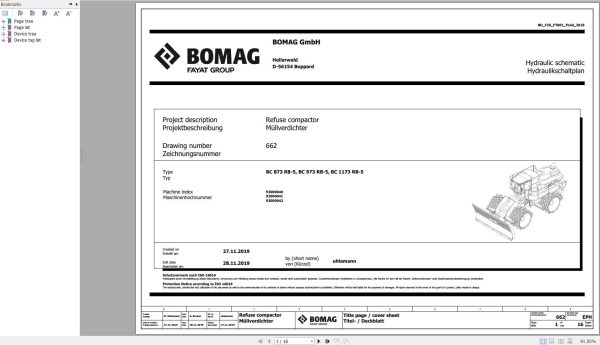

1 Title page I cover sheet
2 Table of

Index:1-16
3 Overview
4 Drive cicuit right
5 Drive circuit left

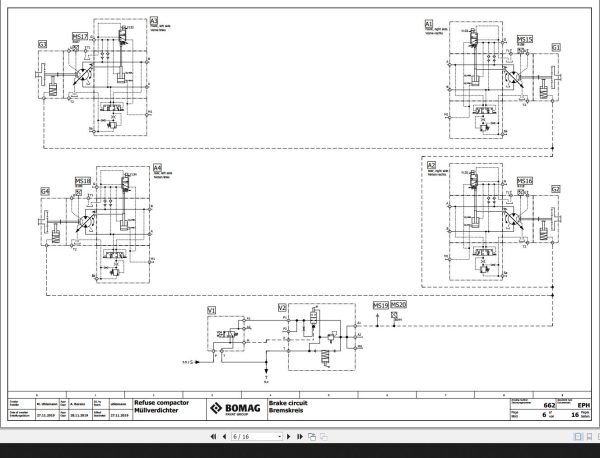

6 Brake cicuit
7 Steering and working functions
8 Fan drive and hood opening system
9 Tank
10 Gear box od
11 Device tag list: Al – Gi
12 Device tag list: G2 – M515
13 Device tag list: MS16 – MS33
14 Device tag list: M534 – fr1551
15 Device tag list: P1.1 – V9
16 Device tag list: Zi – Z6
