Name: Bomag BF 200-2 Function.451 Hydraulic Schematic 2019 EN DE
SKU: 301091
Availability: InStock

-33%

Bomag BF 200 2 Function.451 Hydraulic Schematic 2019 EN DE

Bomag BF 200 2 Function.451 Hydraulic Schematic 2019 EN DE 1

✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag BF 200-2 Function.451 Hydraulic Schematic 2019 EN DE

This is PDF file,check detail below, you will get it after pay. Any problem you can contact admin for more information.

Original price was: 30.Current price is: 20. USD

Tag: Bomag Heavy Equipment Manual

Description

Description

Bomag BF 200-2 Function.451 Hydraulic Schematic 2019 EN DE
Size: 1.28 MB
Format: PDF
Interface: English, German
Brand: Bomag
Type of Manual: Hydraulic Schematic
Machine: Bomag BF 200-2 Machinery
Publicaton: 2019
Function.451
Number Of Page: 22 Pages

Index:

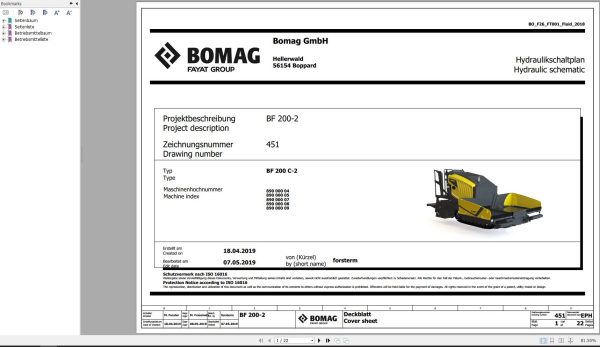

Cover sheet
Table of Index: 1 – 17.c
Layout
Topology
Drive circuit left
Drive circuit right

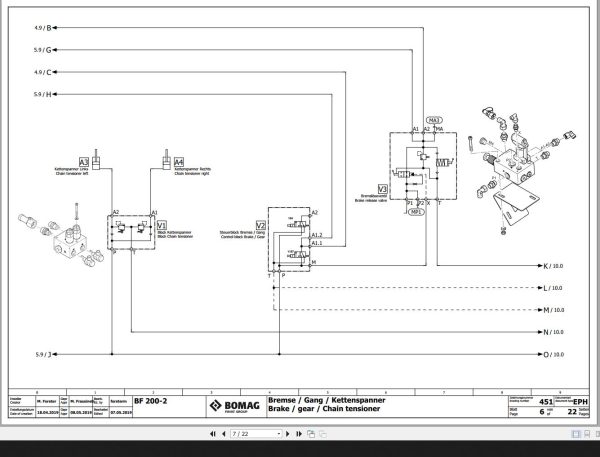

Brake / gear / Chain tensioner
Conveyor belt / augers / Vibration
Option: tamper
Cylinder functions
Cylinder functions
Return flows / Heat exchanger / fan
Emergency pump
Hydraulic schematic Screed
Screed in/out / crown
Motors Vibration
Option: Motors tamper
Option: hydraulic Side plate
Device tag list : – A17
Device tag list : AiS – MA3
Device tag list: MB1 – V2
Device tag list : V3 – Z4
