Name: Bomag BF600-2C Hydraulic Schematic Drawing No.89280076 2014
SKU: 302484
Availability: InStock

-33%

Bomag BF600 2C Hydraulic Schematic Drawing No.89280076 2014

Bomag BF600 2C Hydraulic Schematic Drawing No.89280076 2014 1

✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag BF600-2C Hydraulic Schematic Drawing No.89280076 2014

Original price was: 30.Current price is: 20. USD

Tag: Bomag Heavy Equipment Manual

Description

Description

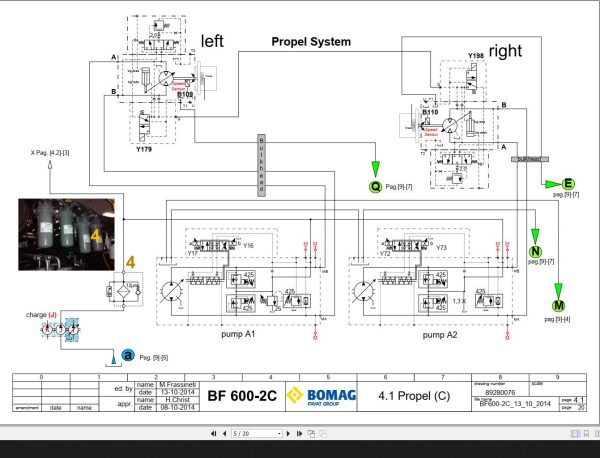

Bomag BF600-2C Hydraulic Schematic Drawing No.89280076 2014
Size: 3.03 MB
Format: PDF
Interface: English
Brand: Bomag
Machine: Machinery
Manual: Hydraulic Schematic
Model: Bomag BF600-2 C Machinery
Publication: 2014
Drawing No.89280076
Number Of Pages: 20 Pages

Index:
1_Cover
2_ Directory
3_ Engine Pumps
3.1_ Cold Start
4.1 Propel (C)
4.2 Brake/Chain tens
5 _ Fan Drive
6 _ vibration / tamper
7_auger/conveyor left
8_auger/conveyor right
9 _ Return flow
10_Service Pump
11.1. LCS
11.2 _ Double LCS (Optional)
12_Service a
13 Service b
14 _ El. Compact unit Luxory Kit
15_ Kleenoil Filter (Optional)
16_ Fume Extraction
16_ Filling procedure
