Name: Bomag BF800-2 Hydraulic Schematic Function.562 2018 EN DE
SKU: 302557
Availability: InStock

-33%

Bomag BF800 2 Hydraulic Schematic Function.562 2018 EN DE

Bomag BF800 2 Hydraulic Schematic Function.562 2018 EN DE 1

✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag BF800-2 Hydraulic Schematic Function.562 2018 EN DE

Original price was: 30.Current price is: 20. USD

Tag: Bomag Heavy Equipment Manual

Description

Description

Bomag BF800-2 Hydraulic Schematic Function.562 2018 EN DE
Size: 9.95 MB
Format: PDF
Interface: English, German
Brand: Bomag
Machine: Machinery
Manual: Hydraulic Schematic
Model: Bomag BF 800-2 Machinery
Publication: 2018
Function.562
Number Of Pages: 24 Pages

Index:

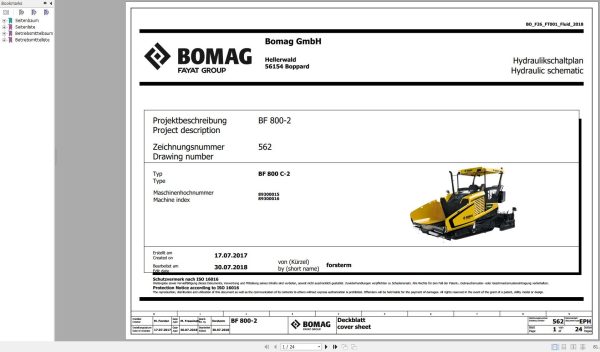

cover sheet
Table of Indexs: 1 – 20.d
Overview
Drive circuit left
Drive circuit right

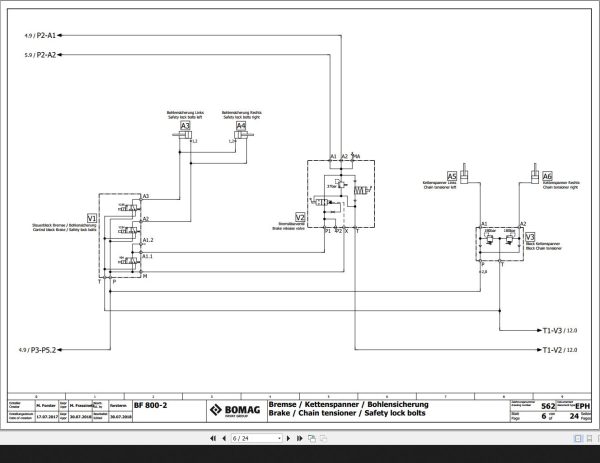

Brake / Chain tensioner / Safety lock bolts
Cold start device
Auger / Conveyor belt left
Auger / Conveyor belt right
Vibration / tamper
Fan drive
Return flows / heat exchanger
Pump cylinder functions
Cylinder functions
Cylinder functions screed
LCS
Option: Luxury kit
Option: Kleenoil Filter
Option: ERD (emission reduction device)
Device tag list: – A17
Device tag list : A18 – A35
Device tag list : A36 – P4.1
Device tag list: P4.2 – V9
Device tag list : ViO – Z9
