Name: Bomag BM1x00-15 Hydraulic Schematic Tier 4 final Function.577 2018 EN DE
SKU: 302700
Availability: InStock

-50%

Bomag BM1x00 15 Hydraulic Schematic Tier 4 final Function.577 2018 EN DE

Bomag BM1x00 15 Hydraulic Schematic Tier 4 final Function.577 2018 EN DE 1

✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag BM1x00-15 Hydraulic Schematic Tier 4 final Function.577 2018 EN DE

Original price was: 20.Current price is: 10. USD

Tag: Bomag Heavy Equipment Manual

Description

Description

Bomag BM1x00-15 Hydraulic Schematic Tier 4 final Function.577 2018 EN DE
Size: 698 KB
Format: PDF
Interface: English, German
Brand: Bomag
Machine: Machinery
Manual: Hydraulic Schematic
Model: Bomag BM 1×00-15 Tier 4 final Machinery
Publication: 2018
Function.577
Number Of Pages: 17 Pages

Index:

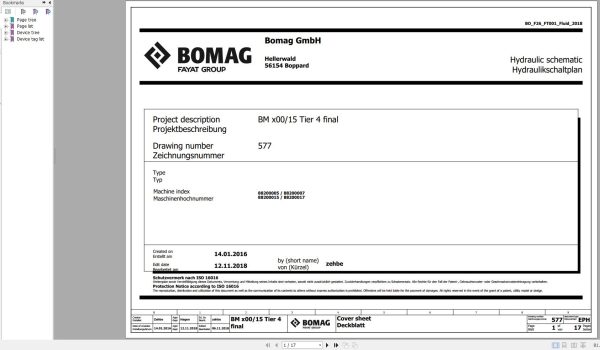

1 Cover sheet
2 Table of Indexs: 1-17
3 Overview

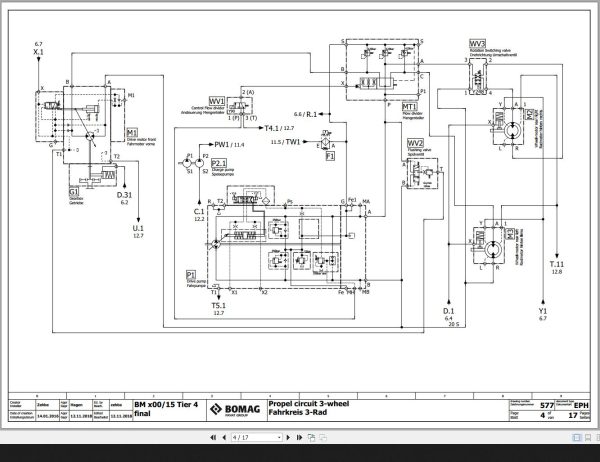

4 Propel circuit 3-wheel
5 Propel circuit 4-wheel
6 Steering and brake
7 Cylinder Functions 1
8 Conveyor belt
9 Cylinder Functions 2
10 Conveyor and options
11 Water installation
12 Return flows
13 Device tag list: Al – C2
14 Device tag list: C3 – M4
15 Device tag list: M15 – V1
16 Device tag list:WV1 -Z3
17 Device tag list: Z4 – Z20
