Name: Bomag BM1x00-15 Hydraulic Schematic Tier 4f Stage V Function.631 2017 EN DE
SKU: 302707
Availability: InStock

-50%

Bomag BM1x00 15 Hydraulic Schematic Tier 4f Stage V Function.631 2017 EN DE

Bomag BM1x00 15 Hydraulic Schematic Tier 4f Stage V Function.631 2017 EN DE 1

✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag BM1x00-15 Hydraulic Schematic Tier 4f Stage V Function.631 2017 EN DE

Original price was: 20.Current price is: 10. USD

Tag: Bomag Heavy Equipment Manual

Description

Description

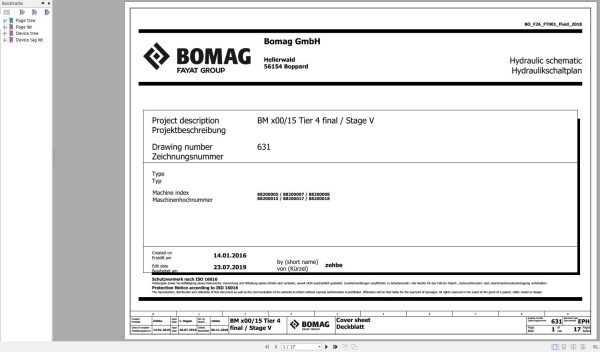

Bomag BM1x00-15 Hydraulic Schematic Tier 4f Stage V Function.631 2017 EN DE
Size: 688 KB
Format: PDF
Interface: English, German
Brand: Bomag
Machine: Machinery
Manual: Hydraulic Schematic
Model: Bomag BM 1×00-15 Tier 4f Stage V Machinery
Publication: 2017
Function.631
Number Of Pages: 17 Pages

Index:
1 Cover sheet
2 Table of Indexs:1-17
3 Overview
4 Propel circuit 3-wheel

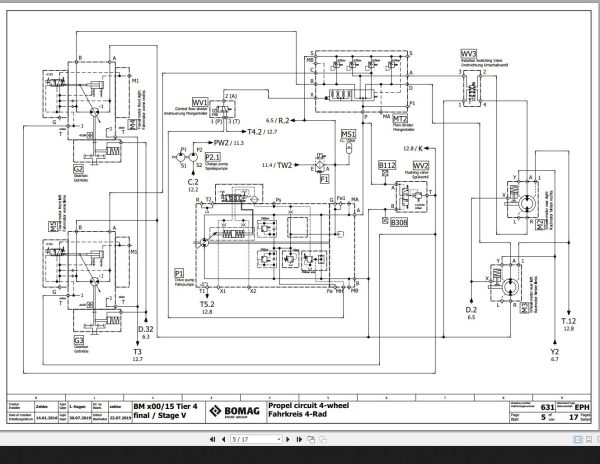

5 Propel circuit 4-wheel
S Steering and brake
7 Cylinder Functions 1
8 Conveyor belt
9 Cylinder Functions 2
10 Conveyor and options
11 Water installation
12 Return flows
13 Device tag list : Al – C2
14 Device tag list: C3 – M4
15 Device tag list: M5 – WV1
16 Device tag list : WV2 – Z5
17 Device tag list : Z6 – Z20
