Name: Bomag BMx00-15 Tier 4i Hydraulic Schematic Function 264 2014 EN DE
SKU: 304572
Availability: InStock

-50%

Bomag BMx00 15 Tier 4i Hydraulic Schematic Function 264 2014 EN DE

Bomag BMx00 15 Tier 4i Hydraulic Schematic Function 264 2014 EN DE 1

✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag BMx00-15 Tier 4i Hydraulic Schematic Function 264 2014 EN DE

Size: 948 KB

Format: PDF

Language: English, German

Brand: Bomag

Type of Machine: Machinery

Type of Manual: Hydraulic Schematic

Model: Bomag BMx00-15 Tier 4i Machinery

Date: 2014

Function 264

Number Of Pages: 18 Pages

Original price was: 20.Current price is: 10. USD

Tags: Bomag, Bomag Heavy Equipment Manual

Description

Description

Bomag BMx00-15 Tier 4i Hydraulic Schematic Function 264 2014 EN DE

Bomag BMx00-15 Tier 4i Hydraulic Schematic Function 264 2014 EN DE
Size: 948 KB
Format: PDF
Language: English, German
Brand: Bomag
Type of Machine: Machinery
Type of Manual: Hydraulic Schematic
Model: BMx00-15 Tier 4i Machinery
Date: 2014
Function 264
Number Of Pages: 18 Pages

Contents:

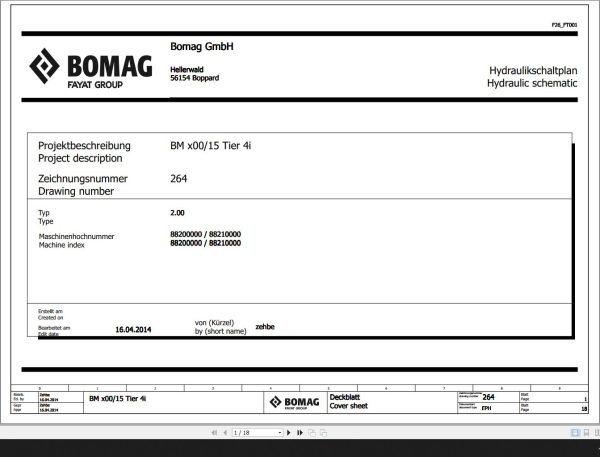

Cover sheet
Table of Contents: 1 – 17
Overview

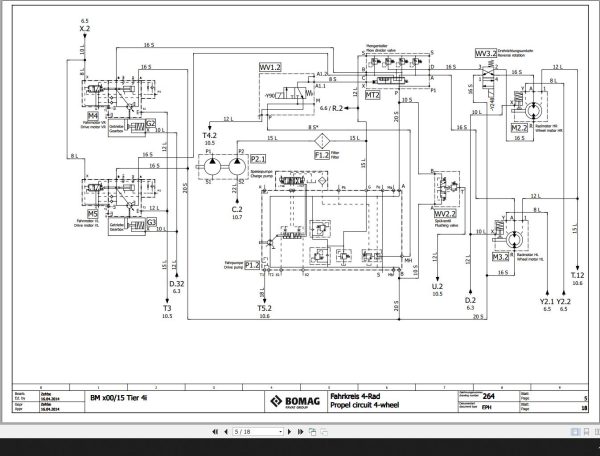

Propel circuit 3-wheel
Propel circuit 4-wheel
Steering and brake
Cylinder functions_1
Conveyor belt
Cylinder functions_2
Conveyor and options
Return flows
Coupling
Device tag list : Al – C1.1
Device tag list: C2 – HV2
Device tag list: HV3 – P3
Device tag list: PV1 – WV3.1
Device tag list: WV3.2 – Z4
Device tag list: Z5 – Z21
