Name: Bomag BW135AD-5, BW138AD-5; BW138AC-5 Hydraulic Schematic Function 290 2014 EN DE
SKU: 306030
Availability: InStock

-50%

Bomag BW135AD 5 BW138AD 5 BW138AC 5 Hydraulic Schematic Function 290 2014 EN DE 1

Bomag BW135AD 5 BW138AD 5 BW138AC 5 Hydraulic Schematic Function 290 2014 EN DE 1 1

✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag BW135AD-5, BW138AD-5; BW138AC-5 Hydraulic Schematic Function 290 2014 EN DE

Size: 557 KB

Format: PDF

Language: English, German

Brand: Bomag

Type of Machine: Machinery

Type of Manual: Hydraulic Schematic

Model: Bomag BW135AD-5, BW138AD-5; BW138AC-5 Machinery

Date: 2014

Function 290

Number Of Page: 11 Pages

Original price was: 20.Current price is: 10. USD

Tags: Bomag, Bomag Heavy Equipment Manual

Description

Description

Bomag BW135AD-5, BW138AD-5; BW138AC-5 Hydraulic Schematic Function 290 2014 EN DE

Bomag BW135AD-5, BW138AD-5; BW138AC-5 Hydraulic Schematic Function 290 2014 EN DE
Size: 557 KB
Format: PDF
Language: English, German
Brand: Bomag
Type of Machine: Machinery
Type of Manual: Hydraulic Schematic
Model: BW135AD-5, BW138AD-5; BW138AC-5 Machinery
Date: 2014
Function 290
Number Of Page: 11 Pages

Contents:

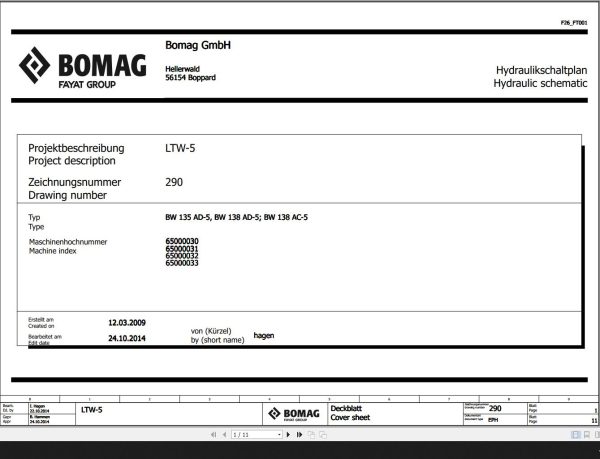

Cover sheet
Table of
Contents: 1 – 7.a
Overview
Propel circuit BW135/138 AD-5

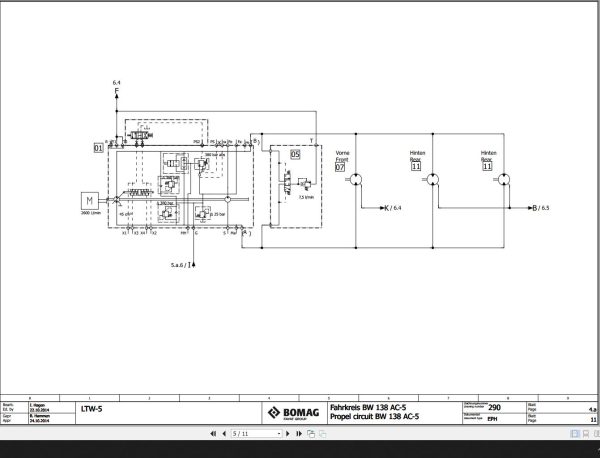

Propel circuit BW 138 AC-5
Propel circuit BW 138 AD-5 ZA-HY3
Vibration / steering AD
Vibration / steering ZA-F5/AC
Tank
Device tag list: 01 – 20
Device tag list: 21 – 22

Fanpage
