Bomag BW141-4, BW151-4, BW161-4, BW203-4 Family Wiring Diagram Drawing No 92010003 2004 EN DE

Size: 834 KB

Format: PDF

Language: English, German

Brand: Bomag

Type of Machine: Machinery

Type of Manual: Wiring Diagram

Model: Bomag BW141-4, BW151-4, BW161-4, BW203-4 Family Machinery

Date: 2004

Drawing No 92010003

Number Of Page: 26 Pages

Original price was: 30.Current price is: 20. USD

Tags: Bomag, Bomag Heavy Equipment Manual

Description

Description

Bomag BW141-4, BW151-4, BW161-4, BW203-4 Family Wiring Diagram Drawing No 92010003 2004 EN DE

Bomag BW141-4, BW151-4, BW161-4, BW203-4 Family Wiring Diagram Drawing No 92010003 2004 EN DE
Size: 834 KB
Format: PDF
Language: English, German
Brand: Bomag
Type of Machine: Machinery
Type of Manual: Wiring Diagram
Model: BW141-4, BW151-4, BW161-4, BW203-4 Family Machinery
Date: 2004
Drawing No 92010003
Number Of Page: 26 Pages

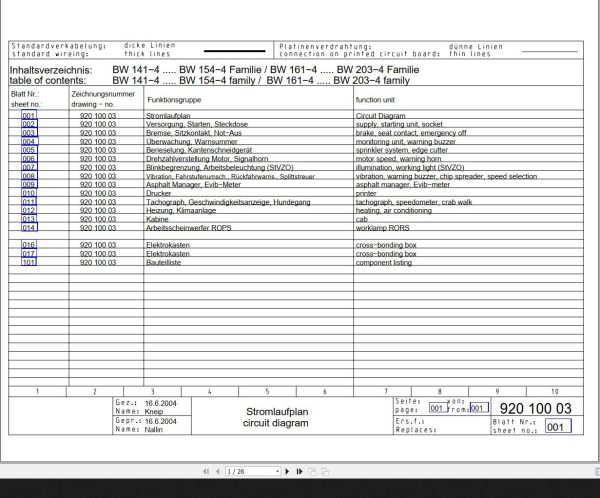

Contents:
Circuit Diagram

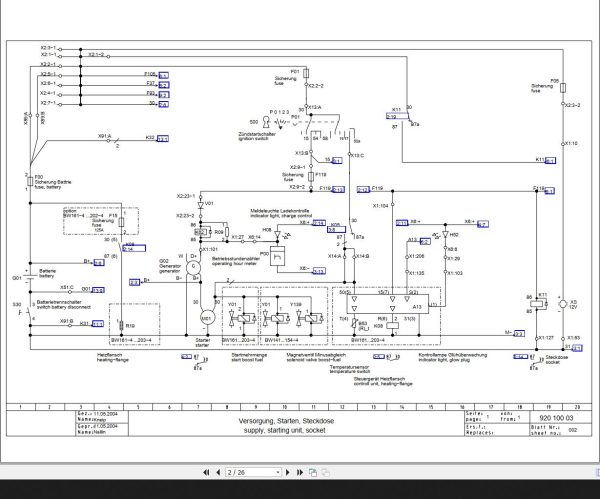

supply. starting unit, socket
brake, seat contact, emergency off
monitoring unit, warning buzzer
sprinkler system, edge cutter
motor speed. warning horn
illumination, working light (StVZO)
vibration, warning buzzer, chip spreader, speed selection
asphalt manager, Evib—meter
printer
tachograph. speedometer, crab walk
heating. air conditioning
cab
worklamp RORS
cross—bonding box
cross—bonding box
