Bomag BW141-4 to BW203-4 Engine Tier2,3 Wiring Diagram Drawing No 92010010 2016 EN DE

Size: 1.11 MB

Format: PDF

Language: English, German

Brand: Bomag

Type of Machine: Machinery

Type of Manual: Wiring Diagram

Model: Bomag BW141..203−4 (engine TIER2 and 3) Machinery

Date: 2016

Drawing No 92010010

Number Of Pages: 39 Pages

Original price was: 30.Current price is: 20. USD

Tags: Bomag, Bomag Heavy Equipment Manual

Description

Description

Bomag BW141-4 to BW203-4 Engine Tier2,3 Wiring Diagram Drawing No 92010010 2016 EN DE

Bomag BW141-4 to BW203-4 Engine Tier2,3 Wiring Diagram Drawing No 92010010 2016 EN DE
Size: 1.11 MB
Format: PDF
Language: English, German
Brand: Bomag
Type of Machine: Machinery
Type of Manual: Wiring Diagram
Model: Bomag BW141..203−4 (engine TIER2 and 3) Machinery
Date: 2016
Drawing No 92010010
Number Of Pages: 39 Pages

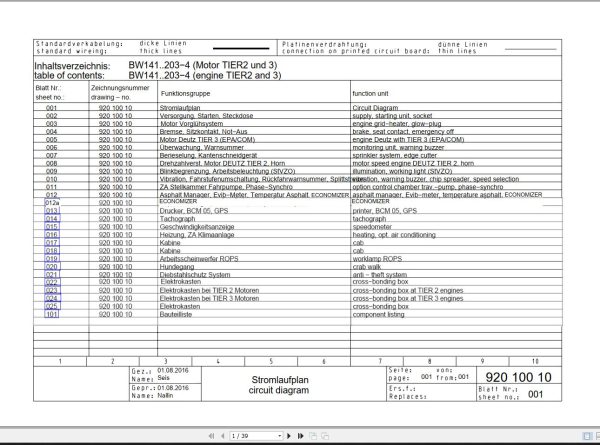

Contents:
Circuit Diagram

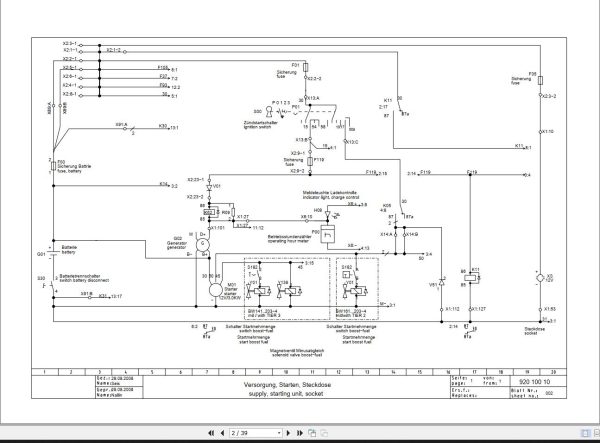

supply, starting unit, socket
engine grid−heater, glow−plug
brake, seat contact, emergency off
engine Deutz with TIER 3 (EPA/COM)
monitoring unit, warning buzzer
sprinkler system, edge cutter
motor speed engine DEUTZ TIER 2, horn
illumination, working light (StVZO)
vibration, warning buzzer, chip spreader, speed selection
option control chamber trav.−pump, phase−synchro
asphalt manager, Evib−meter, temperature asphalt ECONOMIZER
Printer BCM 05, GPS
tachograph
Speedometer
Heating, opt air conditioning
Cab
worklamp ROPS
Crab walk
Anti-theft system
cross-bonding box
cross-bonding box at TIER 2 engines
cross-bonding box at TIER 3 engines
cross-bonding box
component listing
