Name: Bomag Combination Rollers BW 135 AC Electric Hydraulic Schematics
SKU: 525067
Availability: InStock

Bomag Combination Rollers BW 135 AC Electric Hydraulic Schematics (1)

Bomag Combination Rollers BW 135 AC Electric Hydraulic Schematics (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag Combination Rollers BW 135 AC Electric Hydraulic Schematics

Size: 0.43 MB

Format: PDF

Language: English, German

Brand: Bomag

Type of Machine: Combination Rollers

Type of Manual: Electric Hydraulic Schematics

Model: Bomag BW 135 AC Combination Rollers

Serial Number: 101650131022 – 101650131025 (00817470)

20 USD

Tags: Bomag Combination Rollers Manual, Bomag Hydraulic Schematic, BW 131 ACW-2 Electric, s

Description

Description

List of Files:
Bomag Combination Rollers BW 135 AC 101650131022 – 101650131025 (00817470) Electric Hydraulic Schematics
000000000065431006_00_000.pdf
000000000078100124_01_000.pdf
Deutsch
001-Stromlaufplan
002-Versorgung, Starten, Ãœberwachung, HydraulikÃ¶lkÃ¼hler
003-Vibration, Bremse, Sitzkontaktschalter
004-Signalhorn, Berieselung, Mengenteiler, Warneinrichtungen
005-Wetterschutzkabine, Fernsteuerung
006-Arbeitsbeleuchtung, Blinkbegrenzung
007-Kontrollmodul
101-Bauteilliste
English
001-Circuit Diagram
002-Supply, Starting Unit, Monitoring Unit, Cooling Air Blower
003-Vibration, Brake, Switch Seat Contact
004-Warning Horn, Sprinkler System, Flow Divider, Warning Equipment
005-Cabin, Weather Protection, Remote Control

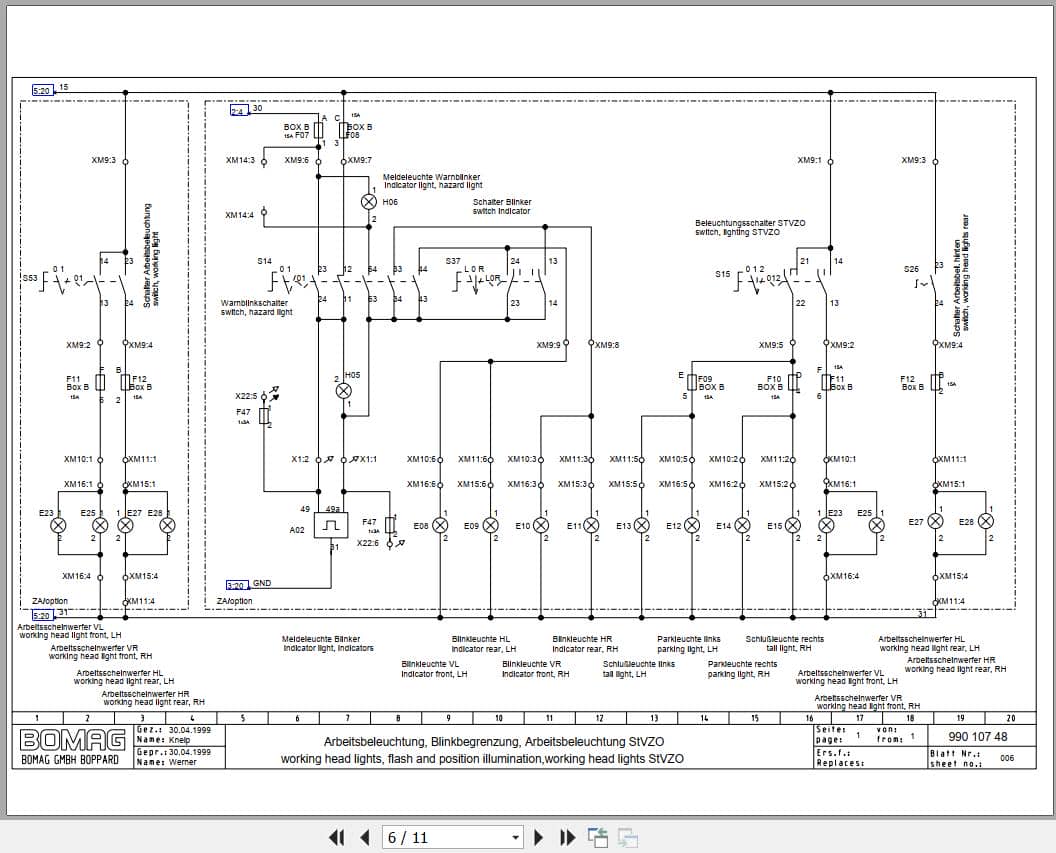

006-Working Head Lights, Flash And Position Illumination
007-Monitoring Board
101-Component Listing
