Name: Bomag Refuse Compactor BC 571 RB Electrical Hydraulic Schematic
SKU: 525115
Price: 20.00 USD
Availability: InStock

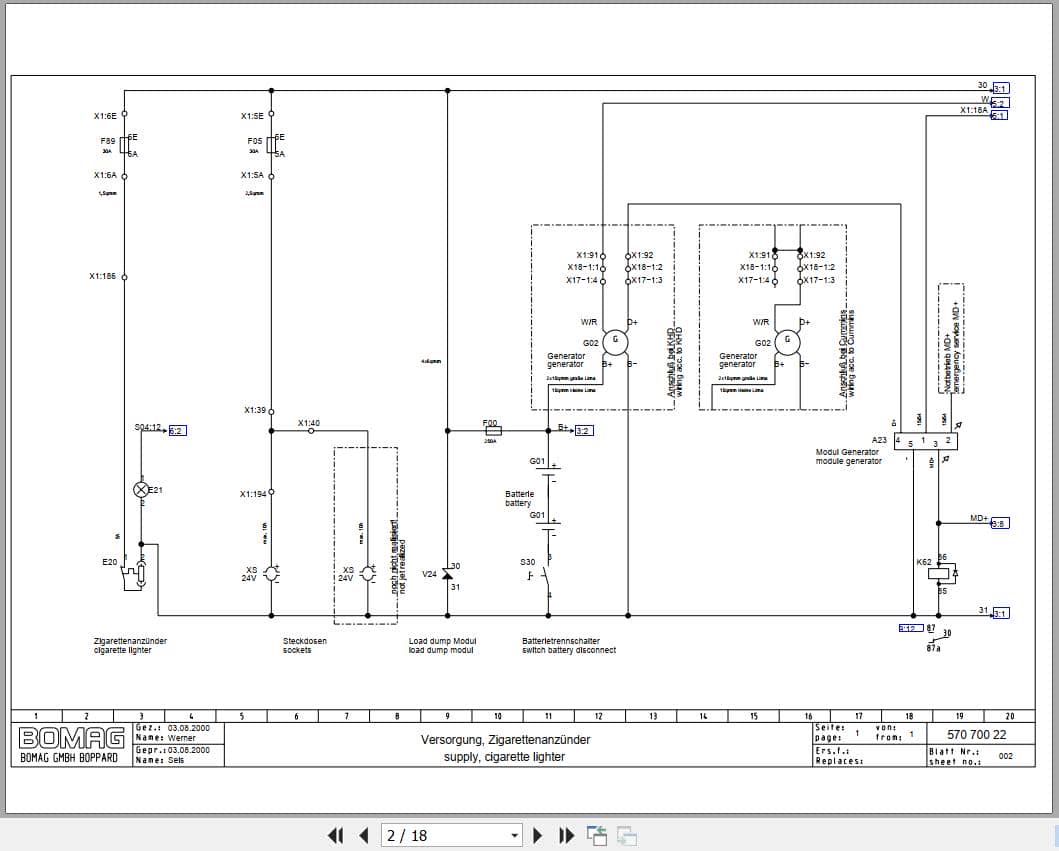

Bomag Refuse Compactor BC 571 RB Electrical Hydraulic Schematic (1)

Bomag Refuse Compactor BC 571 RB Electrical Hydraulic Schematic (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag Refuse Compactor BC 571 RB Electrical Hydraulic Schematic

Size: 2.21 MB

Format: PDF

Language: English, German

Brand: Bomag

Type of Machine: Refuse Compactor

Type of Manual: Electrical Schematic, Hydraulic Schematic

Model: Bomag BC 571 RB Refuse Compactor

Serial Number: 101570621033 – 101570621062 (00817400)

20$ USD

Tags: BC 672 RB-2, Bomag Electrical Schematic, Bomag Hydraulic Schematic, Bomag Refuse Compactor Manual

Description

Description

List of Files:
Bomag Refuse Compactor BC 571 RB Electrical Hydraulic Schematic 101570621033 – 101570621062 (00817400)
000000000057070022_00_000.pdf
Deutsch
001-Stromlaufplan
002-Versorgung, ZigarettenanzÃ¼nder
003-Starten
004-Drehzahlregelung Mta C370 Cummins
005-Anzeigen, StÃ¶rmeldungen
006-Fahren, Fahrstufen Und Bremse
007-Warneinr., Schmieranl., Sitzverst. U. -Heizung
008-Heizung Und BelÃ¼ftung
009-SchutzbelÃ¼ftung, Klimaanlage
010-Lenkung Und Schildsteuerung
011-Kabine Und Anbauteile
101-Bauteilliste
201-Schaltkasten
English
001-Circuit Diagram
002-Supply, Cigarette Lighter
003-Starting Unit
004-Rpm Control Mta C370 Cummins
005-Monitoring, Failure Indication
006-Driving, Speed Ranges And Brakes
007-Warning Equip., Lub. Systhem, Seat Hight Adj. And Heating
008-Heating And Ventilation
009-Protected Ventilation Systhem, Air Conditioning
010-Steering And Blade Control
011-Cabin And Attachment Parts
101-Component Listing
201-E-Box
000000000057190810_00_001.pdf
000000000057190810_00_002.pdf
