Bomag Road Milling Machine BM 1200 30-2 Electric Schematics

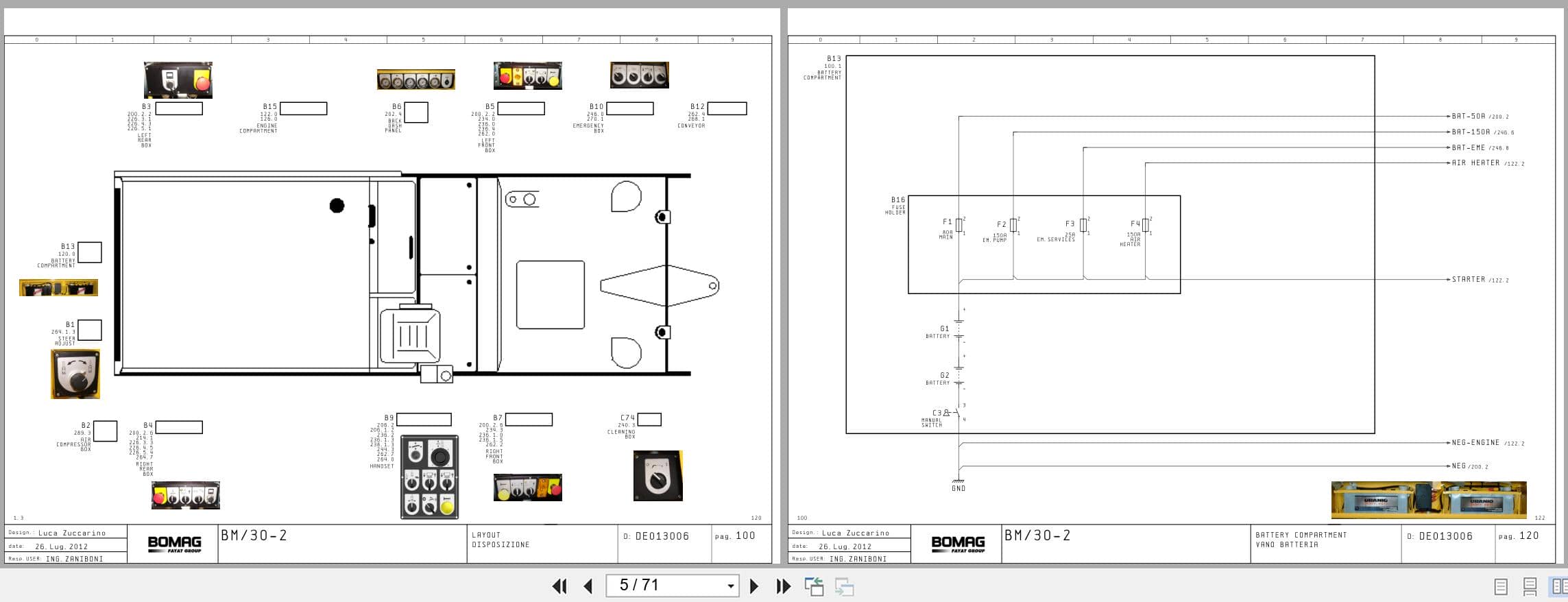

Bomag Road Milling Machine BM 1200 30 2 Electric Schematics (1)
Bomag Road Milling Machine BM 1200 30 2 Electric Schematics (2)
Bomag Road Milling Machine BM 1200 30 2 Electric Schematics (1)
Bomag Road Milling Machine BM 1200 30 2 Electric Schematics (2)
✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag Road Milling Machine BM 1200 30-2 Electric Schematics

Size: 65.31 MB
Format: PDF
Language: English, Italian
Brand: Bomag
Type of Machine: Road Milling Machine
Type of Manual: Electric Schematics
Model: Bomag BM 1200 30-2 Road Milling Machine

10 USD

Tags: , , ,
  • Description

Description

List of Files:
Bomag Road Milling Machine BM 1200 30-2 Electric Schematics
BM 1200 30-2 821836351001 – 821836351018 (00800669)
000000000000000091_00_000.pdf
Doc1
Table Of Contents
Structure Identifier Overview
Efs
Bf
DE013005_00_000.pdf
Front Page
Table Of Contents
Layout
Battery Compartment
Engine Compartment
Engine Adem
Starting Key
Emergency
Emergency Push Buttons
12V Service
Fuel Filling
Travelling
Milling Drum
Back Door
Columns
Break Bar
Side Doors
Conveyor
H.P.Cleaning
Water Spraying
Pause
Roof
Beacon
Horn
Steering
Engine Throttle
Working Lights
Emergency Services
Hydraulic Alarms
Engine Alarms
Acustic Alarm
Certification For Road Circulation
Air Compressor
Engine Instrument
Plc Di1.1…1.8 Di2.1…2.8
Plc Di3.1…3.8 Di4.1…4.8
Plc Ai1.1…1.8 Ai2.1…2.8
Plc Do1.1…1.8 Do2.1…2.8
Plc Others
Bill Of Materials
DE013006_00_000.pdf
Front Page
Table Of Contents
Layout
Battery Compartment
Engine Compartment
Engine Adem
Starting Key
Emergency
Emergency Push Buttons
12V Service
Fuel Filling
Travelling
Milling Drum
Back Door
Columns
Break Bar
Side Doors
Conveyor
H.P.Cleaning
Water Spraying
Pause
Roof
Beacon
Horn
Steering
Engine Throttle
Working Lights
Emergency Services
Bomag Telematics
Hydraulic Alarms
Engine Alarms
Acustic Alarm
Certification For Road Circulation
Air Compressor
Engine Instrument
Plc Di1.1…1.8 Di2.1…2.8
Plc Di3.1…3.8 Di4.1…4.8
Plc Ai1.1…1.8 Ai2.1…2.8
Plc Do1.1…1.8 Do2.1…2.8
Plc Others
Bill Of Materials
BM 1200 30-2 821836371001 – 821836371005 (00800671)
000000000000000091_00_000.pdf
Doc1
Table Of Contents
Structure Identifier Overview
Efs
Bf
DE013005_00_000.pdf
Front Page
Table Of Contents [2-17.Giu.2011 14:54:11]
Layout
Battery Compartment
Engine Compartment
Engine Adem
Starting Key
Emergency
Emergency Push Buttons
12V Service
Fuel Filling
Travelling
Milling Drum
Back Door
Columns
Break Bar
Side Doors
Conveyor
H.P.Cleaning
Water Spraying
Pause
Roof
Beacon
Horn
Steering
Engine Throttle
Working Lights
Emergency Services
Hydraulic Alarms
Engine Alarms
Acustic Alarm
Certification For Road Circulation
Air Compressor
Engine Instrument
Plc Di1.1…1.8 Di2.1…2.8
Plc Di3.1…3.8 Di4.1…4.8
Plc Ai1.1…1.8 Ai2.1…2.8
Plc Do1.1…1.8 Do2.1…2.8
Plc Others
Bill Of Materials
