Name: Bomag Road Milling Machine BM 1200-35 TE Electric Hydraulic Pneumatic Schematics
SKU: 525178
Availability: InStock

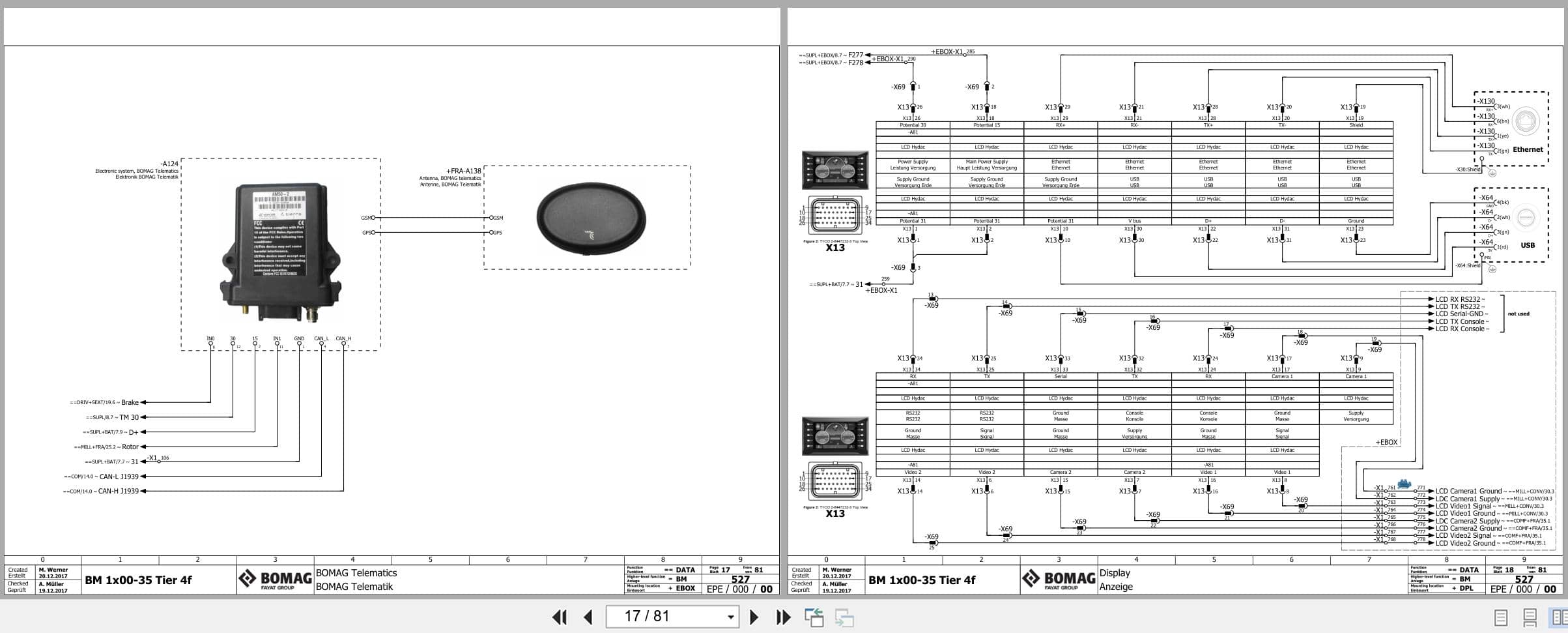

Bomag Road Milling Machine BM 1200 35 TE Electric Hydraulic Pneumatic Schematics (1)

Bomag Road Milling Machine BM 1200 35 TE Electric Hydraulic Pneumatic Schematics (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag Road Milling Machine BM 1200-35 TE Electric Hydraulic Pneumatic Schematics

Size: 15.32 MB

Format: PDF

Language: English, German

Brand: Bomag

Type of Machine: Road Milling Machine

Type of Manual: Electric Hydraulic Pneumatic Schematics

Model: Bomag BM 1200-35 TE Road Milling Machine

Serial Number: 101883221001 – 101883229999 (00825877)

30 USD

Tags: BM 1000-35 T4f Electric Hydraulic Bomag Pneumatic Schematics, Bomag Road Milling Machine Manual

Description

Description

List of Files:
Bomag Road Milling Machine BM 1200-35 TE 101883221001 – 101883229999 (00825877) Electric Hydraulic Pneumatic Schematics
000000000000000527_00_000.pdf
Doc1 Leading Documentation
Cover Sheet
Table Of Contents
Structure Identifier Overview
Layout Mounting Locations
Efs Circuit Diagram
Bm Bomag Milling Machine
Doc2 Reports And Drawings
Component-Listing
Terminal Diagram
Pin Overview A34
Pin Overview A66
Pin Overview A81
Pin Overview S55
Plug Diagram
Overview Can Topology
Overview Central Electric
Terminal Strip Designation
000000000000000534_00_000.pdf
Cover Sheet
Table Of Contents :1-16.g
Overview
Advance Drive
Brake
Belt Drive
Control Block 1
Control Block 2
Control Block 3
Control Block 4
Water Installation
Options 1
Options 2
Heat Exchanger_Tank
Gearbox
Device Tag List : 1 – C1
Device Tag List : C2 – M2
Device Tag List : M3 – P7
Device Tag List : P8 – St3
Device Tag List : St4 – St27
Device Tag List : St28 – Z9
Device Tag List : Z10 – Z27
Device Tag List : Z28 – Z28
000000000000000535_00_000.pdf
Seitenbaum
Deckblatt
Hydraulik Wasser
Seitenliste
Deckblatt
Hydraulik Wasser
Betriebsmittelbaum
Ohne Strukturkennzeichen
Ohne Bmk
Device Tag List
000000000000000564_00_000.pdf
Cover Sheet
Compressed Air System
