Name: Bomag Road Milling Machine BM 500-15 T4f Hydraulic Schematics
SKU: 525206
Availability: InStock

Bomag Road Milling Machine BM 500 15 T4f Hydraulic Schematics (1)

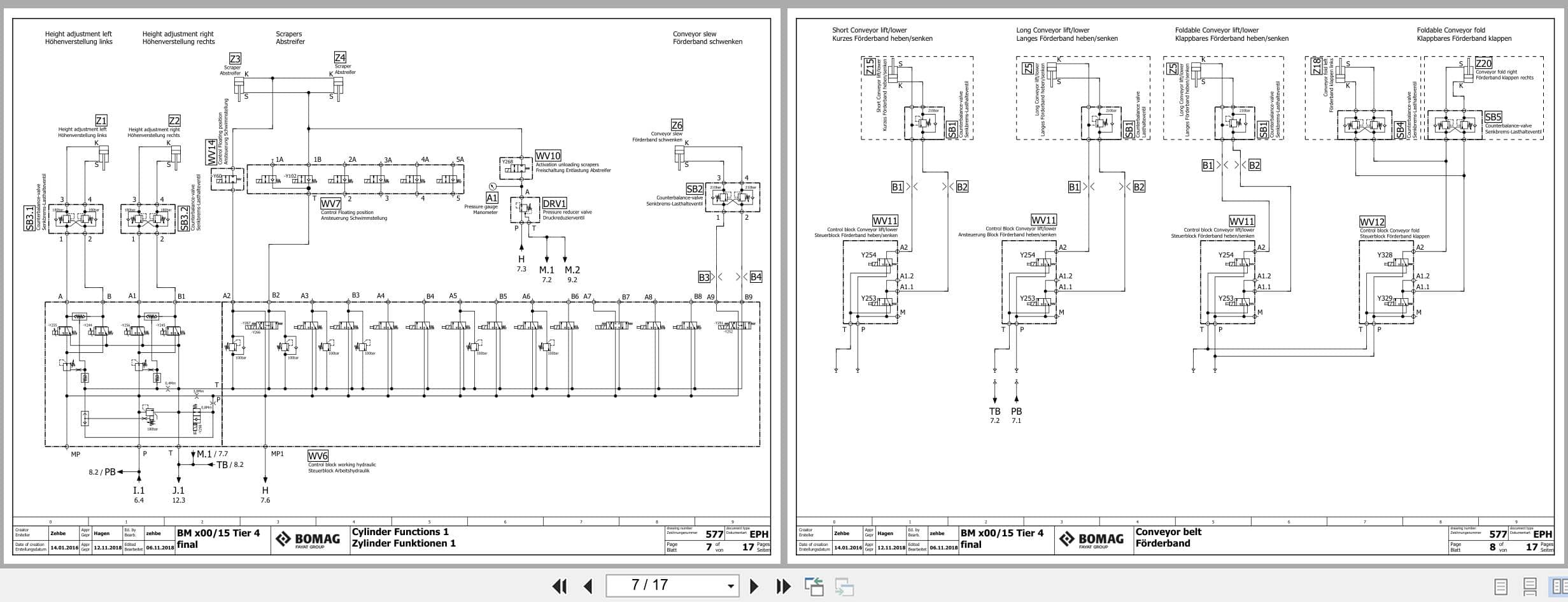

Bomag Road Milling Machine BM 500 15 T4f Hydraulic Schematics (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Bomag Road Milling Machine BM 500-15 T4f Hydraulic Schematics

Size: 1.35 MB

Format: PDF

Language: English, German

Brand: Bomag

Type of Machine: Road Milling Machine

Type of Manual: Hydraulic Schematics

Model: Bomag BM 500-15 T4f Road Milling Machine

10 USD

Tags: BM 2000 50 Electric Schematics, Bomag Road Milling Machine Manual

Description

Description

List of Files:
Bomag Road Milling Machine BM 500-15 T4f 101882051001 – 101882059999 (00825149) Hydraulic Schematics
000000000000000577_00_000.pdf
Cover Sheet
Table Of Contents : 1 – 17
Overview
Propel Circuit 3-Wheel
Propel Circuit 4-Wheel
Steering And Brake
Cylinder Functions 1
Conveyor Belt
Cylinder Functions 2
Conveyor And Options
Water Installation
Return Flows
Device Tag List : A1 – C2
Device Tag List : C3 – M4
Device Tag List : M5 – V1
Device Tag List : Wv1 – Z3
Device Tag List : Z4 – Z20
000000000000000631_00_000.pdf
Cover Sheet
Table Of Contents : 1 – 17
Overview
Propel Circuit 3-Wheel
Propel Circuit 4-Wheel
Steering And Brake
Cylinder Functions 1
Conveyor Belt
Cylinder Functions 2
Conveyor And Options
Water Installation
Return Flows
Device Tag List : A1 – C2
Device Tag List : C3 – M4
Device Tag List : M5 – Wv1
Device Tag List : Wv2 – Z5
Device Tag List : Z6 – Z20
