CAT Earthmoving Compactor 825K Electrical Hydraulic Schematic

Size: 33.64 MB
Format: PDF
Language: English
Brand: Caterpillar
Type of Machine: Earthmoving Compactor

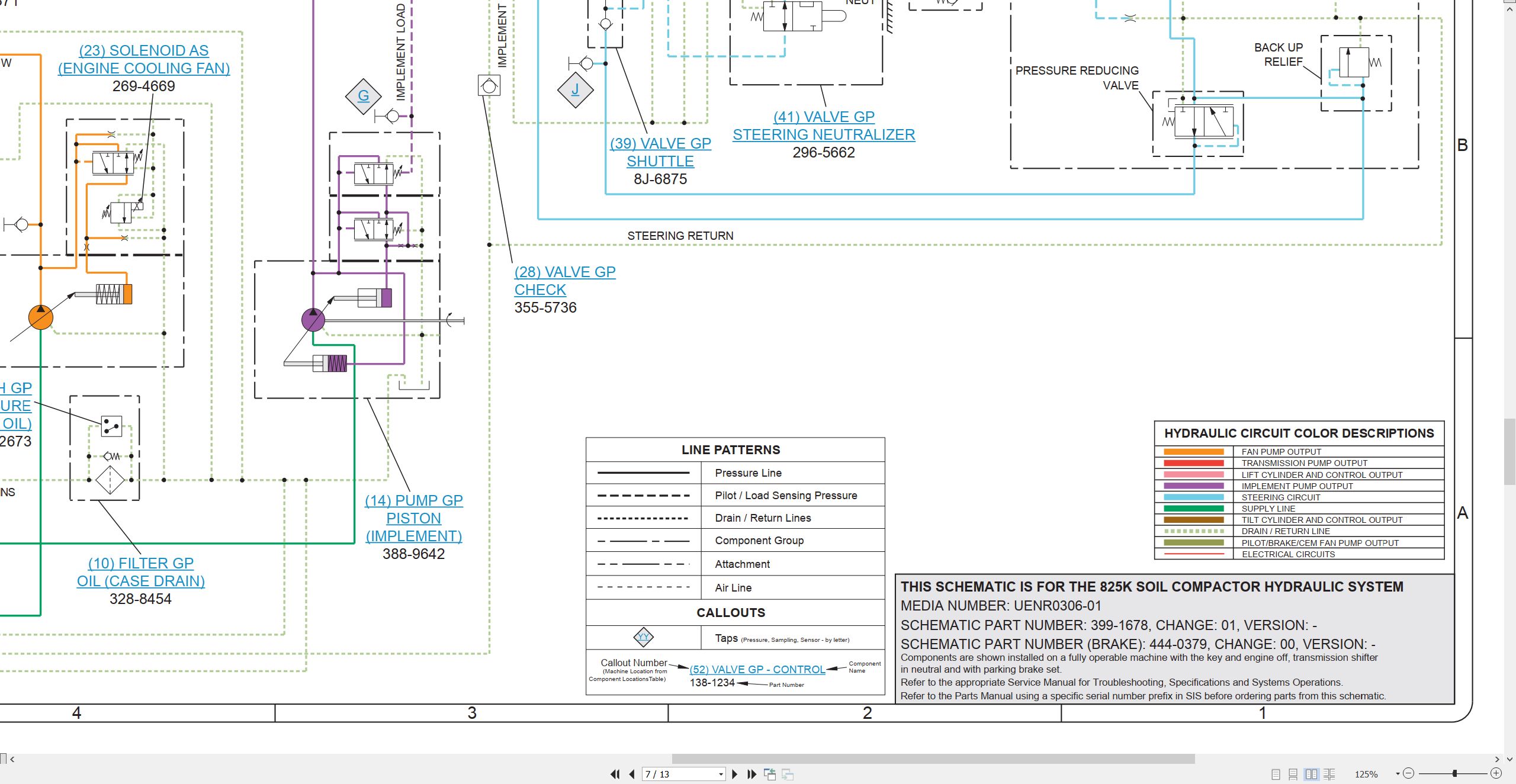

Type of Manual: Electrical Schematic, Hydraulic Schematic
Model: CAT 825K Earthmoving Compactor
List of Files:
M0167473-00: 825K Soil Compactor Electrical System (Interactive) (Function Isolation), Cab and Attachments – 392-3500-01, Chassis – 392-3502-01, Engine – 370-8552-09, Pump Electronics Tank Unit Header (If Equipped) – 491-6343-01 (For Serial Numbers 2T9117-UP)
M0169127-00: 825K Soil Compactor Electrical System, Cab – 392-3500-01, Chassis – 392-3502-01, Engine – 336-8660-03 (For Serial Numbers 2L9204-UP)
UENR0306-01: 825K Soil Compactor Hydraulic System (Interactive) 399-1678-01, Brake 444-0379-00 (2331-UP SEE1-UP 2T91-UP 2L91-UP)
UENR0308-02: 824K Wheel Dozer 825K Soil Compactor 826K Landfill Compactor Electrical System (Interactive), Cab And Attachments 392-3500-01 Chassis 392-3502-01 Engine 336-8660-03 (For Serial Numbers: RWB1-UP 2L41-UP SEE1-UP 2L91-UP SET1-UP 2L31-UP)
UENR0308-04: 825K Soil Compactor And 826K Landfill Compactor Electrical System, Cab – 392-3500-01, Chassis – 392-3502-01, Engine – 336-8660-03 (For Serial Numbers 2L91-203 SEE1-UP 2L31-UP SET1-UP)
UENR3965-03: 824K Wheel Dozer 825K Soil Compactor 826K Landfill Compactor Electrical System (Interactive), Cab 392-3500-01, Chassis 392-3502-01, Engine 370-8552-09, Attachemants 392-3500-01, Pump Electronics Tank Unit Header (If Equipped) 491-6343-01 (For Serial Numbers: 2341-UP 2T21-UP 2331-UP 2T91-UP 2321-UP 2T61-UP)
UENR3965-04: 826K Landfill Compactor 824K Wheel Dozer 825K Soil Compactor Electrical System (Interactive)(Function ISOLATION),CAB-392-3500-01,CHASSIS-392-3502-01,ENGINE-370-8552-09,PETU-491-6343-01 (For Serial Numbers 2321-UP 2T61-UP 2331-UP 2T91-UP 2341-UP 2T21-UP)
UENR3965-05: 825K Soil Compactor and 826K Landfill Compactor Electrical System (Interactive) (Function Isolation), Cab and Attachments – 392-3500-01, Chassis – 392-3502-01, Engine – 370-8552-09, Pump Electronics Tank Unit Header (If Equipped) – 491-6343-01 (For Serial Numbers 2T91-UP 2321-UP 2T61-UP 2331-UP)

40 USD
