CAT Electric Rope Shovel 7495HF Electrical Hydraulic Schematic

CAT Electric Rope Shovel 7495HF Electrical Hydraulic Schematic (1)
CAT Electric Rope Shovel 7495HF Electrical Hydraulic Schematic (2)
CAT Electric Rope Shovel 7495HF Electrical Hydraulic Schematic (3)
CAT Electric Rope Shovel 7495HF Electrical Hydraulic Schematic (1)
CAT Electric Rope Shovel 7495HF Electrical Hydraulic Schematic (2)
CAT Electric Rope Shovel 7495HF Electrical Hydraulic Schematic (3)
✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Electric Rope Shovel 7495HF Electrical Hydraulic Schematic

Size: 27.20 MB
Format: PDF
Language: English
Brand: Caterpillar
Type of Machine: Electric Rope Shovel
Type of Manual: Electrical Schematic, Hydraulic Schematic, Grease Lube Schematic, Operator Cab Electrical Schematic
Model: CAT 7495HF Electric Rope Shovel

50 USD

Tag:
  • Description

Description

List of Files:

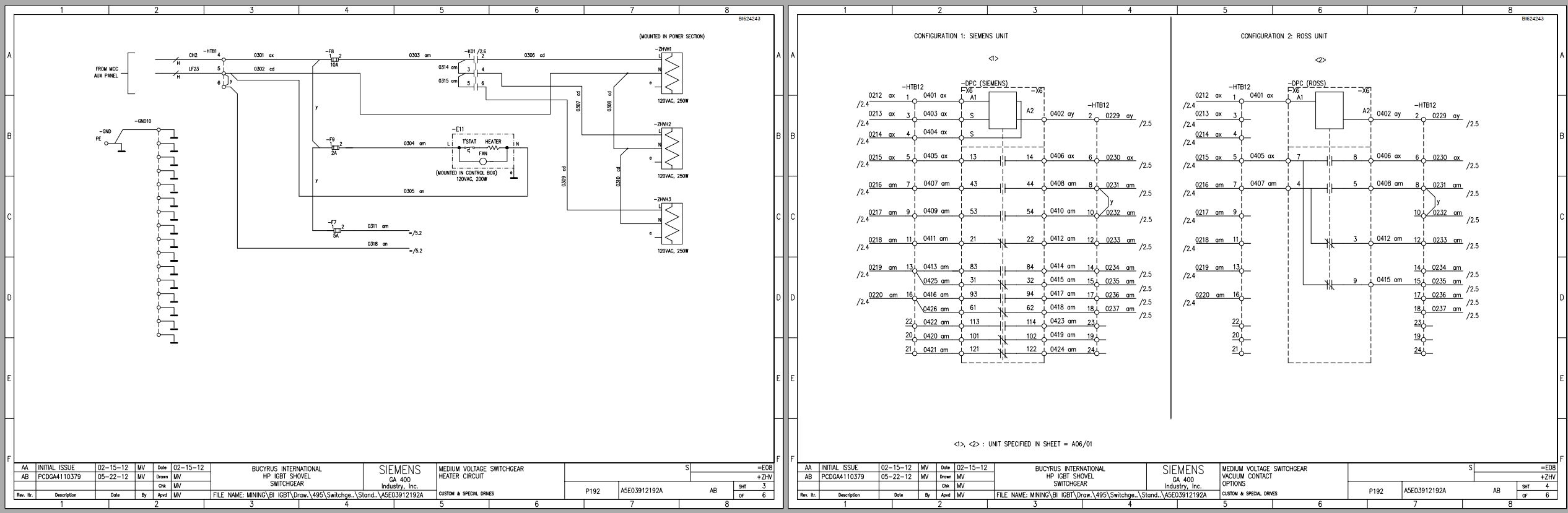

BI624243-00: 495HR 141450 – 7495HF/HD Shovel MV Switchgear Schematic – BI624243 – Pub. 2012 – A5E03912192A-Switchgear-Electrical-RevAB – Siemens,7495
EM029013-00: Schematic – ER801534 – 7495HF – Schematic – Open Gear Lube
EM029015-00: Schematic – ER801534 – 7495HF – Schematic – Grease
EM029017-00: Schematic – ER801534 – 7495HF – Schematic – HVAC
EM029019-00: Schematic – ER801534 – 7495HF – Schematic – Air
EM029591-00: Schematic – ER801534 – 7495HF, Cnrl – Albian, AS-Built Electrical Schematics

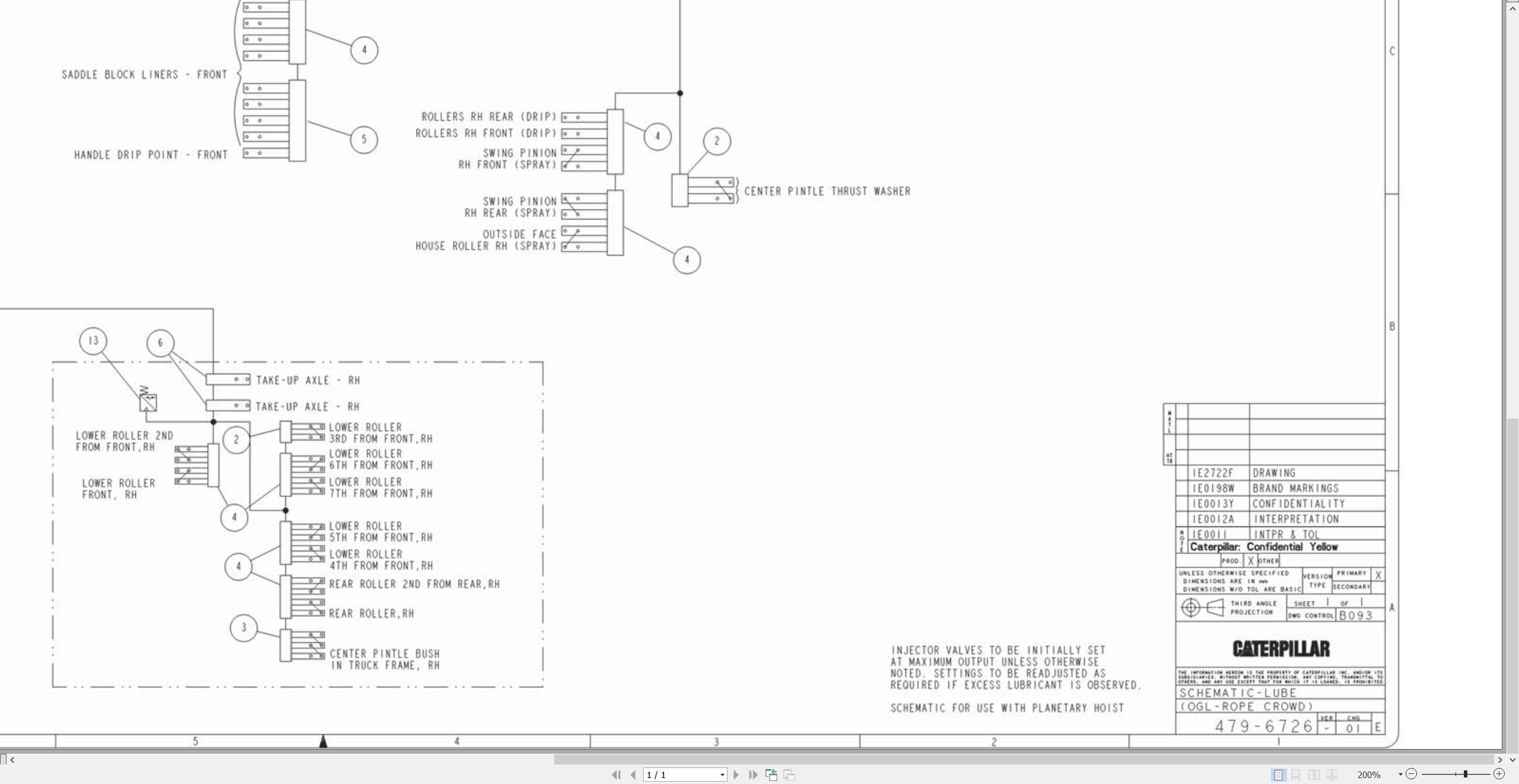

M0106230-01: 7495 And 7495HF Electric Rope Shovel (With Rope Crowd) Open Gear Lube A And B System
M0106232-01: 7495 And 7495HF Electric Rope Shovel (With Rope Crowd) Multipurpose Grease Lube System
M0106234-01: 7495 And 7495HF Electric Rope Shovel (With Hydracrowd) Open Gear Lube A And B System
M0106236-00: 7495 And 7495HF Electric Rope Shovel (With Hydracrowd) Multipurpose Grease Lube System
M0137475-00: 7495 And 7495HF Electric Rope Shovel Hydraulic System – Open Gear Lube A And B System (With Rope Crowd)(Interactive)(Function Isolation), 617-9234-00, (For Serial Numbers R3F1-UP R3R1-UP)
M0137475-01: 7495 And 7495HF Electric Rope Shovel Hydraulic System – Open Gear Lube A And B System (With Rope Crowd) (Interactive) (Function Isolation), 617-9234-00 (For Serial Numbers R3F1-UP R3R1-UP)
M0137477-00: 7495 And 7495HF Electric Rope Shovel Hydraulic System (Interactive)(Function Isolation) – Multipurpose Grease Lube System (With Rope Crowd), 617-9236-00, (For Serial Numbers R3F1-UP R3R1-UP)
M0164175-01: 7495 And 7495HF Electric Rope Shovel Hydraulic System – Hoist Oil Cooler (Interactive) (Function Isolation), (For Serial Numbers R3F1-UP R3R1-UP ER81-UP ER61-UP)
M0182459-00: 7495HF Electric Rope Shovel Machine Electrical System Electrical System (For Serial Numbers R3F00120)
M0183378-00: 7495HF Electric Rope Shovel Machine Electrical System (For Serial Numbers R3R00111 R3R00113)
M0183380-00: 7495HF Electric Rope Shovel Operator Cab Electrical System (For Serial Numbers R3R00111 R3R00113)
