CAT Engine – Generator Set C1.1 Electrical Schematic

CAT Engine Generator Set C1.1 Electrical Schematic (1)

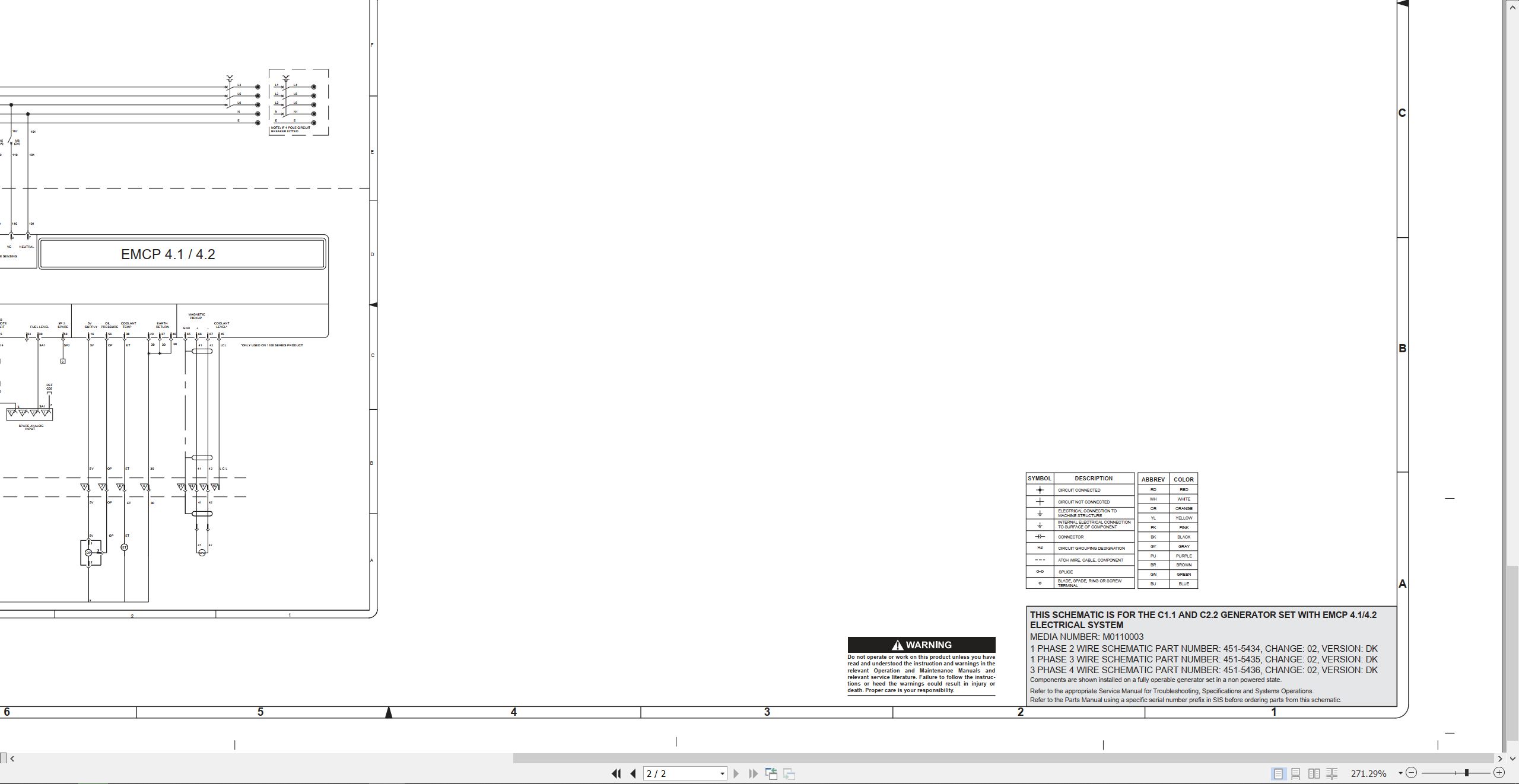

CAT Engine Generator Set C1.1 Electrical Schematic (2)
CAT Engine Generator Set C1.1 Electrical Schematic (1)
CAT Engine Generator Set C1.1 Electrical Schematic (2)
✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Engine – Generator Set C1.1 Electrical Schematic

Size: 2.47 MB
Format: PDF
Language: English
Brand: Caterpillar
Type of Machine: Engine – Generator Set
Type of Manual: Electrical Schematic
Model: CAT C1.1 Engine – Generator Set
List of Files:
M0110003-00: C1.1 And C2.2 Generator Set With EMCP 4.1/4.2 Electrical System 451-5434-02, 451-5435-02, 451-5436-02
M0110005-01: C1.1, C1.5, C2.2, And C3.3 Generator Set Electrical System ,4520 Control WIRING-515-0496-11,7410, 7420, And 7320 Control WIRING-540-1537-09,516-4125-11 (For Serial Numbers Y5B1-UP Y6B1-UP Y7B1-UP GB81-UP YMG1-UP GB91-UP GBY1-UP TYB1-UP YMH1-UP TYC1-UP TY21-UP Y4B1-UP)
M0130647-00: C1.1, C2.2, C3.3, C4.4, C7.1, C9, C9.3, C13, C15, And C18 Generator Set With PL444 Telematics Device Electrical System, 612-1341-00
M0130647-01: C1.1, C2.2, C3.3, C4.4, C7.1, C9, C9.3, C13, C15, and C18 Generator Set with PL444 Telematics Device Electrical System 612-1341-00
M0132061-00: C1.1, C1.5, And C2.2 Generator Set With 6320 Control Electrical System 614-4757-01, (For Serial Numbers GBY1-UP GB91-UP GB81-UP)
UENR6332-01: UENR6332-01 C1.1 And C2.2 Generator Set Electrical System (451-5434-01, 451-5435-01, 451-5436)
UENR8271-01: C1.1, C1.5 And C2.2 Engine With 7410/7420 Control Electrical System 515-0495-01
UENR8273-00: UENR8273-00 C1.1, C1.5 And C2.2 Engine With 4520 Control Electrical System ()

30 USD
