Name: CAT Excavator 325F Electrical Hydraulic Schematic
SKU: 668100
Availability: InStock

CAT Excavator 325F Electrical Hydraulic Schematic (1)

CAT Excavator 325F Electrical Hydraulic Schematic (2)

CAT Excavator 325F Electrical Hydraulic Schematic (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Excavator 325F Electrical Hydraulic Schematic

Size: 29.75 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Excavator

Type of Manual: Electrical Schematic, Hydraulic Schematic

Model: CAT 325F Excavator

50 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:

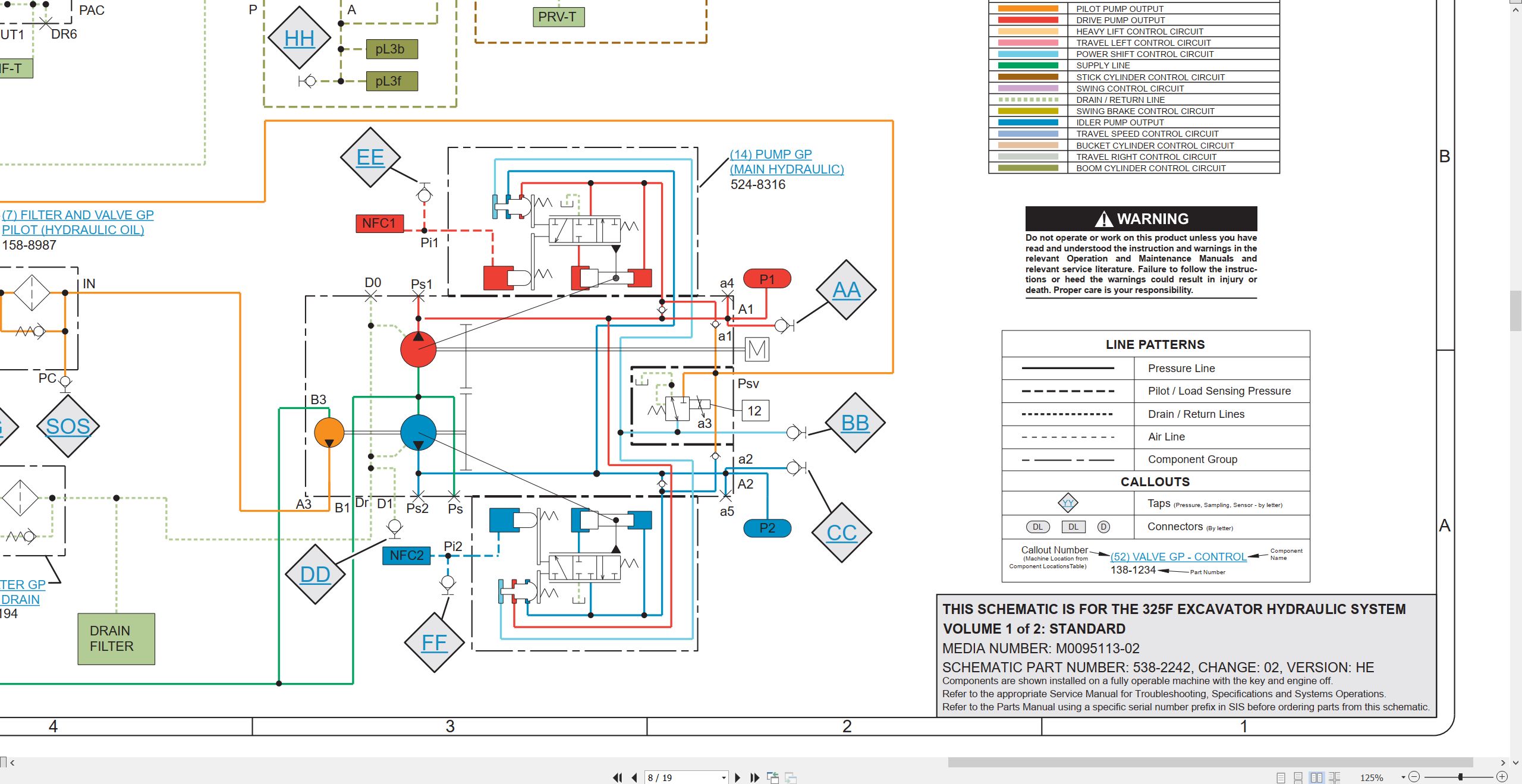

M0095113-02: 325F Excavator Hydraulic System (Interactive)(Function Isolation) ,538-2242-02 (For Serial Numbers RBW20242-UP NDJ20369-UP)
M0097309-01: 312E, 312F, 313F, 316E, 316F, 318E, 318F, 320E, 320F, 323E, 323F, 325F,335F, 336F, 340F, 349F, 352F,374F And 390F Air Conditioning Excavator Electrical System, 372-9312-01

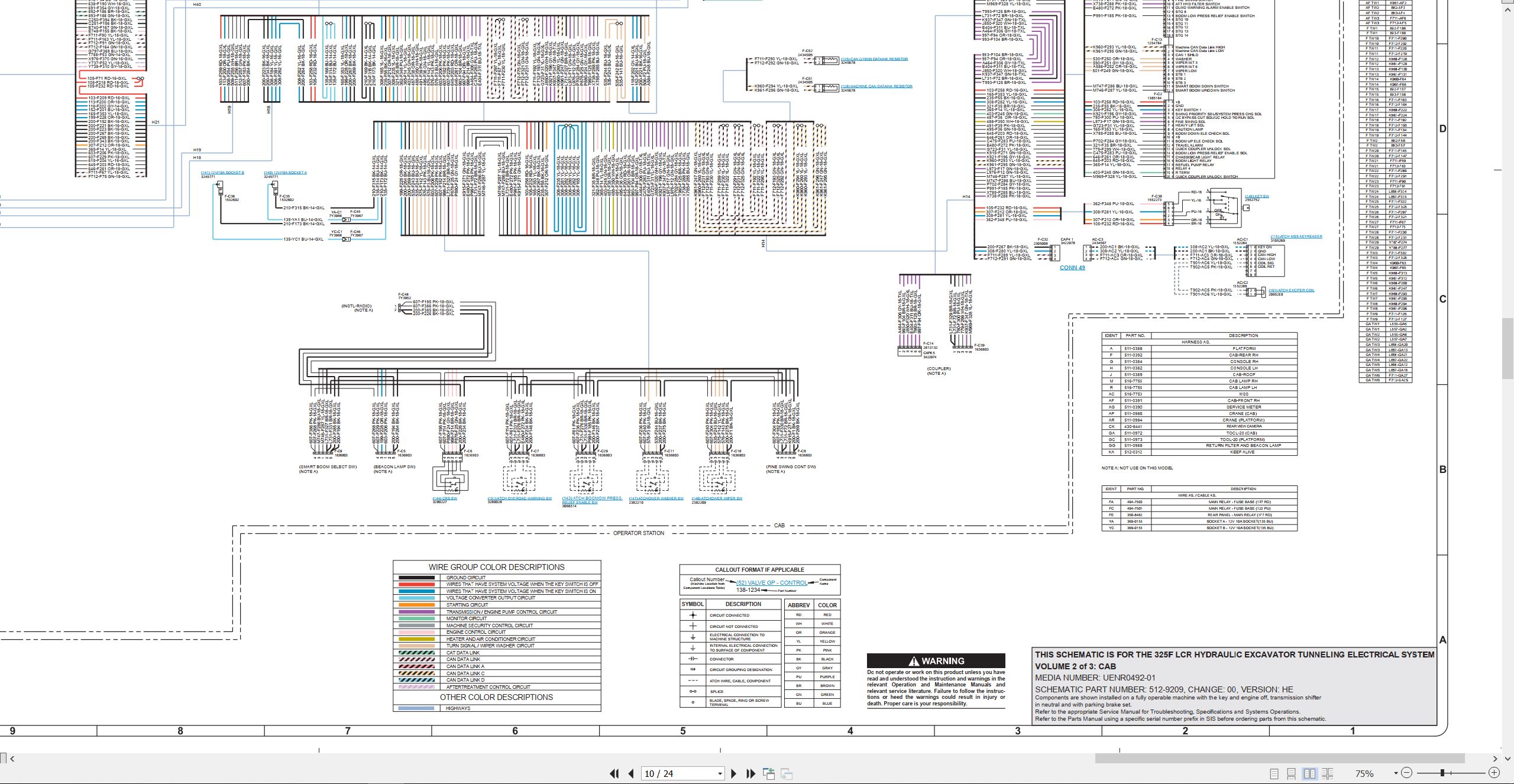

UENR0492-01: 325F LCR Hydraulic Excavator Tunneling Electrical System (Interactive), CHASSIS-512-9210-00, CAB-512-9209-00, ENGINE-415-5567-00(FOR Serial Numbers YCA1-UP)
UENR6237-04: 325F Excavator Electrical System (Interactive), Chassis 490-2799-01, Cab 477-5056-02, CGC Wiring 503-7146, Product Link Wiring 364-0323-02 And Engine 415-5567 (For Serial Numbers XAA10001-UP YCA10001-UP NDJ1-UP RBW1-UP)
UENR6417-04: 325F Excavator Electrical System (Interactive), Chassis 452-0662-05, Cab 377-8276-08, CGC Wiring 462-4316, Product Link 364-0323-02, 455-6942 (For Serial Numbers YCA1-10000 XAA1-10000)
UENR6418-04: 325F Excavator Hydraulic System (Interactive), Main Schematic 452-0121HE00
UENR6419-01: 325F Excavator Hydraulic System Attachment – Combined Function – Electric Control (Interactive), 452-0126
UENR6422-01: 325F Excavator Hydraulic System (Interactive) Medium Pressure – Electric Control, 452-0129
UENR6423-00: 325F Excavator Hydraulic System – Attachment – Quick Coupler (Interactive) 452-0131
UENR6424-00: 325F Excavator Hydraulic System – Attachment – Alternate Control Pattern (Two-Way) (Interactive) 452-0134
UENR6425-01: 325F Excavator Hydraulic System (Interactive), Boom Lowering Control Valve 452-0136
UENR6426-01: 325F Excavator Hydraulic System Stick Lowering Control Valve (Interactive), 452-0137
UENR6428-01: 325F Excavator Hydraulic System – Universal Quick Coupler (Interactive), 452-0132
UENR7480-01: 325F Excavator Hydraulic System – Attachment (Third Pedal) (Interactive), 479-2112
UENR8048-00: 325F Excavator Hydraulic System – Shovel Crane (Interactive), 510-4414
UENR8093-02: 325F Excavator Hydraulic System (Interactive)(Function Isolation) ,538-2242-00 (For Serial Numbers RBW1-20241 NDJ1-20368)
