Name: CAT Forest Machine 538 (LL) FM538 (LL) Hydraulic Schematic M0113207-02 2023
SKU: 668280
Availability: InStock

CAT Forest Machine 538 (LL) FM538 (LL) Hydraulic Schematic M0113207 02 2023 (1)

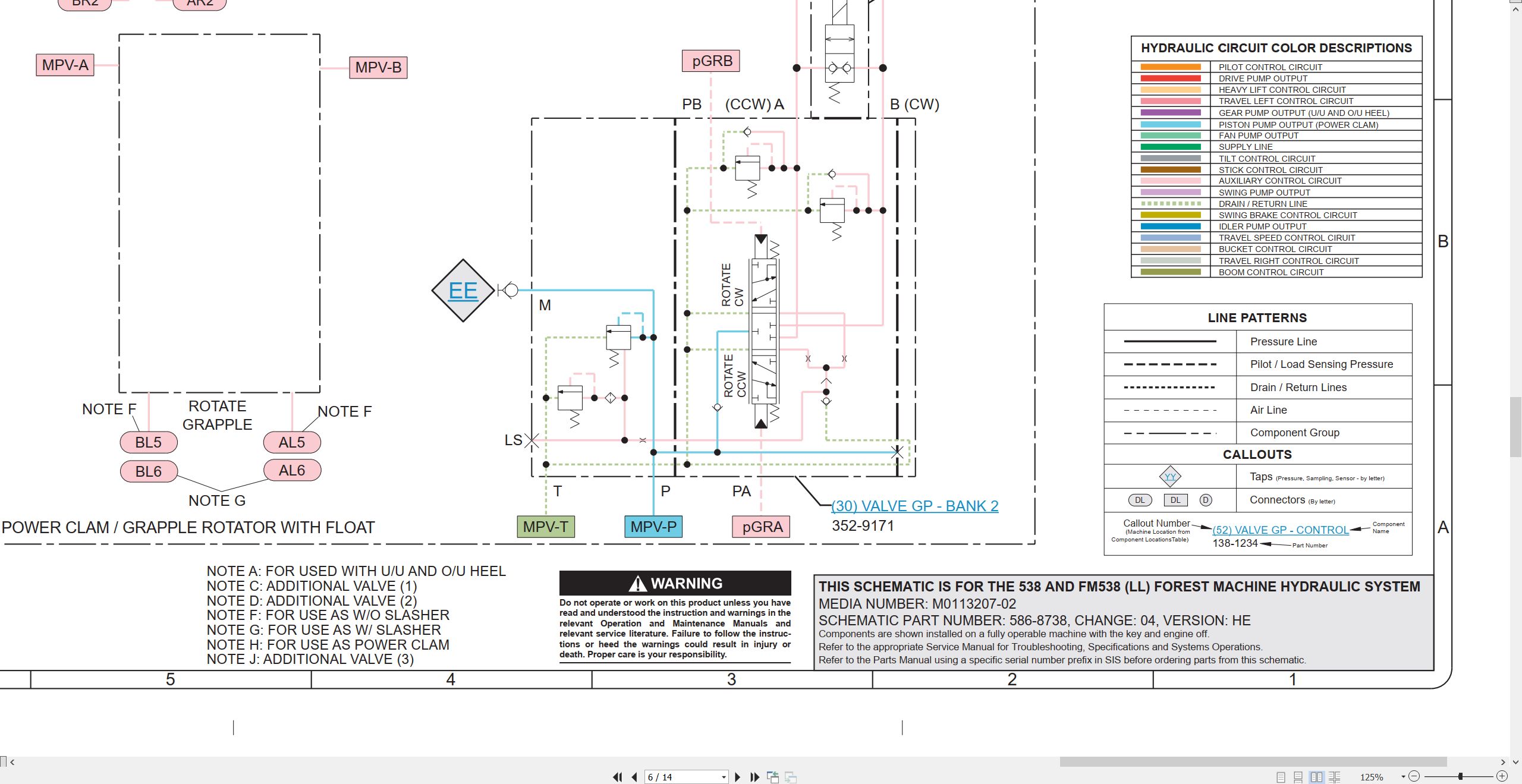

CAT Forest Machine 538 (LL) FM538 (LL) Hydraulic Schematic M0113207 02 2023 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Forest Machine 538 (LL) FM538 (LL) Hydraulic Schematic M0113207-02 2023

Size: 2.25 MB

Format: PDF

Language: English

Brand: CaterpiLLar

Type of Machine: Forest Machine

Type of Manual: Hydraulic Schematic

Model: CAT 538 (LL) FM538 (LL) Forest Machine

Number of Pages: 14 Pages

Parts Number: M0113207-02

Publication Date: 2023

20 USD

Tag: Caterpillar Schematics

Description

Description

Contents:
Features
Cover Page
Information
Component Location
Tap Location
Schematic
Function Isolation Tools
Grids On/Off
ALL Circuits Off
ALL Circuits On
Pilot Control Circuit (Orange 021)
Drive Pump Output (Red 032)
Heavy Lift Control Circuit (Lt Orange 141)
Travel Left Control Circuit (Dk Pink 190)
Gear Pump Output (Dk Purple 258)
Piston Pump Output (Lt Blue 305)
Fan Pump Output (Med Green 346)
Supply Line (Dk Green 347)
Tilt Control Circuit (Dk Gray 430)
Stick Control Circuit (Brown 464)
Auxiliary Control Circuit (Lt Pink 509)
Swing Pump Output (Lt Purple 522)
Drain/Return Line (577 (Lt Green))
Swing Brake Control Circuit (Dk YeLLow 613)
Idler Pump Output (Blue 640)
Travel Speed Control Circuit (Blue Gray 651)
Bucket Control Circuit (Tan 4665)
Travel Right Control Circuit (Lt Gray 5655)
Boom Control Circuit (Olive Green 5767)
Machine Views
Front Linkage
Machine – Front Left
Machine – Right Side
Machine – Top Left
Main Control Valve – Front
Main Control Valve – Rear
Pump View – U/U and O/U Heel
Pump View – Power Clam
