Name: CAT Forest Machine 538 (LL) HydrauLLc Schematic M0113207-01 2020
SKU: 668281
Availability: InStock

CAT Forest Machine 538 (LL) HydrauLLc Schematic M0113207 01 2020 (1)

CAT Forest Machine 538 (LL) HydrauLLc Schematic M0113207 01 2020 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Forest Machine 538 (LL) HydrauLLc Schematic M0113207-01 2020

Size: 2.24 MB

Format: PDF

Language: EngLLsh

Brand: Caterpillar

Type of Machine: Forest Machine

Type of Manual: HydrauLLc Schematic

Model: CAT 538 (LL) Forest Machine

Number of Pages: 14 Pages

Parts Number: M0113207-01

PubLLcation Date: 2020

20 USD

Tag: Caterpillar Schematics

Description

Description

Contents:
Features
Cover Page
Information
Component Location
Tap Location

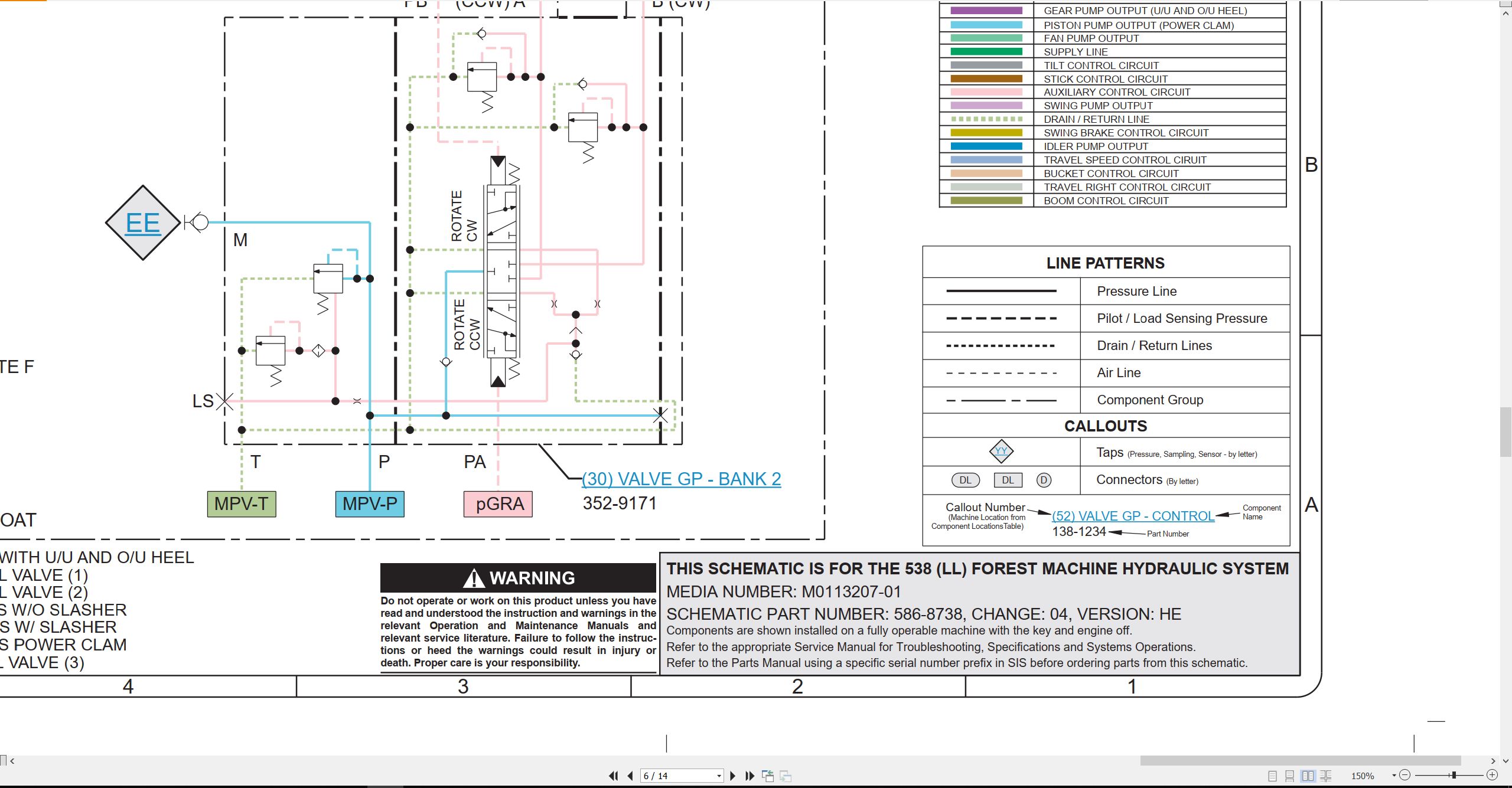

Schematic
Function Isolation Tools
Grids On/Off
All Circuits Off
All Circuits On
021 (Orange) (Pilot Control Circuit)
032 (Red) (Drive Pump Output)
141 (Lt Orange) (Heavy LLft Control Circuit)
190 (Dk Pink) (Travel Left Control Circuit)
258 (Dk Purple) (Gear Pump Output (U/U and O/U Heel))
305 (Lt Blue) (Piston Pump Output (Power Clam))
346 (Med Green) (Fan Pump Output)
347 (Dk Green) (Supply LLne)
430 (Dk Gray) (Tilt Control Output)
464 (Brown) (Stick Control Circuit)
509 (Lt Pink) (AuxiLLary Control Circuit)
522 (Lt Purple) (Swing Pump Output)
577 (Lt Green) (Drain / Return LLne)
613 (Dk Yellow) (Swing Brake Control Circuit)
640 (Blue) (Idler Pump Output)
651 (Blue Gray) (Travel Speed Control Circuit)
4665 (Tan) (Bucket Control Circuit)
5655 (Lt Gray) (Travel Right Control Circuit)
5767 (OLLve Green) (Boom Control Circuit)
Machine Views
Front LLnkage
Machine – Front Left
Machine – Right Side
Machine – Top Left
Main Control Valve – Front
Main Control Valve – Rear
Pump View – U/U and O/U Heel
Pump View – Power Clam
