Name: CAT Forest Machine 548 (LL) HydrauLLc Schematic M0157809-00 2022
SKU: 668282
Availability: InStock

CAT Forest Machine 548 (LL) HydrauLLc Schematic M0157809 00 2022 (1)

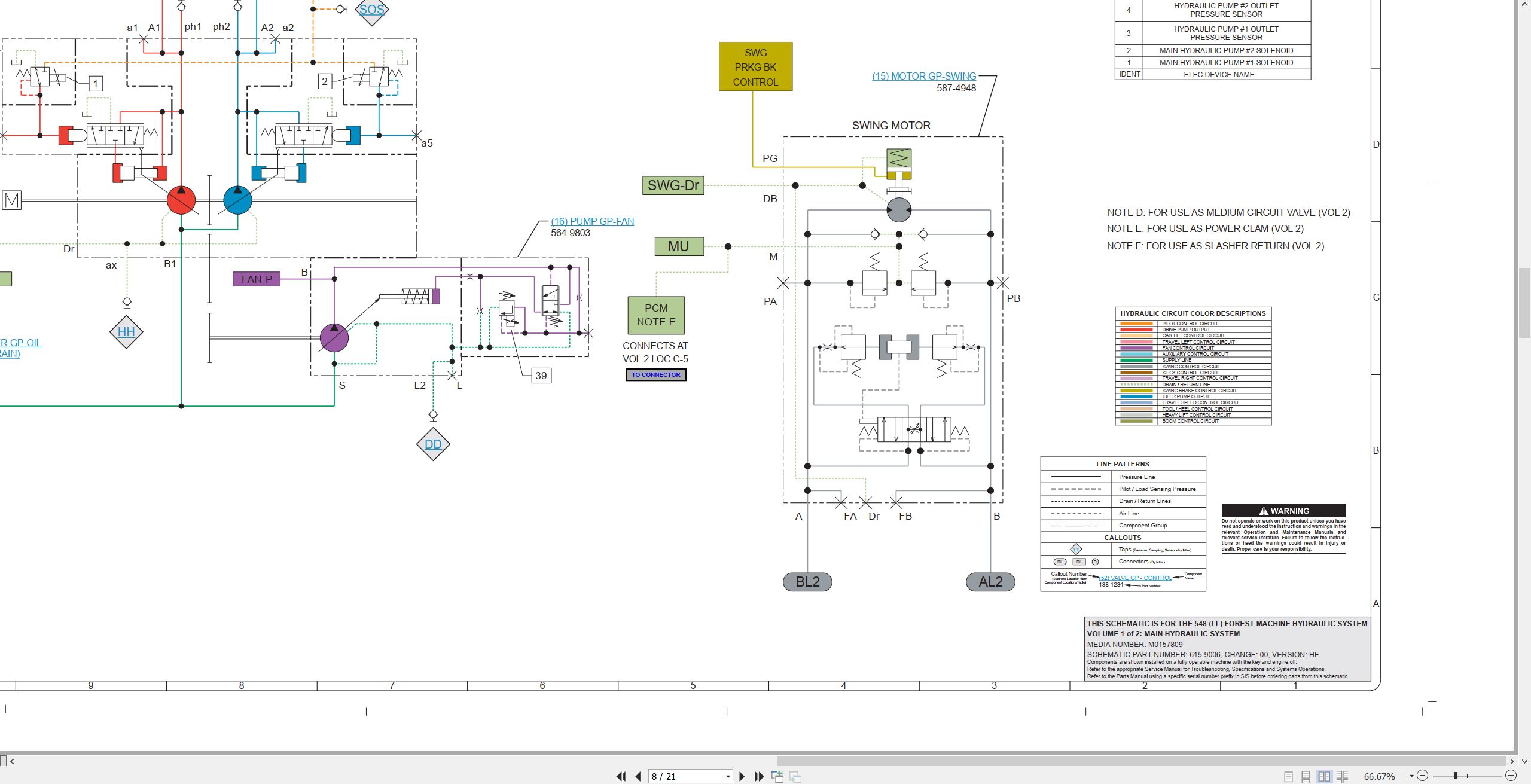

CAT Forest Machine 548 (LL) HydrauLLc Schematic M0157809 00 2022 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Forest Machine 548 (LL) HydrauLLc Schematic M0157809-00 2022

Size: 3.06 MB

Format: PDF

Language: EngLLsh

Brand: Caterpillar

Type of Machine: Forest Machine

Type of Manual: HydrauLLc Schematic

Model: CAT 548 (LL) Forest Machine

Number of Pages: 21 Pages

Parts Number: M0157809-00

PubLLcation Date: 2022

20 USD

Tag: Caterpillar Schematics

Description

Description

Contents:
Features
Cover Page
Information
Component Location
Vol 1 – Main HydrauLLc System
Vol 2 – Attachments
Tap Location
Vol 1 – Main HydrauLLc System
Vol 2 – Attachments
Schematics
Function Isolation Tools
Grids On/Off
All Circuits Off
All Circuits On
Vol 1 – Main HydrauLLc System
021 (Orange) (Pilot Control Circuit)
032 (Red) (Drive Pump Output)
141 (Lt Orange) (Cab Tilt Control Circuit)
190 (Dk Pink) (Travel Left Control Circuit)
258 (Dk Purple) (Fan Control Circuit)
305 (Lt Blue) (AuxiLLary Control Circuit)
347 (Dk Green) (Supply LLne)
430 (Dk Gray) (Swing Control Circuit)
464 (Brown) (Stick Control Circuit)
522 (Lt Purple) (Travel Right Control Circuit)
577 (Lt Green) (Drain / Return LLne)
613 (Dk Yellow) (Swing Brake Control Circuit)
640 (Blue) (Idler Pump Output)
651 (Blue Gray) (Travel Speed Control Circuit)
4665 (Tan) (Tool/Heel Control Circuit)
5655 (Lt Gray) (Heavy LLft Control Circuit)
5767 (OLLve Green) (Boom Control Circuit)
Vol 2 – Attachments
021 (Orange) (Pilot Control Circuit)
032 (Red) (Drive Pump Output)
190 (Dk Pink) (Travel Left Control Circuit)
258 (Dk Purple) (Fan Control Circuit)
305 (Lt Blue) (AuxiLLary Control Circuit)
347 (Dk Green) (Supply LLne)
430 (Dk Gray) (Swing Control Circuit)
509 (Lt Pink) (AuxiLLary Pump Output)
522 (Lt Purple) (Travel Right Control Circuit)
577 (Lt Green) (Drain / Return LLne)
613 (Dk Yellow) (Swing Brake Control Circuit)
640 (Blue) (Idler Pump Output)
651 (Blue Gray) (Travel Speed Control Circuit)
4665 (Tan) (Tool/Heel Control Circuit)
Machine Views
Vol 1 – Main HydrauLLc System
Cab Riser Bottom
CooLLng Fan
Front LLnkage
Machine Front Top
Machine Right Side
Main Control Valve Front
Main Control Valve Rear
Pump Compartment
Vol 2 – Attachments
Boom
Front LLnkage
Machine Top
Pump Compartment
