CAT Load Haul Dump R1700G Electrical Hydraulic Schematic

CAT Load Haul Dump R1700G Electrical Hydraulic Schematic (1)
CAT Load Haul Dump R1700G Electrical Hydraulic Schematic (2)
CAT Load Haul Dump R1700G Electrical Hydraulic Schematic (3)
CAT Load Haul Dump R1700G Electrical Hydraulic Schematic (1)
CAT Load Haul Dump R1700G Electrical Hydraulic Schematic (2)
CAT Load Haul Dump R1700G Electrical Hydraulic Schematic (3)
✓

Expert Support

✓

Full Speed

✓

100% Working

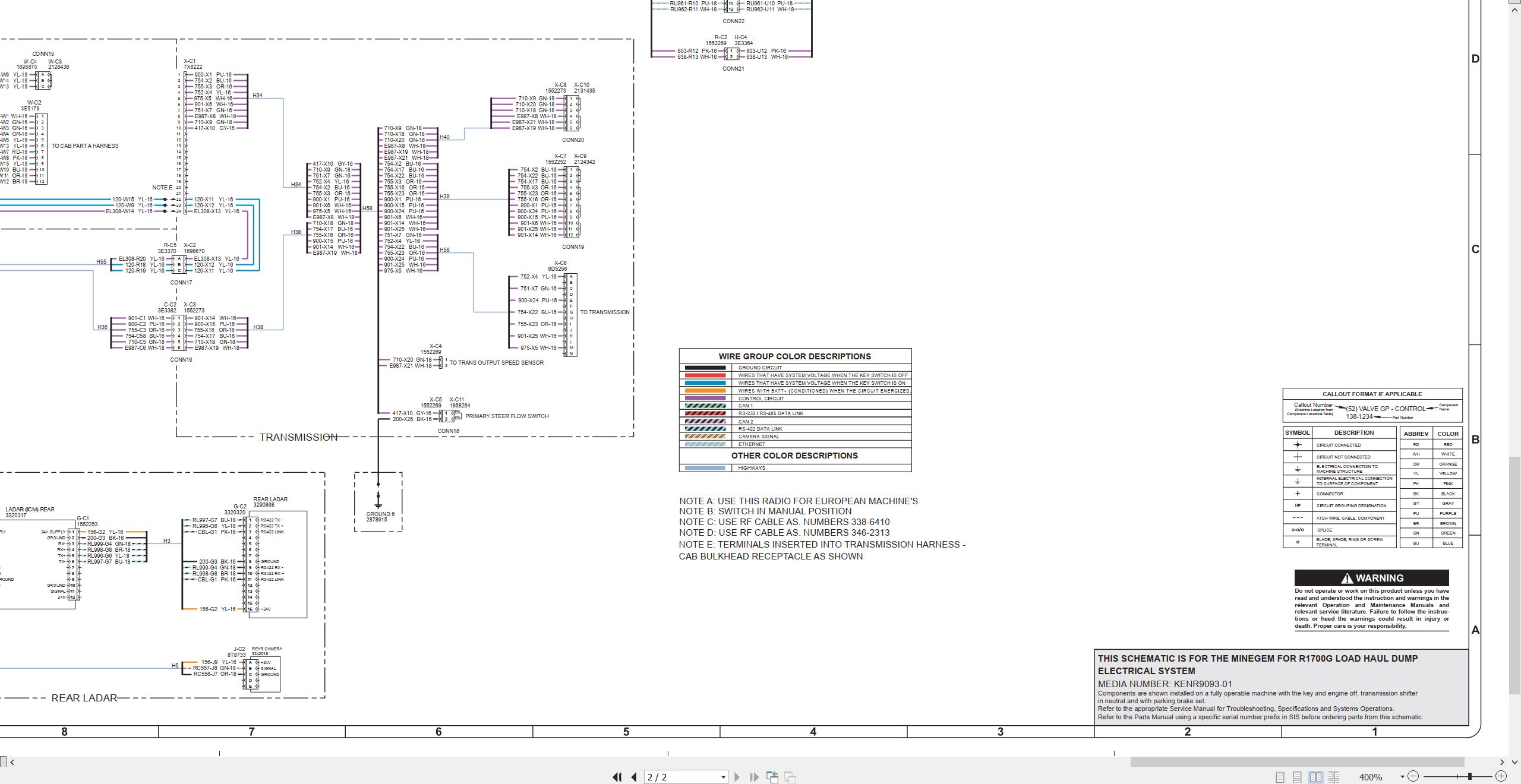

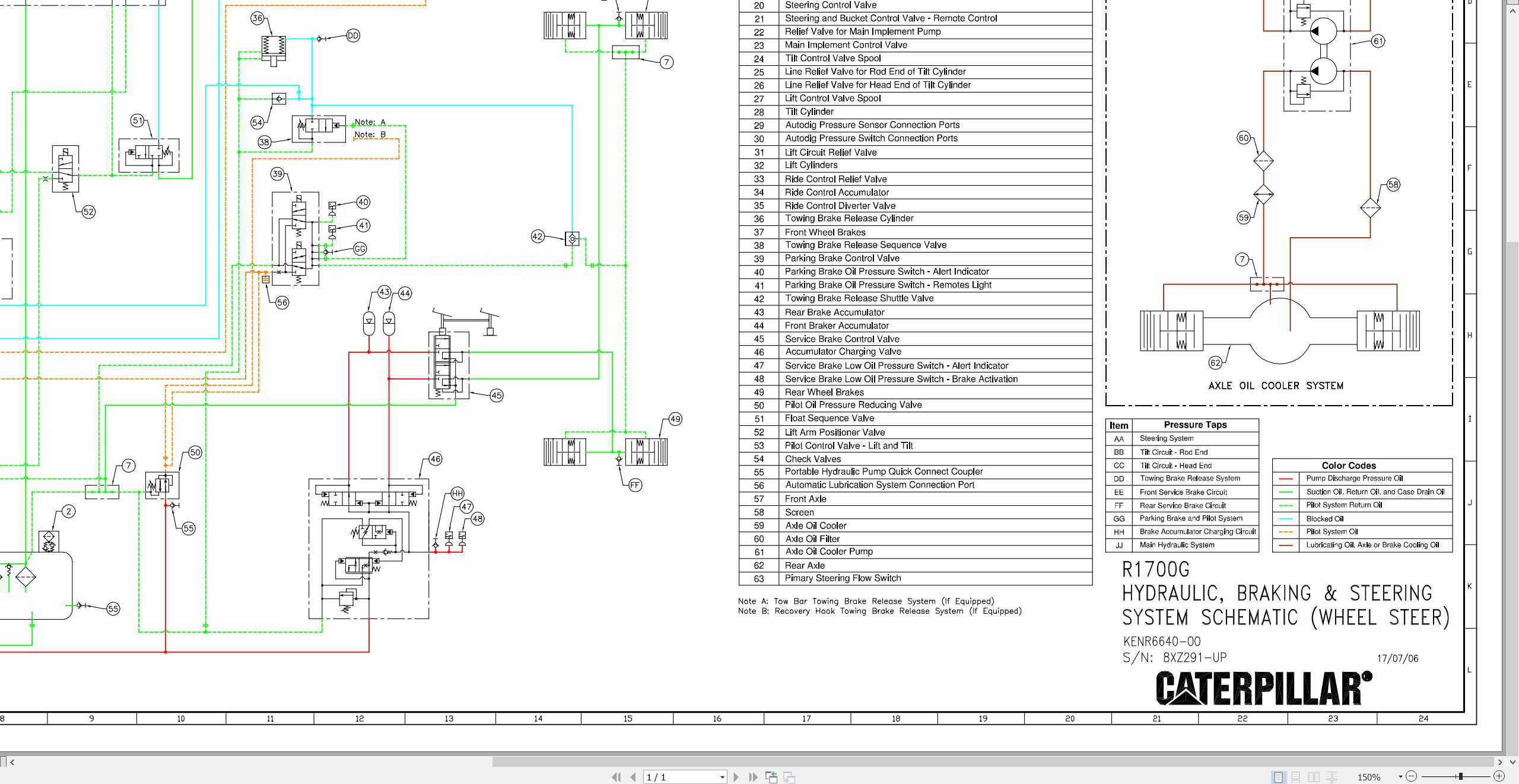

CAT Load Haul Dump R1700G Electrical Hydraulic Schematic

Size: 25.36 MB
Format: PDF
Language: English
Brand: Caterpillar
Type of Machine: Load Haul Dump
Type of Manual: Electrical Schematic, Hydraulic Schematic
Model: CAT R1700G Load Haul Dump

40 USD

Tag:
  • Description

Description

List of Files:
KENR6267-02: R1700G Load Haul Dump Hydraulic, Braking And Steering System Schematic (Wheel Steering) SBR1-590
KENR6640-00: R1700G Load Haul Dump Hydraulic, Braking And Steering System Schematic (Wheel Steering)
KENR6641-00: R1700G Load Haul Dump Hydraulic, Braking And Steering System Schematic (Stic Steering)
KENR8516-00: R1700G Load Haul Dump Hydraulic, Braking And Steering System Schematic (Stic-Steering) SBR591-UP
KENR8517-00: R1700G Load Haul Dump Hydraulic, Braking And Steering System Schematic (Wheel Steering) SBR591-UP
KENR9093-01: MINEGEM for R1700G Load Haul Dump Electrical System , (For Serial Numbers 8XZ1-UP MXX1-UP)
KENR9093-02: MINEGEM for R1700G Load Haul Dump Electrical System , (For Serial Numbers 8XZ1-UP MXX1-UP)Wire Tracing
KENR9095-00: Minegem MXX1-UP Electrical System Schematic For R1700G SBR1-UP)
KENR9095-01: MINEGEM for R1700G Load Haul Dump Electrical System , (For Serial Numbers SBR1-UP MXX1-UP)
UENR1464-02: Command (MXY) Electrical System Schematic For R1700G(INTERACTIVE), (For Serial Numbers SBR932-1041)
UENR1464-03: Command For Underground (MXY) R1700G Load Haul Dump Electrical System(Interactive)(Function ISOLATION),370-2536-04 (For Serial Numbers SBR932-1041)
UENR2744-00: Electrical System Schematic for R1700G SBR887-931
UENR2745-00: Electrical System Schematic Supplement For R1700G SBR887-931
UENR2774-02: Command (MXY) Electrical System For R1700G (Interactive), (For Serial Numbers SBR1042-UP XBR1-UP)
UENR4848-01: R1700G XBR1-UP Load Haul Dump Hydraulic, Braking And Steering System Schematic (Stic-Steering)
UENR4849-00: Electrical System Schematic for R1700G XBR1-UP
UENR4849-01: R1700G Load Haul Dump Electrical System (Interactive) (Function Isolation) (For Serial Numbers XBR1-UP)
UENR6126-00: Electrical System Schematic For R1700G SBR1068-UP
UENR6127-00: Electrical System Schematic Supplement For R1700G SBR1068-UP
UENR8592-00: R1700G Command MXZ Lite Electrical System(Interactive)(Function Isolation) 578-9790-01, (For Serial Numbers XBR1-UP)
