Name: CAT Material Handler M325D Electrical Hydraulic Schematic
SKU: 668516
Availability: InStock

CAT Material Handler M325D Electrical Hydraulic Schematic (1)

CAT Material Handler M325D Electrical Hydraulic Schematic (2)

CAT Material Handler M325D Electrical Hydraulic Schematic (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Material Handler M325D Electrical Hydraulic Schematic

Size: 15.01 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Material Handler

Type of Manual: Electrical Schematic, Hydraulic Schematic

Model: CAT M325D Material Handler

40 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:

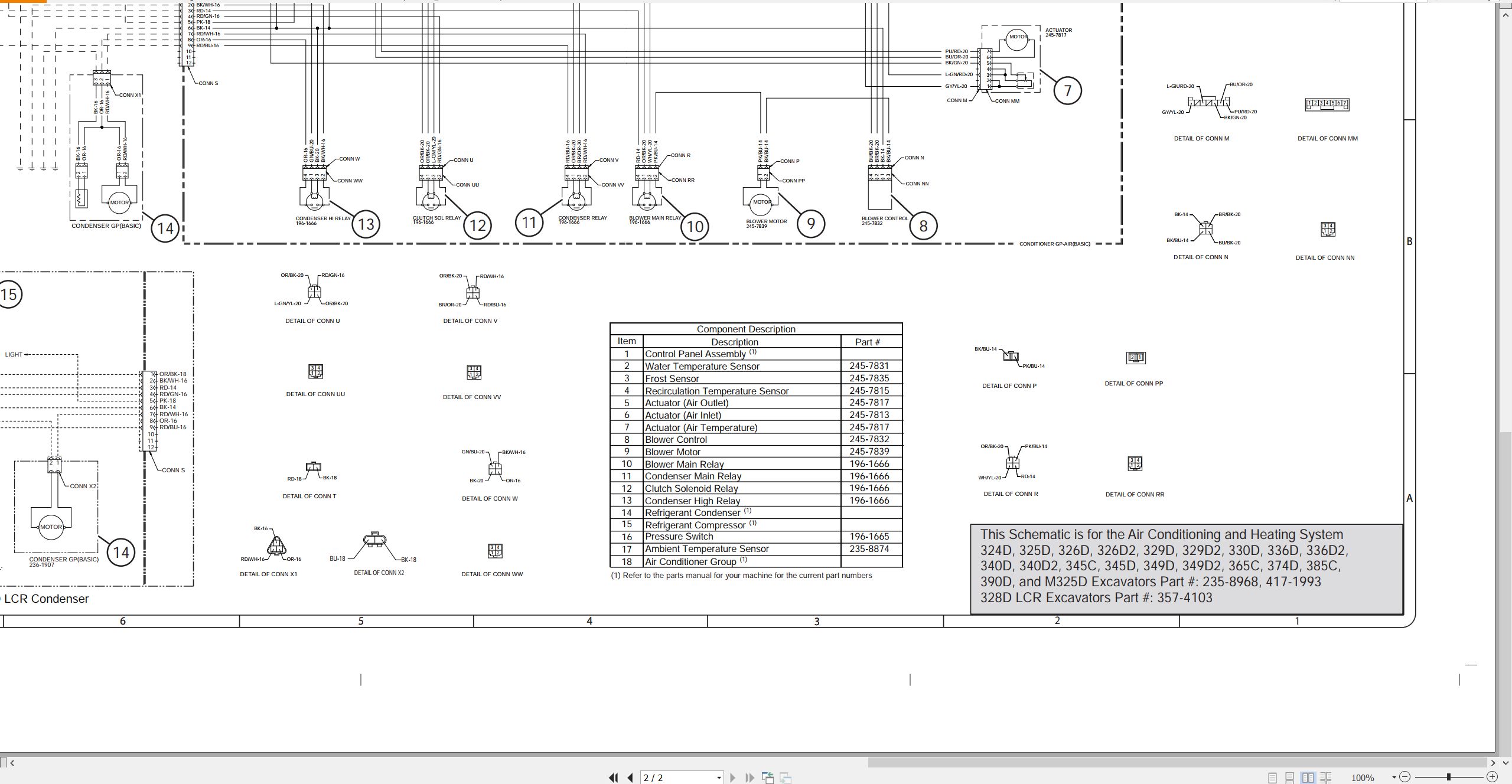

RENR7258-08: Air Conditioning Electrical System (324D,325D,326D,326D2,328D LCR,329D,329D2,330D,336D,336D2,340D,340D2,345C,345D,349D,349D2,365C,374D,385C,390D And M325D)
RENR7258-09: 324D, 325D, 326D, 326D2, 328D Lcr, 329D, 329D2, 330D, 336D, 336D2, 340D,340D2, 345C, 345D, 349D, 349D2, 365C, 374D, 385C, 390D And M325D Excavator Air Conditioning Electrical System (Interactive)(Function Isolation) ,336-6055-03 (For Serial Numbers BZN138-UP ZCA302-UP AYF245-UP KFM263-UP KRM220-UP RJP152-UP)

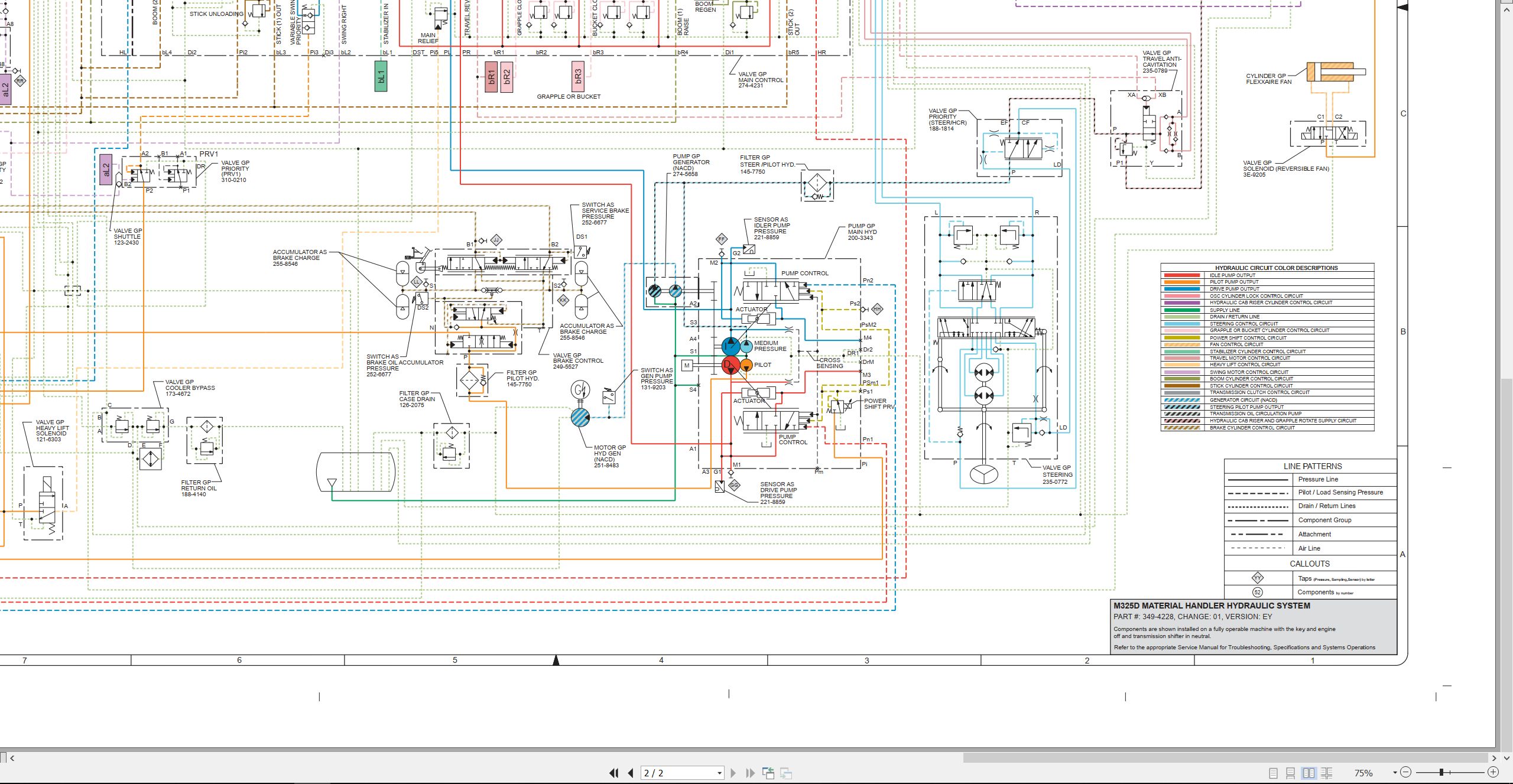

RENR8087-02: M325D Material Handler Hydraulic System, 349-4228-02 (For Serial Numbers EDF1-UP KGG1-UP KAY1-UP)
RENR9559-04: M325D Material Handler Electrical System, Cab 269-4248-01, Chassis 269-5426-01 (For Serial Numbers EDF1-245 KAY1-243 KGG1-224)
UENR1266-00: M325D Material Handler Electrical System 269-4248-03 (CAB)/269-5426-02 (Chassis)
UENR3191-02: M325D Material Handler Electrical System, Cab 269-4248-04, Chassis 269-5426-02 (For Serial Numbers EDF287-1999 KGG254-1999 KAY264-1999)
UENR3192-04: M325D Material Handler Electrical System (Interactive), Cab 269-4248-06, Chassis 351-2032, Engine Wiring 330-9232-02 And Injector 525-8476 (For Serial Numbers KAY2000-UP EDF2000-UP KGG2000-UP)
UENR6652-00: M325D Material Handler Hydraulic System 349-4228-01
UENR6653-02: M325D Material Handler Electrical System (Interactive), Cab 269-4248-06, Chassis And Engine 351-2032
