CAT Material Handler MH3022 Electrical Hydraulic Schematic

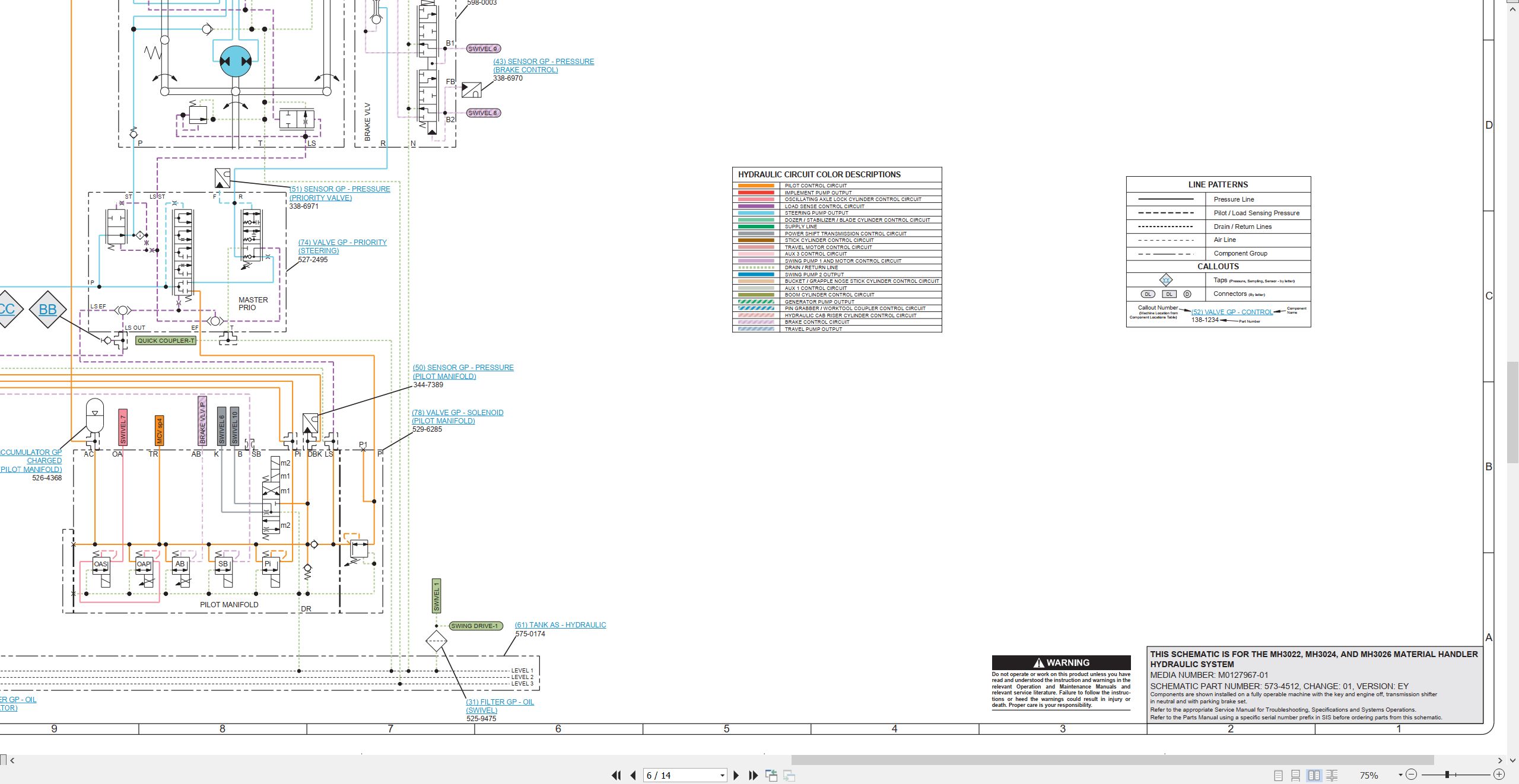

CAT Material Handler MH3022 Electrical Hydraulic Schematic (1)

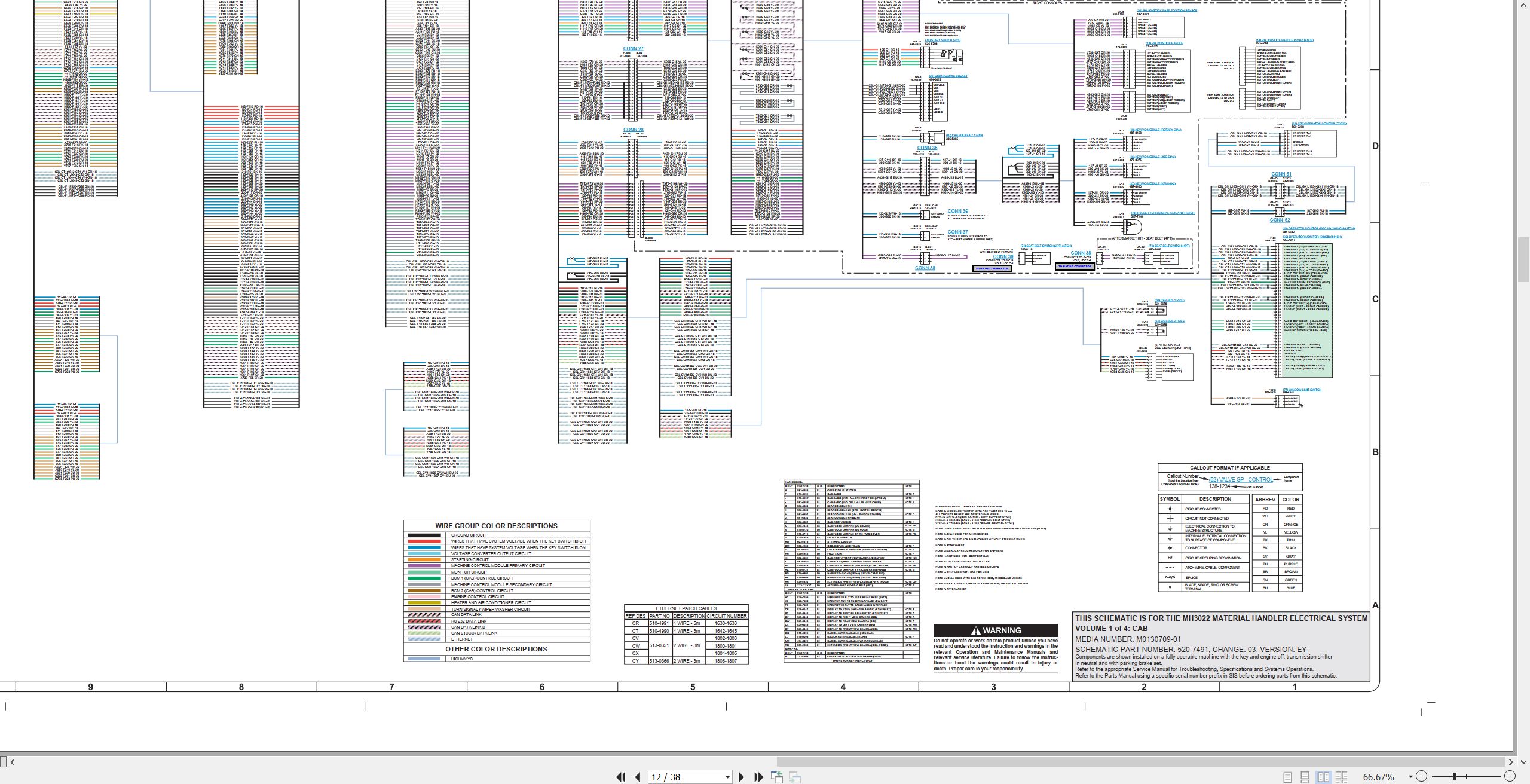

CAT Material Handler MH3022 Electrical Hydraulic Schematic (2)
CAT Material Handler MH3022 Electrical Hydraulic Schematic (3)
CAT Material Handler MH3022 Electrical Hydraulic Schematic (1)
CAT Material Handler MH3022 Electrical Hydraulic Schematic (2)
CAT Material Handler MH3022 Electrical Hydraulic Schematic (3)
✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Material Handler MH3022 Electrical Hydraulic Schematic

Size: 41.14 MB
Format: PDF
Language: English
Brand: Caterpillar
Type of Machine: Material Handler
Type of Manual: Electrical Schematic, Hydraulic Schematic
Model: CAT MH3022 Material Handler

40 USD

Tag:
  • Description

Description

List of Files:
M0127967-00: MH3022, MH3024, And MH3026 Material Handler Hydraulic System, 573-4512-01(FOR Serial Numbers KH41-UP KA41-UP KE81-UP KH21-UP)
M0127967-01: MH3022, MH3024, And MH3026 Material Handler Hydraulic System (Interactive)(Function Isolation), 573-4512-01(FOR Serial Numbers KH41-UP KA41-UP KE81-UP KH21-UP)
M0127967-03: MH3022, MH3024, and MH3026 Material Handler Hydraulic System (Interactive)(Function Isolation),573-4512-02 (For Serial Numbers KH21-UP KE81-UP KA41-UP KH41-UP)
M0130709-00: MH3022 Material Handler Electrical System, Cab WIRING-520-7491-02, Cab RISER-593-2227-01, Chassis WIRING-572-5637-01, ENGINE-551-3188-00 (For Serial Numbers KH21-UP)
M0130709-01: MH3022 Material Handler Electrical System (Interactive) (Function Isolation), Cab WIRING-520-7491-03, Cab RISER-593-2227-02, Chassis WIRING-572-5637-02, ENGINE-551-3188-00 (For Serial Numbers KH21-30000)
M0130709-02: MH3022 Material Handler Electrical System(Interactive)(Function Isolation), CAB-520-7491-03, Cab RISER-593-2227-02, Chassis WIRING-572-5637-02, ENGINE-551-3188-00, (For Serial Numbers KH21-20070 KH220128 KH220127 KH220118 KH220102 KH220098 KH220094-20096 KH220086 KH220084 KH220082 KH220081 KH220078 KH220076 KH220072-20074)
M0158485-00: MH3022 Material Handler Electrical System Cab WIRING-520-7491-04, Cab RISER-593-2227-03, Chassis WIRING-572-5637-03, ENGINE-551-3188-00, (For Serial Numbers KH230001-UP)
M0158485-01: MH3022 Material Handler Electrical System Cab WIRING-520-7491-04, Cab RISER-593-2227-03, Chassis WIRING-572-5637-04, ENGINE-551-3188-00, (For Serial Numbers KH230001-UP)
M0164671-00: MH3022 Material Handler Electrical System Cab WIRING-520-7491-04, Cab RISER-593-2227-02, Chassis WIRING-572-5637-02, ENGINE-551-3188-00, (For Serial Numbers KH220071 KH220075 KH220129-30000 KH220119-20126 KH220103-20117 KH220099-20101 KH220097 KH220087-20093 KH220085 KH220083 KH220080 KH220079 KH220077)
UENR5522-04: MH3022, MH3024, And MH3026,WHEELED Material Handler Hydraulic System, (Interactive), 449-8876-00
UENR6893-02: MH3022, MH3024, And MH3026 Wheeled Material Handler Electrical System (Interactive), Cab And Riser 489-3816, Chassis 489-3817, Engine 375-7821-01 And Def 491-6343
UENR6893-03: MH3022, MH3024, And MH3026 Material Handler Electrical System (Interactive)(Function Isolation), Cab RISER-489-3816-00,CHASSIS-489-3817-00,ENGINE-375-7821-01 (For Serial Numbers FB91-UP FB71-UP FB51-UP FB31-UP)
UENR7851-02: MH3022 And MH3024 Material Handler M318F, M320F And M322F Wheeled Excavator Hydraulic System (Interactive), 518-5386
UENR7851-03: MH3022 and MH3024 Material Handler M318F, M320F, and M322F Wheeled Excavator Hydraulic System (Interactive)(Function Isolation) 518-5386-00, (For Serial Numbers FB31-UP FME1-UP FBW1-UP FB21-UP FB81-UP FB51-UP)
