CAT Motor Grader 140H Electrical Hydraulic Schematic

CAT Motor Grader 140H Electrical Hydraulic Schematic (1)
CAT Motor Grader 140H Electrical Hydraulic Schematic (2)
CAT Motor Grader 140H Electrical Hydraulic Schematic (3)
CAT Motor Grader 140H Electrical Hydraulic Schematic (1)
CAT Motor Grader 140H Electrical Hydraulic Schematic (2)
CAT Motor Grader 140H Electrical Hydraulic Schematic (3)
✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Motor Grader 140H Electrical Hydraulic Schematic

Size: 20.71 MB
Format: PDF
Language: English
Brand: Caterpillar
Type of Machine: Motor Grader
Type of Manual: Electrical Schematic, Hydraulic Schematic
Model: CAT 140H Motor Grader

40 USD

Tag:
  • Description

Description

List of Files:

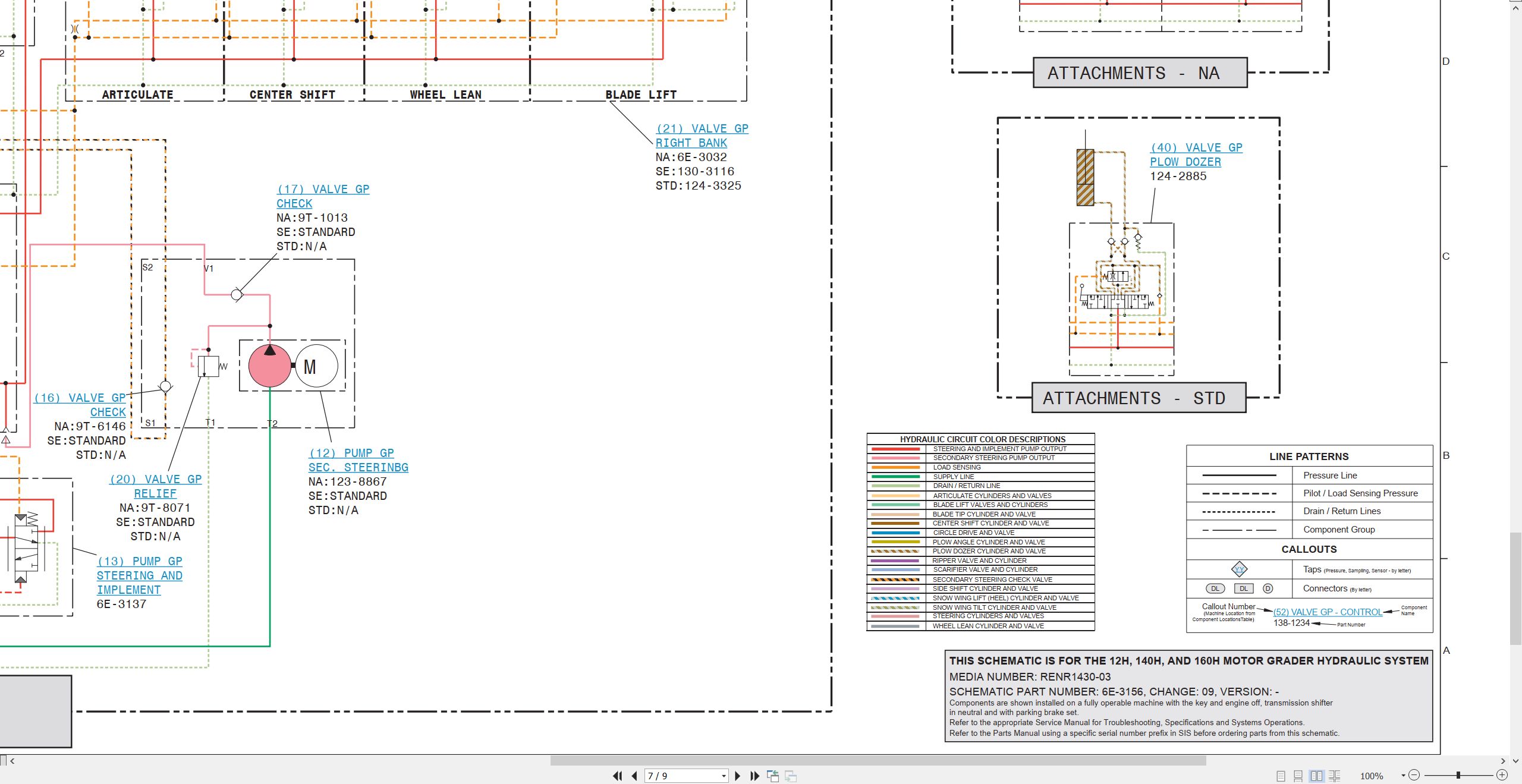

RENR1430-03: 12H, 140H And 160H Motor Grader Hydraulic System (Interactive), 6E-3156-09
RENR1434-02: 12H, 140H, And 160H Motor Grader Na Version Electrical System (Interactive), 146-1836

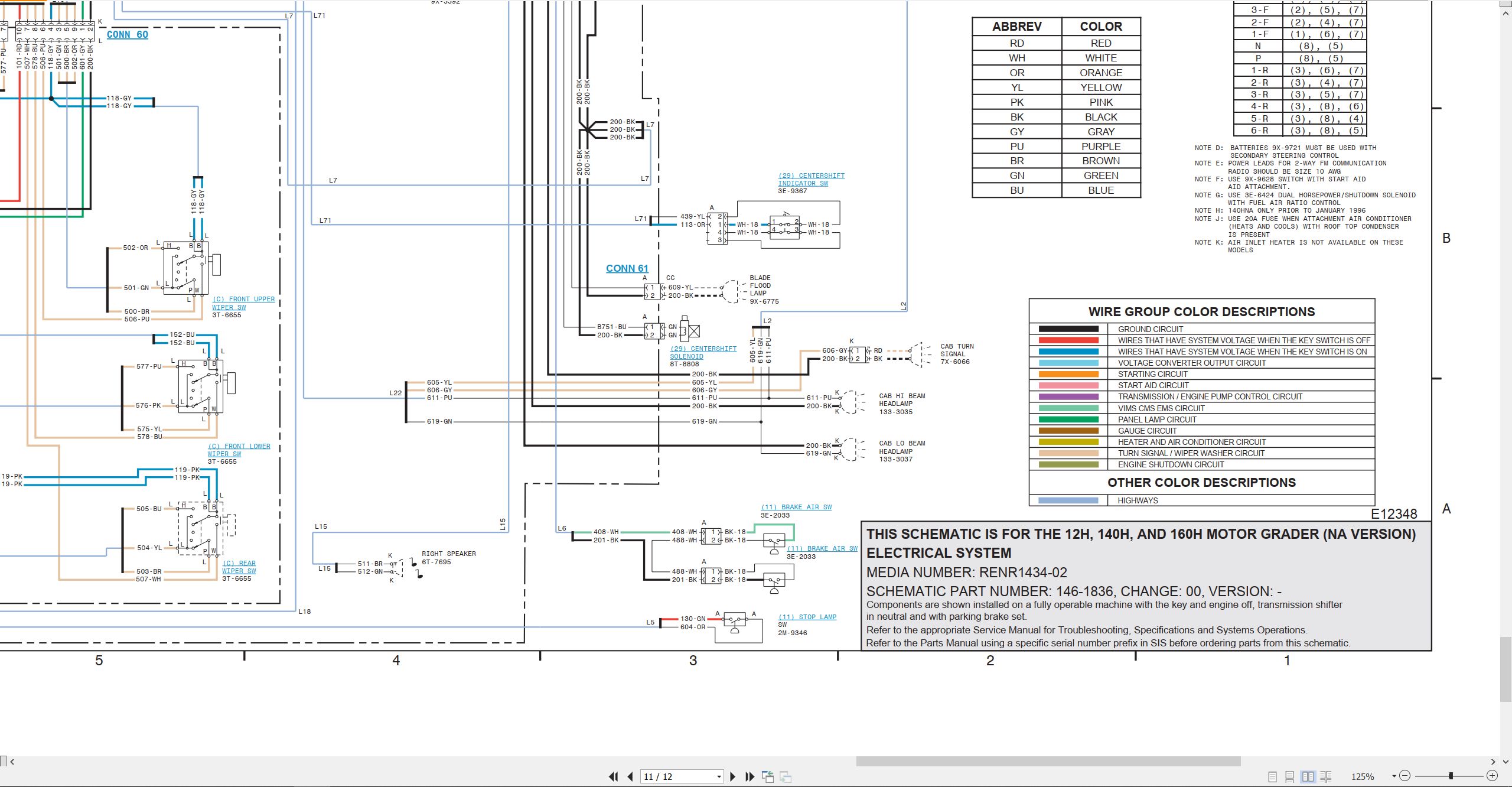

RENR1434-03: 12H, 140H, and 160H Motor Grader (NA Version) Electrical System 146-1836-00, (For Serial Numbers 4XM1-UP 2WR1-UP 8MN1-UP 2ZK1-UP 9ZN1-UP 9TN1-UP 9EJ1-UP 3GM1-UP)
RENR1435-00: Caterpillar 12H, 140H, 160H Motor Grader (Es Version) Electrical System
RENR1436-01: 12H, 140H, And 160H Motor Graders (Standard Version) Electrical System (Interactive)
RENR4114-04: 12H, 140H And 160H Motor Grader Hydraulic System (Interactive) 172-9349-06
RENR4128-03: 140H And 160H Motor Grader Electrical System, 172-9936 And 172-9935-01 (For Serial Numbers APM1-411, APM415-415, ASD1-224, And CCP1-192)
RENR9540-01: 12H, 140H And 160H Motor Grader Electrical System (For Serial Numbers 4ER1136-UP, 5HM3000-UP, 2FM909-UP) All Other Serial Numbers 1_UP) (Interactive)
RENR9556-02: 140H And 160H Motor Grader Electrical System, 172-9936-00, 172-9935-01 (For Serial Numbers CCA1-UP, APM412-414, APM416-UP 1261-UP, ASD225-UP, And CCP193-UP)
RENR9556-03: 140H And 160H Motor Grader Electrical System ,172-9936-00 (For Serial Numbers APM412-414 APM416-UP 1261-UP ASD225-UP CCP193-UP CCA1-UP)
SENR6985-01: Caterpillar 12H, 140H And 160H Motor Grader (ES Version) Electrical System
SENR8571-01: 12H, 140H And 160H Motor Grader Standard Version Hydraulic System (For Serial Numbers 2FM1-399, 5HM1-1149, 8JM1-279, 9JM1-349, 4ER1-499) All Other Serial Numbers 1-UP) (Interactive)
SENR9147-01: 12H, 140H And 160H Motor Graders (Na Version) Electrical System, 146-9688 (For Serial Numbers 4XM1396-UP, 8MN500-UP, 2WR642-UP, 2ZK2392-UP, 9TN400-UP, 9ZN205-UP, 9EJ510-UP And 3GM80-UP)
SENR9148-01: 12H, 140H, 160H Motor Grader (Es Version) Electrical System
SENR9149-03: 12H, 140H And 160H Motor Grader Standard Version Electrical System (For Serial Numbers 4ER500-1135, 8JM280-UP, 5HM1150-2999, 9JM350-UP, 2FM400-908) (Interactive) 145-5121-01
