CAT Off-Highway Truck 773E Electrical Hydraulic Schematic

Size: 32.68 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Off-Highway Truck

Type of Manual: Air System Schematic, Electrical Schematic, Hydraulic Schematic, Power Train System Schematic

Model: CAT 773E Off-Highway Truck

50 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:

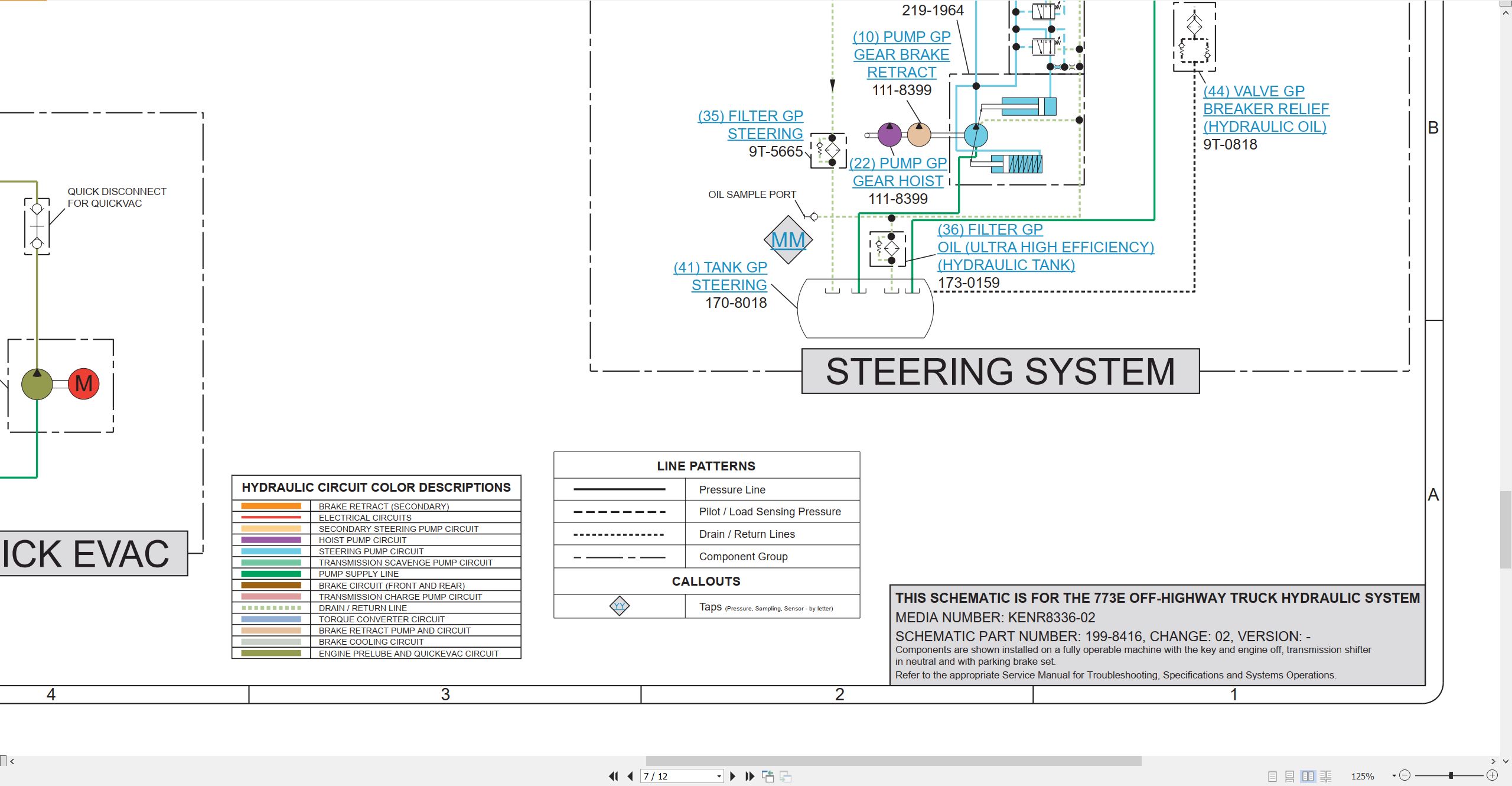

KENR8336-02: 773E Off-Highway Truck Hydraulic System (Interactive) 199-8416-02

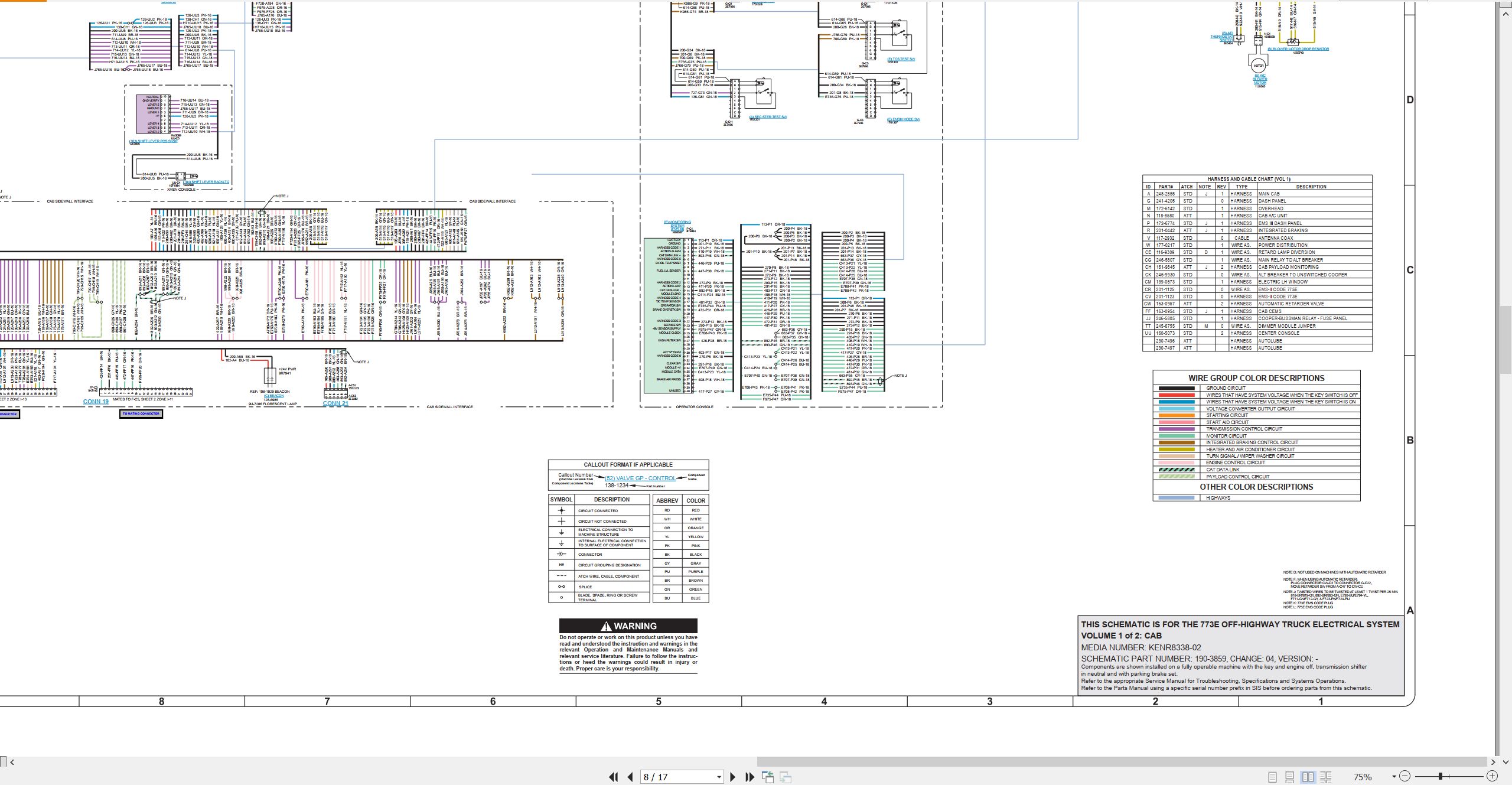

KENR8338-02: 773E Off-Highway Truck Electrical System (Interactive), Cab 190-3859-04, Engine And Chassis 190-3859-04(FOR Serial Numbers KEG1-UP ASK1-UP)
M0162201-00: 773 And 773E Off-Highway Truck Power Train System(Interactive)(Function Isolation), 478-7980-00, (For Serial Numbers DJS1-UP FKT1-UP PRB1-UP)
M0169277-00: 773E Off-Highway Truck NRIII Repower Electrical System, 653-8030-00 (For Serial Numbers ASK1-UP)
RENR6506-00: 773E And 775E Off-Highway Truck Hydraulic System (Interactive) (For Serial Numbers BDA259-UP, BEC202-UP)
RENR6517-01: 773E And 775E Off-Highway Truck Hydraulic System (For Serial Numbers BDA1-258, BEC1-201)
RENR6518-04: 773E And 775E Off-Highway Truck Electrical System (Interactive), 190-3859-01(FOR Serial Numbers BDA1-258 BEC1-201)
RENR8394-04: 773E And 775E Off-Highway Truck Electrical System, Cab 190-3859-03, Chassis 190-3859-03 (For Serial Numbers BDA486-727 BEC309-467)
RENR9581-06: 773E And 775E Off-Highway Truck Electrical System (Interactive), 190-3859-02(FOR Serial Numbers BDA259-485 BEC202-308)
RENR9854-07: 773E And 775E Off-Highway Truck Electrical System (Interactive), Schematic Part Number 190-3859-04 (For Serial Numbers BEC468-UP BDA728-UP)
UENR2154-01: 773D, 773E, 775D, And 775E Off-Highway Truck Cat? Detect Object Detection Electrical System, 358-8392-01
UENR5423-01: 777D And 773E Off-Highway Truck Cat? Detect Object Detection Electrical System, 464-3566
UENR6746-00: 773E Off-Highway Truck Hydraulic System (Interactive) 462-2667-00 (For Serial Numbers PRB1-UP And DJS1-UP)
UENR6746-01: 773 And 773E Off-Highway Truck Hydraulic System(Interactive)(Function ISOLATION),462-2667-00 (For Serial Numbers PRB1-UP DJS1-UP FKT1-UP)
UENR6747-01: 773E Off-Highway Truck Electrical System (Interactive), Cab 465-6509-00, Chassis 474-4139-00, Engine 468-5123-01 (For Serial Numbers PRB1-UP DJS1-UP)
UENR6747-02: 773 And 773E Off-Highway Truck Electrical System(Interactive)(Function Isolation) , (For Serial Numbers DJS1-UP FKT1-UP PRB1-UP)

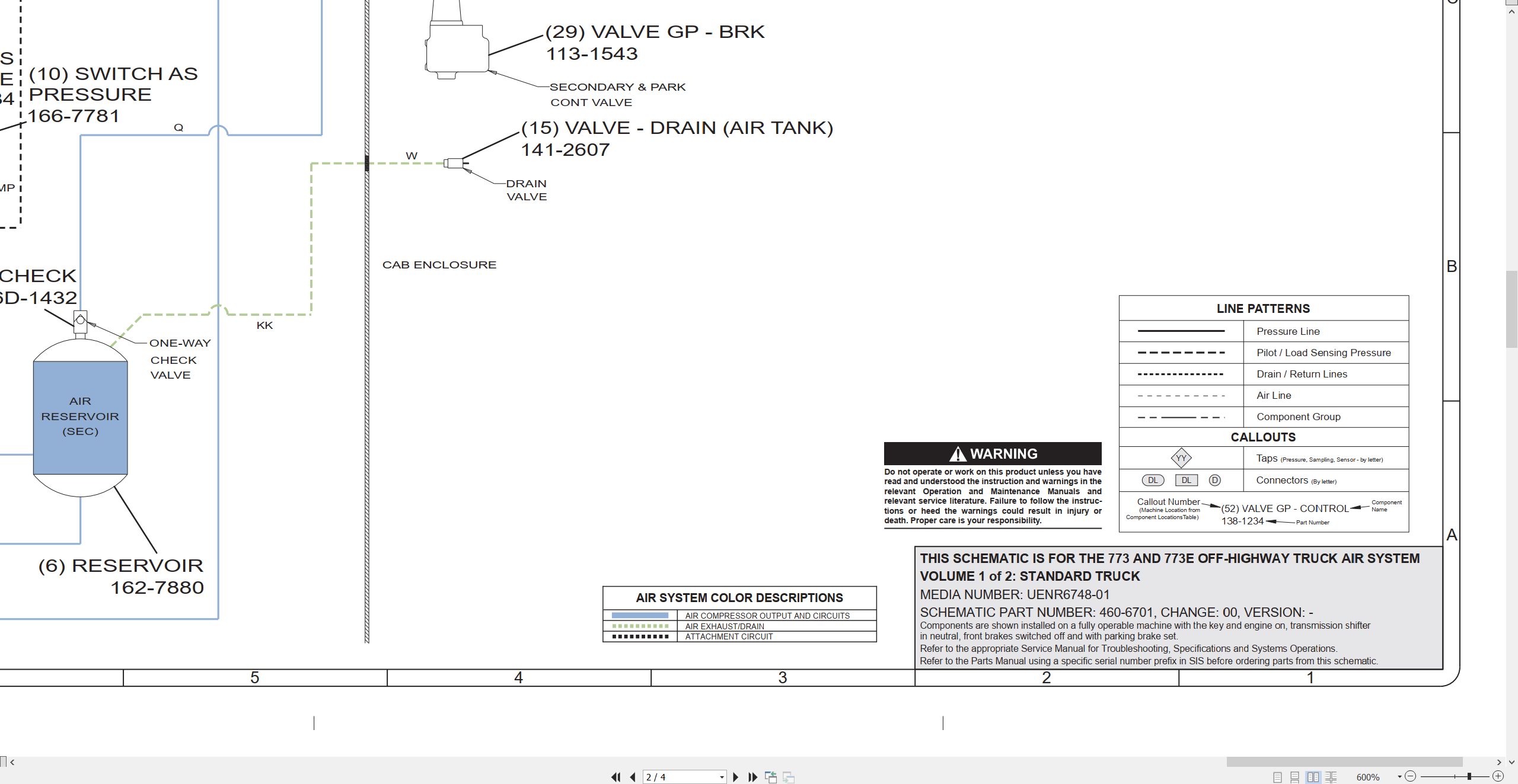

UENR6748-00: 773E Off-Highway Truck Air System 460-6701-00
UENR6748-01: 773 And 773E Off-Highway Truck Air System 460-6701-00, (For Serial Numbers DJS1-UP FKT1-UP PRB1-UP)
